Home > Products > New Products > 200mm double axial fan motor

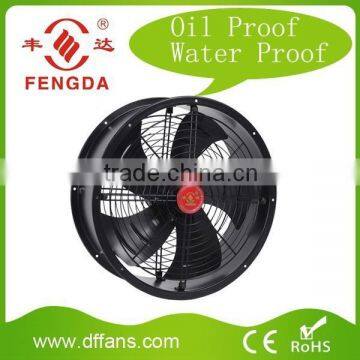

200mm double axial fan motor
- Ningbo/Shanghai
- T/T Credit Card
You May Like
Product Details
| Electric Current Type | AC | Mounting | Wall Fan | |
| Blade Material | Cast Iron | Brand Name | FENGDA | |
| Model Number | FZY-2E200 | Voltage | 220V | |
| Power | 65W | Air Volume | 1050m³/h | |
| Speed | 2100RPM | Certification | CCC, CE, CSA, GS, ROHS, UL | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Size:200mm to600mm available
2.low noise
3.1 year warranty
4.CCC,CE approved
Model
| Voltage V | Frequency Hz | Current A | Input Power W | Speed RPM | Air Flow m³/h | Capacitor uF | Noise dB(A) | Preesure Pa |
| FZY-2E200 | 220 | 50 | 0.29 | 65 | 2100 | 1050 | 2 | 65 | 90 |
| FZY-2D200 | 380 | 50 | 0.15 | 60 | 2150 | 1050 | / | 65 | 90 |
| FZY-4E200 | 220 | 50 | 0.24 | 55 | 1430 | 510 | 2 | 53 | 30 |
| FZY-4D200 | 380 | 50 | 0.16 | 60 | 1440 | 510 | / | 53 | 30 |
FZY-11 series external rotor motors have two kinds ,single phase asynchronous capacitor fan motor and three phases
asynchronous fan motor.The Voltage of single phase motor is 120V,60Hz,220-240V,50/60Hz.The Voltage of three phases motor is 380V,50Hz,or according to customer's requirements.
Fan diameter is from 200mm-900mm.
The using life is over 30000 hours.
The using ambient temperature is from -30℃~60 ℃
FENGDA was establish in 1990,covering an area of 17,000 square meters,more than 200 employes.We professionally manufacture various fans and motors,which widely used in Ventilation,air condittion,air condition,cooling and heating industry.
We have gotten CE,UL,CCC certificates and ISO9001 Quality Management System Certification.nd our products are exporting to Europe and America,Middle East,Russia etc.
We will quote once know model No. you want to order.
1. Q: Do you provide warranty for the goods?
A: Yes, we provide warranty for all the goods from us.
2. Q: Could FENGDA provide technology support?
A: We're in this field many years. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.
3. Q: Does FENGDA keep goods in stock or only trading?
A: We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.
4. Q: Could you fill the invoice for customs as our requirement?
A: Yes, if there's any requirement for it, please tell us. We'll do it.
