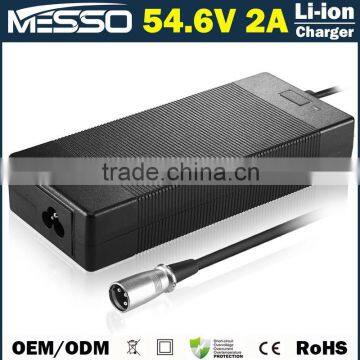

54.6V 2A Li-ion Battery Charger 100-240V 50-60Hz Charger 54.6V 2A Lithium Battery Charger

FOB Price

USD $1 - $12.6 / Piece

100 Pieces(Min.Order)

Supply Ability 500000 Piece / Pieces per Month
Port Shenzhen/Hongkong
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	MESSO	Model Number	MSO5462000C
Use	Standard Battery
Place of Origin	Guangdong, China

Product Description

ITEM NAME	54.6V 2A Lithium Battery Charger
Features: . 109.2W Lithium Battery Charger . Worldwide AC Input Voltage 100-240V . Output Voltage Range: 54.6V . Output Current Range: 2A . Red/Green Led Light Show . Short-Circuit/Overvoltage/Overcurrent Protection . Meet CE RoHS Safety Standard . Warranty: 1 years
INPUT
Input Voltage	85-264VAC
Input Frequency	47-60Hz
Input Current	1.5A Max at 110VAC
Inrush Current	40A Max at 230VAC
Earth Leakage Current	Class II
No Load Input Power	0.3W
OUTPUT
Output Voltage	54.6V 2A
Start Up Delay	1.3s Max
Start Up Rise Time	15ms Typical
Hold Up Time	10ms Min at full load 115VAC
Line Regulation	+/-1% Max
Load Regulation	+/-5% Max
Ripple Noise	1% Max
Overvoltage Protection	150% Of Nominal Output
Overcurrent Protection	150% Of Nominal Output
Short Circuit Protection	Trip And Restart
GENERAL
Isolation	3000VAC Input To Output
MTBF	50KHrs To MIL-HDBK-217F At 25OC
Operation Temperature	-10 To + 70 OC
Cooling	Natural Convection
Operating Humidity	5% To 90% RH,Non-Condensing
Storage Temperature	-40 To +90 OC
Shock	30g,Half Sine,6 Axes
Vibration	5-50Hz,Accelerated 7.35m/s
Altitude	3000m
EMC & SAFETY
Emissions	EN55022
Harmonic Currents	EN61000-3-2,Class A
Voltage Flicker	EN61000-3-3
ESD Immunity	EN61000-4-2
Radiated Immunity	EN61000-4-3
EFT/Burst	EN61000-4-4
Surge	EN61000-4-5
Conducted Immunity	EN61000-4-6
Magnetic Field	EN61000-4-8
Dips Interruptions	EN61000-4-11
Dimensions & Weight
Dimensions	6.77 in x 2.87 in x 1.26 in ( 17.2cm x 7.3cm x 3.2cm )
Box Size / PCS	8.27 in x 3.94 in x 2.36 in ( 21cm x 10cm x 6cm)
Carton Size / CTN	17.32 in x 16.54 in x 12.60 in (44cm x 42cm x 32cm)
Package	BOX+CARTON 40PCS/CTN
Packing List
1 x Paper Box 1 x Adapter
Terms of payment
1) T/T: Internet bank, telegraphic transfer 2) Western Union 3) Paypal 4) Ali Escow 5) Irrevocable L/C draft at sight
Shipping Methods
Express/Air transportation: DHL, FEDEX,USP, EMS, TNT, ARAMES / Sea Transportation / Land Transportation
