Home > Products > Mixed Flow Inline Fan > 150mm Plastic Inline Mixed Flow Extractor Fan

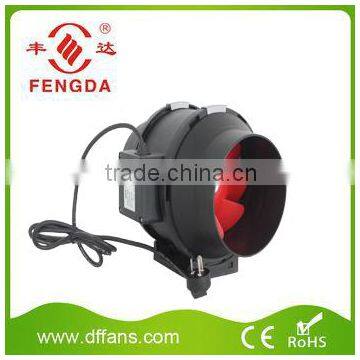

150mm Plastic Inline Mixed Flow Extractor Fan
- Ningbo/Shanghai
- T/T Credit Card
You May Like
Product Details
Electric Current Type | AC | Blade Material | Plastic | |
Mounting | Duct Fan | Place of Origin | Zhejiang, China | |
Brand Name | FENGDA | Model Number | GDFP150 | |
Power | 42-60w | Voltage | 110-240v | |
Air Volume | 530-669m³/h | Speed | 2050-2470Rpm | |
Certification | CCC, CE, CSA, GS, ROHS, UL | After-sales Service Provided | No overseas service provided |
Product Description
150mm Plastic Inline Mixed Flow Extractor Fan
1.The Voltage: 110-120V,60Hz or 220-240V,50Hz, according to customers' requirement.
2. Fan Diameter: 100mm-200mm.
3.Speed: We have Two-speed Switch,Three-speed Switch and Stepless Speed Switch.
4. Color: White and Black.
5. Operating temperture rage:-20℃~60℃
6.Long life with low energy consumption
Model | Voltage(V) | Frequency(Hz) | Gear | Current(A) | Power(W) | Speed(RPM) | Air Flow(m3/h) | Pressure(Pa) | Noise(dB) |
GDF150 (6'') | 220-240 | 50 | H | 0.22 | 50 | 2400 | 660 | 350 | 33 |
L | 0.19 | 42 | 2050 | 530 | 300 | 30 | |||
GDF150 | 110-120 | 60 | H | 0.51 | 60 | 2470 | 669 | 355 | 34 |
L | 0.37 | 45 | 2050 | 530 | 300 | 30 |
Single packing in one carton
FENGDA was established in 1990,covering an area of 17,000 square meters,more than 200 employs. We professionally
manufacture various fans and motors,which widely used in ventilation,air condition,cooling and heating industry.
We have strong technology,specialized production facilities and advanced inspection instruments,relying on professionally
R &D team,high efficiency production lines and scientific management ."Low noise,high airflow volume,stable running and long lifetime" to be our strongpoint. By national detection,the technical values of noise, volume, temperature rising balance,lifetime are better than other factories.
1. Warranty: 1 year warranty for all products.
2. Products Quality: 100% products inspection before delivery.
3. Just in time delivery: Normally, lead time is 30 days.
4. Customized Service: As we have our own molding department, customized service can be provided.
5. Prompt customers’ services: E-mail will be replied in 24 hours.
1. Q: Do you provide warranty for the goods?
A: Yes, we provide warranty for all the goods from us.
2. Q: Could FENGDA provide technology support?
A: We're in this field many years. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.
3. Q: Does FENGDA keep goods in stock or only trading?
A: We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.
4. Q: Could you fill the invoice for customs as our requirement?
A: Yes, if there's any requirement for it, please tell us. We'll do it.
