Home > Products > Solar Panel > Small Size Monocrystalline Epoxy Mini Solar Panel 12v

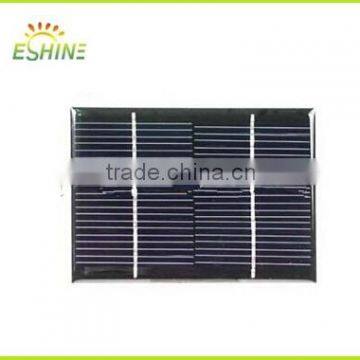

Small Size Monocrystalline Epoxy Mini Solar Panel 12v
Negotiable
/ Piece
1000 Pieces(Min.Order)
- 1000000 Piece / Pieces per Month
- NINGBO
- T/T Credit Card
You May Like
-
50X20MM 6V 16mA Best Solar Cell Price
-
136X110MM 2W 230mA 9v Mini Solar Panel
-
100W Solar Lighting System with Mobile Charger for Home Application TV laptop fans
-
50w solar lighting system for indoor for home for homeuse for household
-
80W Solar Lighting System with Mobile Charger for Home Application TV laptop fans
-
50-200W Portable Solar System,pedal power generator
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Epoxy solar | |
| Model Number | XRE-11180-12V80 | Material | Polycrystalline Silicon | |
| Size | 111X80 | Number of Cells | 24 | |
| Max. Power | 0.96W |
Product Description
Specifications
mini solar panel 12v1) Power: 0.96W
2) For solar lights, solar products use
3).CE certificate
4). 111X80mm
Epoxy solar panel :
Features
High Efficiency Miniature Solar Cell, with high-current output, ideal for use in low-voltage applications. Can be combined in series or parallel arrangements for increased voltage or current. Ideal for use with solar flashlight or other applications.
Electrical Characteristics
| Item No. | XRE-11180-12V80 |
| Optimum Operating Voltage (Vmp) | 12V |
| Optimum Operating Current (Imp) | 0.08A |
| Open Circuit Voltage (Voc) | 13.2V |
| Short Circuit Current (Isc) | 0.09A |
| Maximum Power at STC (Pmax) | 0.96W |
| Cell Efficiency | 16.5% |
| Operating Module Temperature | -40 °C to +85 °C |
| Maximum System Voltage | 1000 V DC (IEC) / 600V DC (UL) |
| Maximum Series Fuse Rating | 15 A |
| Power Tolerance | 0/+5 % |
STC: lrradiance 1000 W/m2, module temperature 25 °C, AM=1.5;
Best in Class AAA solar simulator (IEC 60904-9) used, power measurement uncertainty is within +/- 3%
Mechanical Characteristics
Solar Cell | Poly-crystalline silicon solar cell |
| No. of Cells | 24pcs |
| Dimensions | 111X80mm |
| Weight | 50g |
