Product Details
| Place of Origin | Anhui, China | Brand Name | HUAMO | |
| Model Number | HM0147 |
Product Description

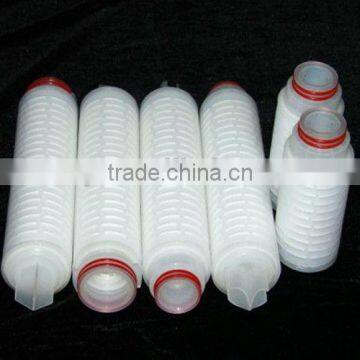

Deft design folded PP membrane filter cartridge for liquid filtration
filter media, is a fixed aperture deep filter element, filter media meet FDA requirements.
Filtering accuracy ranging from 0.1μm to 60μm, its unique low dropout, high liquidity, long
using life characteristics, is prefiltered first choice. All-polypropylene structure with stable
performance and a wide range of chemical compatibility.
Quick Detail:
- Name: PP Pleated Filter Cartridge
- Material of filter media: High quality Polypropylene membrane
- 1.0+5.0 micron water filter cartridge
- Mainly used for liquid filtration
- Removal Rating: 0.45-10 um
Description:
1.Superior dirt-holding capacity
2.Continuously graded pore structure
3.Reliable retention of particulates
4.Broad chemical compatibility
5.Long service life and high flow rates
6.Especially suitable for viscous and gel liquids
Application:
- High viscosity fluids, such as syrups
- Alcohol, Wine, Beer, Juice, Colas, Bottled water;
- Ink, plating solutions;
- Fine chemicals.
Specification:
Materials of Construction | ||
Filter Media | PP | |
Support | PP | |
Core, Cage and Drainage | PP | |
End Caps | PP | |
O-rings/Gasket | Viton/Silicone/EPDM/ TEV | |
Sealing Technology | Thermal Bonding, No Adhesives | |
Dimensions | ||
Diameter | Φ68 | |
Length | 5 inch, 10 inch, 20 inch, 30 inch, 40 inch | |
Filtration Area, ft2 | ||
≥ 4.4 per 10-inch element | ||
Pore Size, μm | ||
0.1, 0.22, 0.45, 0.65, 1.0, 3.0, 5.0, 10, 20 | ||
Maximum Differential Pressure | ||
Forward: 4.2 bar @ 23 ℃; 1.5 bar @ 85 ℃ | ||
Flow Rate & Pressure Drop, per 10-inch cartridge | ||
0.1 μm | ≥ 18 L/min at 210 mbar | |
0.22 μm | ≥ 25 L/min at 210 mbar | |
0.45 μm | ≥ 27 L/min at 210 mbar | |
Particle Removal Efficiency (%) | ||
> 80 | ||
Extractables, per 10-inch cartridge | ||
≤ 50 mg after 24-h soak in water | ||
TOC | ||
< 500 ppb after a water flush of 60 liters per 10-inch cartridge | ||
Oxidizable Substances | ||
Meets the criteria of Chinese Pharmacopoeia 2010, volume Ⅱ for purified water. | ||
Bacterial Endotoxins | ||
< 0.25 EU/ml as determined by the LAL test | ||
Good Manufacturing Practices | ||
Manufactured in an TS Filter facility which adheres to Good Manufacturing Practices. | ||
100% integrity test
More than 13 years of experience of manufacturing
Reasonable prices
SGS test
IFTA bacterial challenge test
Validation guide
Made of 100%high quality polypropylene material
