High Flow 20um 20inch Alkaline Water Filter Cartridge
- SHANGHAI
- Credit Card PayPal
You May Like
-
Pleated Prefiltration Water Filter Cartridge Big Flow Filter Cartridge
-
Pleated High Flow Cartridge Big Flow Water Cheap Water Filters
-
Large-scale High Flowment Water Filter Cartridge for Water Purifier
-
UF90 160 200 250 PVC/PVDF/PES Hollow Fiber UF Membrane ,4"/8" UF Filter Membrane/PP/PVDF Hollow Fiber Menbrane for Water Filter
-
Industrial UF Membrane Ultrafiltration Membrane for Water Purifier,UF90,160,200,250,
-
UF Membrane 90 / Ultrafiltration Membrane 4" / Hollow Fiber Membrane
Product Details
| Place of Origin | Anhui, China | Brand Name | HUAMO/OEM | |
| Model Number | FRO1 |
Product Description

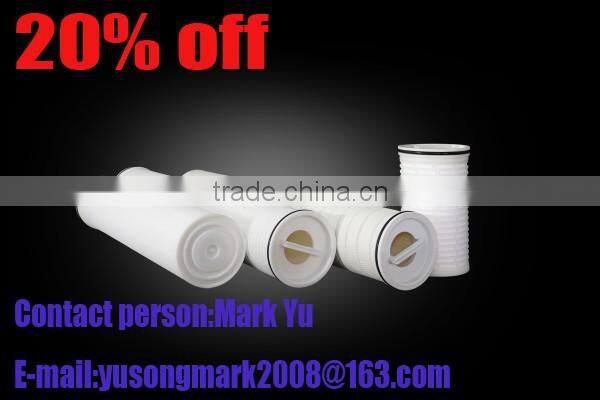

High flow 20um 20inch alkaline water filter cartridge
The Hi-Flowment Filter cartridge is a new product developed by Huamo Filter Equipment Co.,Ltd in Wuhu China.It has a 6 inch/152mm large diameter, and is coreless, single open-ended with an inside to outside flow pattern.The large diameter with big filter area insures to reduce the number of filter cartridges and the dimention of housing required.The long service life and high flow rate result in low investment and less manpowert in many applications.
-- Prefiltration of RO, Pretreatment of sea water desalination
-- Condensate water filtration, hot water recovery in power generation
-- API, solvents, and water filtration in BioPharm market
-- The filtration of bottled water, high Fructose, edible oil, soft drinks, and milk
-- Paints and coatings, Petrochemical, Refineries
-- Microelectronics, film, fiber and resin
FEATURE:
-- Gradient pore structure
-- Up to 110M3/H flow rate per filter cartridge for water filtration.
-- Maximum 50% reduction of filter system
-- 20 inch /528mm,40inch/1022mm and 60 inch/1538mm lengths are available
-- All contaminants can be removed within the cartridge because of the flow direction.
SPECIFICATIONS:
| Outside Diameter: | 6 inch(152mm) |
| Length: | 20 inch(528mm),40 inch(1022mm),60 inch(1538mm) |
Filter media: | Pleated glass fiber |
| Support/Drainage: | Polypropylene (PP) |
| End caps : | Glass fiber reinforced Polypropylene |
| Seal Material : | EPDM, NBR |
| Removal Rating: | 1 µm , 4.5 µm , 6 µm , 10 µm ,20 µm ,40 µm ,70 µm,100µm |
| Maximum Operating Temperature: | Pleated glass fiber:121°C Pleated PP: 82°C Melt Blown PP: 65°C |
| Maximum Differential Pressure: | Pleated glass fiber:3.4 Bar at 121°C Pleated PP: 3.4Bar at 82°C Melt Blown:1.03Bar at 65°C |
| Recommended Change out Differential Pressure: | 2.4Bar at 20°C |
| Suggested maximum Flow of water: | 20 inch length:660LPM 40 inch length:1,300LPM 60 inch length:1,900LPM |
