2016 New PP Filter Cartridge for Water Filtration

FOB Price

US$ 2.3 - 4.3 / Piece

50 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Anhui, China		Brand Name	OEM/HUAMO
Model Number	MBRYJ

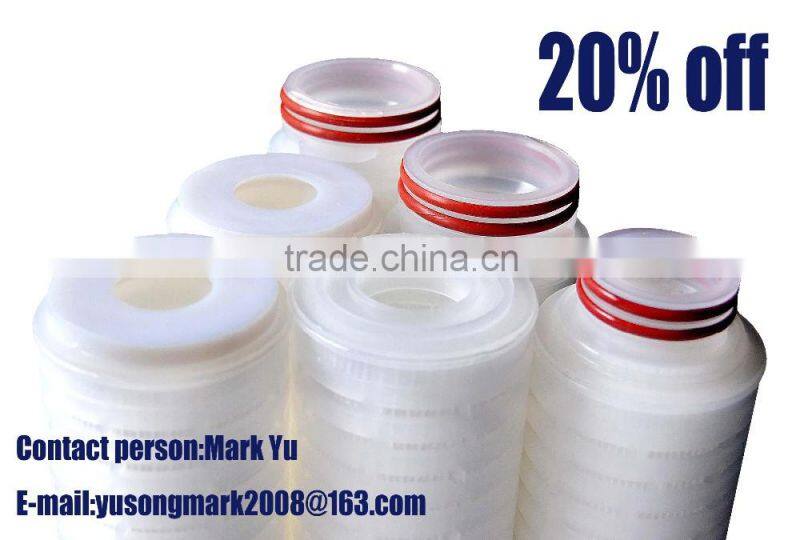

2016 new PP filter cartridge for water filtration

1. Superior dirt-holding capacity

2. Broad chemical compatibility

3. Long service life and high flow rates

4. Especially suitable for viscous and gel liquids

1. Features

Application

1)Filtration for the raw material of resin glasses

2)Final filtration for ultra pure water

3)Filtration for other chemicals

Chemical
Oil & Gas Ind
Metal Treatment
Process Water
Electronis
Coatings, Paint
Petroleum
Prefiltration

FEATURE:

Large filter area and depth filtration provides a long lifetime of pleated filter cartridge.

Low cost because of large filter area and reduces labor costs to change
The Absolute glass fiber media supplies optimal eddiciency of solids removal.

SPECIFICATION:

Outside Diameter:	64mm
Inside Diameter :	28mm
Length :	10",20",30",40"
Filter Media :	PP
End Cap Material,Center Core :	PP
Out cage	PP
Seal Material :	Silicone, EPDM, NBR, Viton
End Cap Types :	DOE,-226/Flat End
Removal Rating :	1μm,2μm,5μm,10μm,20μm,50μm
Operating Pressure and temperature :	The pleated cartridge construction will withstand differential Pressures up to 60 PSI(4Bar) at ambient temperature. The optimum changeout differential pressure is 35psi(2.5Bar) up to 52°C.
Service condition :	500KPa(5Bar)by 20°C 300KPa(3Bar)by 65°C Beta: 5000(99.98% removal efficiency) for glass fiber media. Construction: Fully thermal welded.

Certificates:

Packing:
