Dual-band 8 SIM cards GSM FCT fixed cellular terminal with 8 ports/channels and IMEI changeable

Specifications

Brand:Etross or OEM brand

Model No.:etross-8888

Name:Hi-Q Etross-8888 GSM 8 ports/channnels  fixed wireless terminal(FWT)

Main function:

1.It has 8 channels with 8/32/64 SIM cards,which can be Auto Switched.

2.The IMEI can be changed to any number you want.

3.SIM rotation by dial times,by total talking times,by working hours

4.Setting up and modification Parameter by telephone set

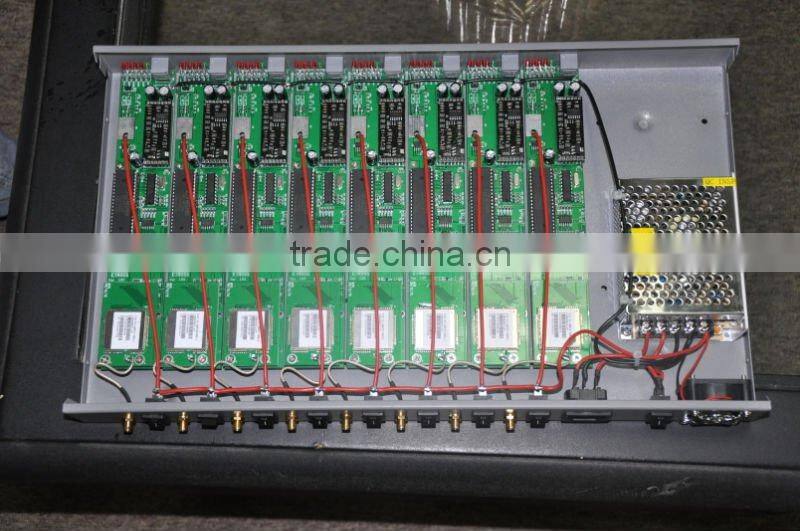

                                      Inside view of Etross-8888

2,Features:

1) It is a 8 channels GSM Gateway that has 8 ports FXS interfaces;

2) It can connect with ordinary telephone set, PBX , VOIP Gateway, Billing meter etc.;

3) Dialing tone frequency:450hz;

4) Employ Industrial module Sim300(900/1800/1900Mhz),M10(850/900/1800/1900Mhz), Wavecom Q2403A( 900/1800MHZ) to make;

5) Can adjust dial interval from 0.5sec to 9 secs by setting up from telephone set;

6) Can adjust voice volume by setting up from telephone set;

7) SIM card supported (1.8V, 3V);
8) Caller ID display;
9) DTMF Dialing;
10) Bell signal;
11) Polarity reversal;
12) The RJ-11 socket which connect the phone or billing system for metering purpose;
13) Antenna socket (SMA);
14) IP Presetting;
15) Working status and Signal Strength by LED indicator;

16) IMEI Change (optional)

3,Technical Specifications
Air interface standard: GSM850/1900Mhz,900/1,800Mhz phase 2+ full band
Frequency ranges:
 A) GSM 850                                   GSM 1900:
 I) Transmission: 869.2 ~ 893.8MHz      I) Transmission: 1, 930 ~ 1, 990MHz
 Ii) Reception: 824.2 ~ 848.2MHz         Ii) Reception: 1, 850 ~ 1, 910MHz
 B) GSM 900:                                  GSM 1800:
 I) Transmission: 890 ~ 915MHz           I) Transmission: 1, 710 ~ 1, 785MHz
 Ii) Reception: 935 ~ 960MHz              Ii) Reception: 1, 805 ~ 1, 880MHz
Phone interface: supply RJ-11 Phone Interface
Hanging voltage: 45V
Picking off voltage: 30mA / 41mA
Dialing tone Frequency: 450Hz
Antenna interface: Antenna amplifying>2.5db
Sensitivity:<-104DBM
Transmitting power<3W
AC-Adapter interface: INPUT: AC 110~240V
OUTPUT: 5V 7A

AC-Power type: EU,US,AU,British can be optional

4,Operation Circumstance:
Operation temperature: -10c~60C
Storage temperature:-20C~70C
Operation humidity:45%-95%
Atmosphere pressure:86-106Kpa
Environment noise: <60DB
Transmitting Power:2W
Sensitivity: <-104dbm
Antenna Amplifying: >1.5db
Dialing frequency: 450Hz
Hanging voltage: 45V
Picking current: 30mA/41mA

5,Checking Package:
ETROSS-8888 GSM 8 PORTS FWT: 1pcs;

Power Supply Cable: 1pcs,

GSM Antenna with 3m cable: 8pcs,

User’s Manual 1pcs.

Product dimension: L455x W280 x H45mm
Gift box dimension: L510x W170x H64mm
G.W: 4.5kg
