Etross 8848 GSM Fixed Wireless Terminal GSM Dialer
- shenzhen
- T/T Credit Card PayPal
You May Like
-
1 Port GSM FWT 8848 With IMEI Changer for Voice Call
-
GSM to PSTN Fixed Wireless Terminal With LCR
-
GSM to PSTN Fixed Wireless Terminal / FWT With LCR
-
GSM PSTN Fixed Cellular Terminal With Low Cost Routing
-
1 Channel GSM Dialerl for Connecting PABX, Quad Band 850/900/1800/1900Mhz
-
64 SIM 8 Ports GSM FWT Gateway for Termination
Product Details
| Place of Origin | Guangdong, China | Brand Name | Etross | |
| Model Number | etross-8848 | Type | GSM | |
| Port Number | 1 | Working Frequency | 850/900/1800/1900mhz |
Product Description
GSM Fixed Wireless TerminalFCT/FWT/WLL/Dialer gateway Etross 8848
Brand: Etross or OEM brand
Model no.: Etross-8848G
Product name: GSM Fixed Wireless Terminal
Frequencies: GSM850/1900Mhz 900/1800Mhz Quadband
Features and Functions:
1) Simple to install and easy to maintain
2) Steady industrial module and reliable design ensures good performance
3) Provides optimized circuit directly connecting the exchange device for Extensions
4) Compatible to most telephones, PBX and VoIP gateways (for call Termination)
5) Connect to Alarm systems to realize wireless alarm(for security use)
6) Strong signals with high gain antenna
7) Support SIM card (1.8V,3V)
8) Support DTMF 2'nd dialing out
9) DTMF CLIP(Caller ID display)
10) Hide subscriber caller id (been sent out)
11) Provides reversal polarity signal for metering
12) Signal indiator and power indicator and working status indicator
13) Suitable for wide voltage range and low power consumption
14) Suitable for all kinds of weather and environment
15) Locking PIN / network (optional)
16) GPRS function(optional)
17) Support IMEI change(optional)
18) Back up li-ion battery(optional)
Specifications:
1) Air interface standard: GSM850/1900Mhz,900/1,800Mhz phase 2+ full band
2) Frequency ranges:
A) GSM 850 GSM 1900:
I) Transmission: 869.2 ~ 893.8MHz I) Transmission: 1, 930 ~ 1, 990MHz
Ii) Reception: 824.2 ~ 848.2MHz Ii) Reception: 1, 850 ~ 1, 910MHz
B) GSM 900: GSM 1800:
I) Transmission: 890 ~ 915MHz I) Transmission: 1, 710 ~ 1, 785MHz
Ii) Reception: 935 ~ 960MHz Ii) Reception: 1, 805 ~ 1, 880MHz
3) Channel space: 200kHz
4) User line, bell signal: In line with GB/T15279
5) Max power: 0.25W / 0.5W
6) Consumption:
A) Immobility: Less than 25mAh
B) Transmission: Less than 400mAh
7) Sensitivity: -105dB
8) Dial tone frequency: 450MHz (standard)
9) Surrounding temperature: -10°C ~ +40°C
10) Relative humidity: 45% ~ 90% (without frost)
11) Atmosphere pressure: 86 ~ 106KPa
12) Environment noise: <60dB
13) Antenna amplifying: 3.5dB (omni directional), 12dB (certain direction /
Chosen direction)
14) AC power: DC 10V - 20V
15) Input: AC100 - 230V, 50 / 60Hz
16) Output: 12V 1A
17) Switching type / transformer type AC adapter (optional)
18) Connector of power: US or European type
19) Dimensions (L x W x H) (average): 185 x 135 x 22mm
20) Weight:
A) FWT: 400g
B) Full set with AC adapter, antenna and box: 800g
21) Colors: White/grey/black (optional)
22) Connection mode: RJ-11 phone sockets
23) Antenna connection: SMA antenna connection
Making Calls
1. Lift the handset or press “hand-free” key, you will hear dialing tone, then you can dial the telephone numbers you want to call.
2. Dialing: dialing the telephone numbers you want to call
3. On completion of dialed digits, you can press “#” to transmit the called telephone numbers. If you don’t dial any key for continual 3 seconds during the dialing, terminal transmits called telephone numbers automatically.
4. During calls, if the telephone numbers is not free ones, the terminal sends out anti-polarity signal.
5. If the calling party or called party hangs up, the terminal stops sending out anti-polarity signal.
When some calls are coming in, if the connected telephone has the function of displaying incoming calls, the telephone rings and displays the incoming telephone numbers. Now users can lift the handset or press “hand-free” to answer it.
Check Package:
| ETROSS-8848 GSM FWT | 1 PC |
| Ac-adapter | 1 PC |
| GSM Antenna with 3m cable | 1 PC |
| User’s Manual | 1 PC |
| G.W | 0.8KG |
Scheme 1: Connect with voip for origination and termination
Scheme 2: Connect with normal deskphone
Scheme 3: Connect with PBX for external calling
Inner view:

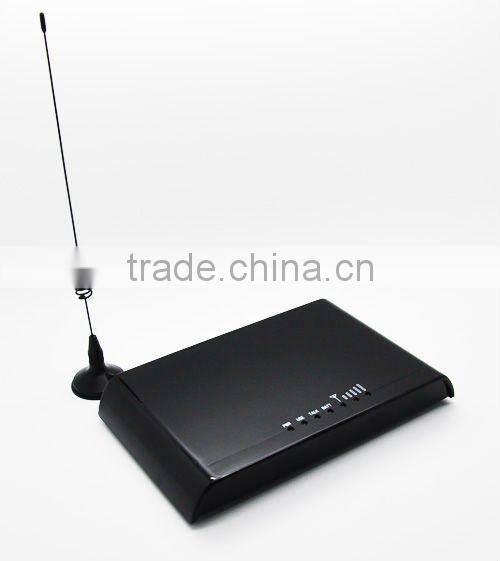

White housing with short antenna:
Black housing with 3 meters antenna:
