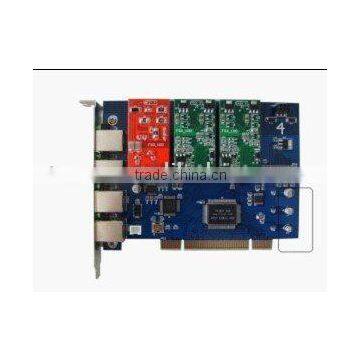

Compatible Asterisk PCI CARD With 4 channels (3.3Vand 5V)

High security: It adopt tertiary thunder preventing technology, can prevent

the thunder and lightning from striking effectively.

 World Wide Usable: Configurable line interface to meet global telephone line

interface requirements.

 The PCI plug is based on PCI2.2. User could choose any of combinations of

FXO_100 or FXS_100 modules according to their requirements.

32 bit bus master DMA data exchanges across PCI interface at

132Mbytes/sec for minimum host processor intervention.

No additional power connector or supplier is required for the operation of FXS

modules, reduced the line wave of the power, has improved the voice quality.

 It supports all the functions of Asterisk PBX systems needed.

 Easy to stall: Both software and hardware compatible with Digiums

TDM400P.

Exchangable with Digium modules: It is mixable with X100M/S100M of

Digium.

 Humanization is designed: The module socket that should be nipped is all

adopted and stuck to one slice of sockets, can prevent stabing users finger

effectively.

 ETROSS-400P has a clock output plug to realize the colck synchronization. Through

the clock line connect to the plug, ETROSS-400P can be connected to other cards, like

GSM400P. With the colck synchronization, user can plug some cards in one

computer.

Applications:

 PBX/IVR Services

VoIP Services

VoIP Gateways

 FAX Server, FAX On Demand

 Voice Mail Services

Call Centers

Prepaid Calling Card System

 Callback Service

 Traditional Calls/VoIP Calls Conference

Hardware and software requirements:

Interface:   PCI 2.2

CPU

 RAM

 Linux

800+MHZ

128+MB

kernel     2.4.x or 2.6.x

Size and Weight

 Size(L*W*H):   140*104*12MM

   Wight: 152g
