Home > Products > ASTERISK CARD/GSM ASTERISK CARD > Analog interface card for Asterisk PBX 1200P(Compatible 3.3V and 5V)
Analog interface card for Asterisk PBX 1200P(Compatible 3.3V and 5V)
- 10000 Unit / Units per Month
- FOB SHENZHEN
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Etross Or OEM Brand | |
| Model Number | ETROSS-1200P | Type | Other, Asterisk Card |
Product Description
Specifications
Analog interface card for Asterisk PBX with 1200PAsterisk FXO/FXS PCI CARD 1200P
Brand: Etross or OEM brand
Model no.: Etross-1200P
Product name: Analog interface card for Asterisk PBX 1200p
Descripition:

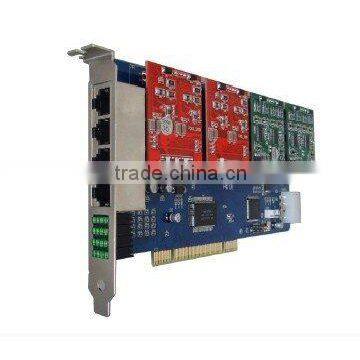

ETROSS-1200P is a 12 port FXS/FXO analog Asterisk PCI card which is mainly applied to PSTN environment. It supports all the functions of Asterisk PBX systems needed.
1. High security: It adopt tertiary thunder preventing technology, can prevent the thunder and lightning from striking effectively.
2. World Wide Usable: Configurable line interface to meet global telephone line interface requirements.
3. User could choose any of combinations of FXO_200 or FXS_200 modules according to their requirements.
4 32 bit bus master DMA data exchanges across PCI interface at 132Mbytes/sec for minimum host processor intervention.
5 The high stability firmware is exported / imported with DMA data exchange, so it accelerated and reduced CPU load greatly. Under the environment of the same hardware, CPU rate of utilization is equal to CPU rate of utilization of using 4 port analog card.
6 It supports all the functions of Asterisk PBX systems needed.
7 Humanization is designed: The module socket that should be nipped is all adopted and stuck to one slice of sockets, can prevent stabing users finger effectively. |
Applications:
PBX/IVR Services
VoIP Services
VoIP Gateways
FAX Server, FAX On Demand
Voice Mail Services
Call Centers
Prepaid Calling Card System
Callback Service
Traditional Calls/VoIP Calls Conference
Hardware and software requirements:
1.Interface: PCI Express 1x
2. CPU 800+MHZ
3. RAM 128+MB
4. Linux kernel 2.4.x or 2.6.x
Size and Weight:
Size(L*W*H): 214*105*24MM
Wight: 256g
The environmental instructions for using:
1. Temperature Operation: 0 to 70°C
2. Temperature Storage: -35°C to 120°C
3. Humidity: 10% to 90% Non-condensing
4. Voltage: 3.3V/12V
5 Power Dissipation Mas: 3.25w/30.76w
