3G WCDMA FWT-8888 8 ports LONGSUNG U6100

Specifications

WCDMA 2100MHZ Made by Wavecom Longsuang U6100 module 8 Ports Gateway

supports GSM 850/900/1800/1900mhz

 1,General Description:

Etross-8888 is a GSM to Analog Converter, the device can produce a FXS line to allow a regular phone to be connected and used just like a local landline(PSTN) except your calls will go out the GSM network. This device can both receive and make calls.

The main application is: Connecting the RJ-11 FXS line to connect Ordinary telephone set for voice call, to connect PBX for call extentions, to connect billing systems for public phone use, to connect VoIP gateway to realize VoIP call termination, to connect alarm system for security purpose, etc. It is not a VOIP gateway, nor a GSM+VOIP gateway, It is a GSM Fixed Wireless Terminal that produces a Analog FXS phone line.

2,Features:

1) It is a 8 channels GSM Gateway that has 8 ports FXS interfaces;

2) It can connect with ordinary telephone set, PBX , VOIP Gateway, Billing meter

3) Dialing tone frequency:450hz;

4) Long sung U 6100 3G Module to make;

5) Can adjust dial interval from 0.5sec to 9 secs by setting up from telephone set;

6) Can adjust voice volume by setting up from telephone set;

7) SIM card supported (1.8V, 3V);
8) Caller ID display;
9) DTMF Dialing;
10) Bell signal;
11) Polarity reversal;
12) The RJ-11 socket which connect the phone or billing system for metering purpose;
13) Antenna socket (SMA);
14) IP Presetting;
15) Working status and Signal Strength by LED indicator;

 5,Checking Package:

ETROSS-8888 GSM 8 PORTS FWT: 1pcs;

Power Supply Cable: 1pcs,

GSM Antenna with 3m cable: 8pcs,

User’s Manual 1pcs.

Product dimension: L455x W280 x H45mm
Gift box dimension: L510x W170x H64mm
G.W: 4.5kg

Can connect to regular telephone set

Can connect to phone billing meter

Can connect to PBX

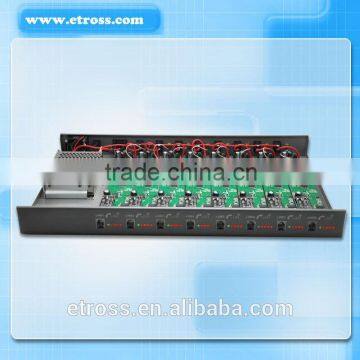

Picture view
