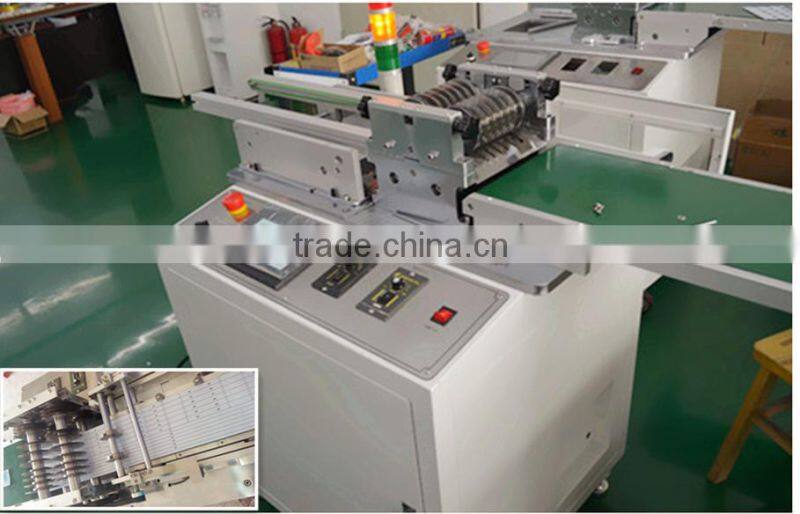

LED PCB Board Manufacturers Cutter / Simple Pcb Board Cutter

YSVJ-650 - LED PCB board manufacturers  cutter / simple pcb board  cutter

Feature:

1. The shaft of the knives( top and bottom) is design to be an an integral whole, it is convenient to install, pick and place.

2. This machine adopts computer screen control with a counting device which can be preset production. Gap of the cutting tool displayed by the display screen directly.

3. All the v-cut pcb board can be cut by this machine.

4. Using the machine to cut, reduce stress, prevent the solder joint cracking.

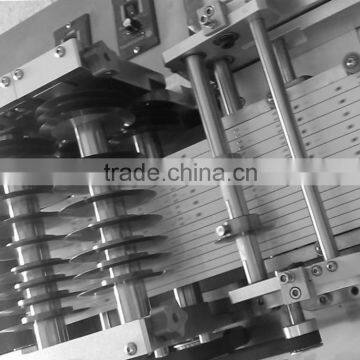

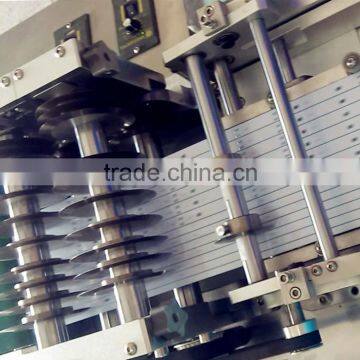

5. Pcb board is cut by multiple cutters which can cut several board once.

6. The machine top cutter wheel can be slightly adjust:0-5mm.

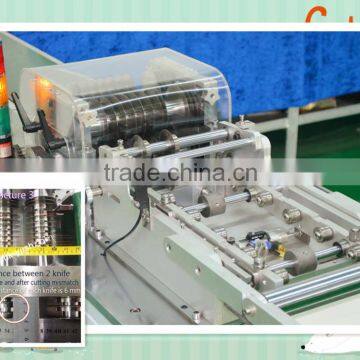

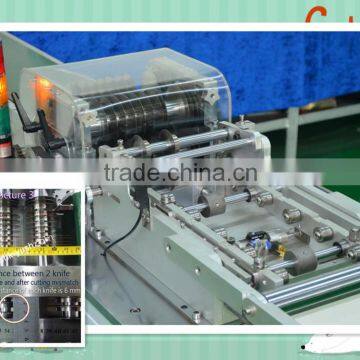

7. The distance between the knives can be adjusted, and it is suitable to cut single pcb board within width 15-20mm.

8. Blade is made of SKH51 high speed steel with long service life and wear resistance.

9. Cutting speed can be set and conveniently adjusted by turn-knob.

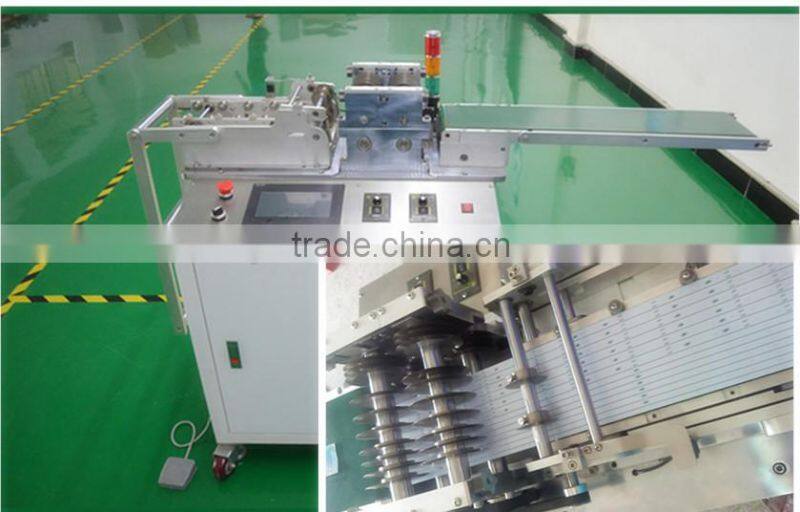

10. nstall conveyer belt, pcb board which is cut can be sent out directly, then docking with the next machine and reducing the times of artificial pick and place. This machine can cut LED panel, fiberboard, aluminum board (more than 400mm ) and special board.

11. With several knives, the machine operates simply and efficiently and is suitable for mass production.

Specification

Power : 110V/220V AC 60HZ/50HZ

Size: L1300*W400*H1000mm

Weight : 350kgs

Process of cutting is unlimited

PCB thickness: 0.8-3.0mm

Applicable board: can cut LED panel, fiberboard, aluminum board (more than 400mm ) and special board.
