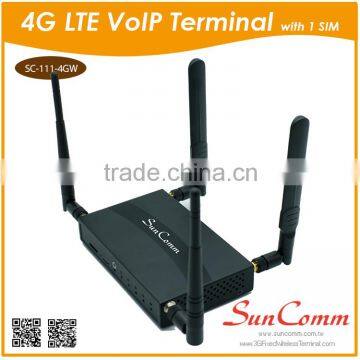

SC-111-4GW with 4G 1SIM, 1 port FXS + 1 port FXO & WIFI AP 4G VoIP Terminal

Key Features

FXS/FXO/GSM/LTE interface on a single device

Send/receive calls from PSTN/ PLMN via FXO/GSM/LTE

Flexible dial plan, via time, numbers, source IP etc.

IVR customization

High speed NAT forwarding,  support WIFI hotspot

Built-in SIP server, support up to 32 SIP Extensions

User-friendly web interface, multiple management ways

Physical Interfaces

FXS Port: 1

FXO Port: 1

SIM Slot: 1

Ethernet Interface:1WAN &3 LAN 10/100 Base-T RJ45

WIFI: 2.4GHz 802.11b/g/n,2T2R

Voice Capabilities

VoIP Protocols: SIP over UDP/TCP/TLS,SDP,RTP/SRTP

Codec: G.711a/μ law, G.723.1, G.729A/B, iLBC, G.726

Silence Suppression

Comfort Noise Generator (CNG)

Voice Activity Detection (VAD)

Echo Cancellation: G.168 with up to 128ms

Dynamic Jitter Buffer

Adjustable Gain Control

Automatic Gain Control  (AGC)

Call Progress Tones: Dial Tone, Ring Back Tone, Busy Tone

FAX: T.38 and Pass-through

NAT: STUN/ UPnP

DTMF: RFC2833/ SIP Info/ In-band

FXS

Connector: RJ11

Caller ID: Bellcore Type 1&2, ETSI, BT, NTT and DTMF

Answer & Disconnect Signaling: Answer, Disconnect, Busy Tone

Polarity Reversal

Hook Flash

FXO

Connector: RJ11

Caller ID: FSK, DTMF

Polarity Reversal

Answer Delay

Busy Tone Detection

No Current Detection

Mobile

GSM/GPRS/EDGE: 900/1800MHz

WCDMA (3G):

UMTS/HSDPA/HSPA+ B1/B8

TD-SCDMA  B34/ B39

LTE (4G):

TDD-LTE B38/B39/B40/B41

FDD-LTE B1/B3/B7/B8

SIM/ USIM: 1 USIM per Channel

SIM Card: 1.8V, 3.0V

Antenna: 3.0dB, SMA Interface

SMS/ USSD

Supplementary Services

Call Forward (Unconditional/No Answer/Busy)

Call Waiting

Call Hold

Call Transfer

Hotline

Do-not-disturb

3 Way Conference

Software Features

Ring Group

Routing Groups

Caller/Called Number Manipulation

Routing Base on Time Period

Routing Base on Caller/Called Prefixes

Routing Base on Source Trunks

Dial Rules

Failover Routing

FXO Impedance Auto Match

IVR Customization

Auto Attendant Function

CDRs

Maintenance

Web GUI Configuration

Telnet Management

Configuration Restore/Backup

Multiple Languages Supported

HTTP/TFTP/FTP Firmware Upgrade

Auto Provision

CDR Report and Export

Syslog

Ping and Tracert

Traffic Statistics: TCP,UDP,RTP

Network Capture

NTP

Environmental

Power Supply: 12VDC, 1A

Power Consumption: 10W

Operating Temperature.  0 ℃  ~ 45 ℃

Storage Temperature: -20 ℃ ~80 ℃

Humidity: 10%-90% Non-Condensing

Dimensions (W/D/H): 126×75×25mm

Unit Weight: 0.7kg
