Sanitary Mixing Tank With Magnetic Agitator/Mixer
- Shanghai China
- T/T
You May Like
-
Stainless Steel Mixing Tank With Agitator of High Quality
-
Stainless Steel Mixing Tank
-
Vaccine Production Plant With Mixing Tanks
-
(Vaccine Project) Pharmaceutical/Veterinary/ Medicine Mixer / Blender / Mixing Tank
-
Liquid Pharmaceuticals Mixer/Mixing Tank/Mixing Equipment
-
Stainless Steel Magnetic Mixing Tank With Coil Jacket/Dimple Jacket/Full Jacket
Product Details
| Condition | New | Mixer Type | Agitator | |
| Product Type | Other, injection, eye drop or other liquids in pharmaceutical field | Application | Liquid | |
| Additional Capabilities | Other, temp., level, weight display&record, alarm, SIP, explosion-proof, etc. | Place of Origin | Shanghai, China | |
| Brand Name | SHANGHAI RITAI | Model Number | RTYM | |
| Max. Loading Capacity | 10000L | Voltage | 380V or others | |
| Power(W) | 0.55~4.5KW | Dimension(L*W*H) | N/A | |
| Certification | ASME, PED 97/23/EC, NB, GB, ISO 9001:2008 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Name: Mixing tank with magnetic agitator
Product technical description
Specification: 30L~50000L
Material: SS316L or SS304
Surface finish: inside surface is Ra0.28~0.4μm by mechanical polish. (passivation or electropolish are optional). Outside surface is Ra0.6~0.8μm by satin finish.
Agitator: bottom magnetic agitator,(bottom emusifier, homogenizer for optional)
Pressure: ATM or pressure vessel (-0.1~1Mpa)
Structure: Single layer vessel, vessel with jacket, vessel with jacket and insulation

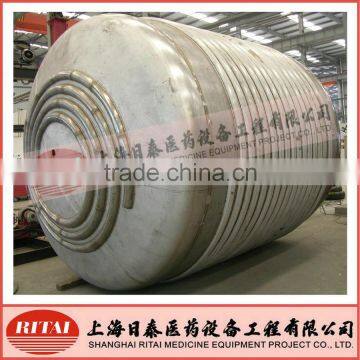

Jacket type: dimple jacket, full jacket, or coil jacket
Insulation material: rock wool

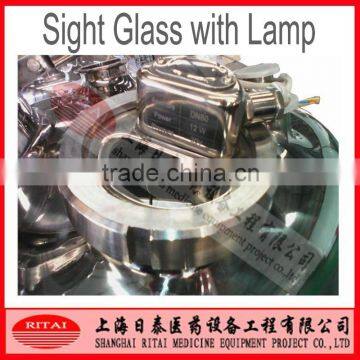

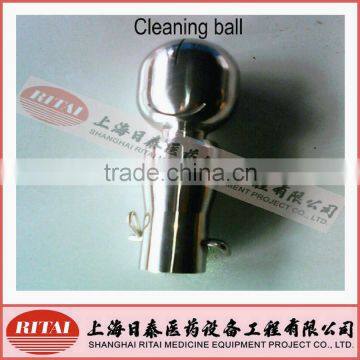

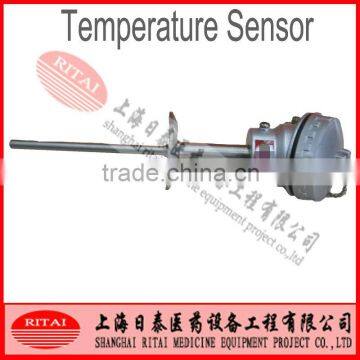

Components: vent filter, temp. gauge, level gauge, manhole, sight glass and cleaning ball or according to client’s detail requirement.
Manufacture standard for pressure vessel: ASME, PED 97/23/EC, GB150-2011
| Working volume | Inner diameter | Outer diameter | Vessel height | Total volume |
| 30L | 400mm | 500mm | 400mm | 44L |
| 50L | 400mm | 500mm | 600mm | 69L |
| 100L | 500mm | 600mm | 650mm | 130L |
| 200L | 600mm | 700mm | 1000mm | 250L |
| 300L | 700mm | 800mm | 1250mm | 370L |
| 500L | 900mm | 1050mm | 1150mm | 650L |
| 1000L | 1100mm | 1250mm | 1480mm | 1260L |
| 1500L | 1200mm | 1350nmm | 1700mm | 1780L |
| 2000L | 1300mm | 1500mm | 1980mm | 2200L |
| 3000L | 1500mm | 1700mm | 2150mm | 3400L |
| 4000L | 1600mm | 1750mm | 2630mm | 4000L |
| 8000L | 1900mm | 2100mm | 3200mm | 8300L |
| The above dimension is only for reference, we can make up to 30000L , and we can make special dimension according to client specific requirement. | ||||
We offer design, customization, manufacture, installation, and maintenance services, etc.
Shanghai Ritai Medicine Equipment Project Co., Ltd. mainly specializes in innovation and development of sanitary stainless steel pressure vessels, atmospheric pressure vessels, fermenters, valves and piping system which are widely used in the following fields, such as pharmacy, biology, chemistry, food and drinks industry.
Shanghai Ritai is qualified to design and manufacture pressure vessels with the certificates of ASME, PED 97/23/EC, NB, and ISO 9001:2008.
