Sand Maker of Vertical Shaft Impact Crusher - Great Wall
- Qingdao Shanghai Tianjin
- T/T Credit Card
You May Like
Product Details
| Condition | New | Production Capacity | Please contact us for details | |
| Place of Origin | Henan, China | Brand Name | Great Wall | |
| Model Number | VSI Sand Maker | Voltage | Normal industrial voltage | |
| Power(W) | 180000 | Dimension(L*W*H) | 4140*2280*2425mm | |
| Weight | 10.3(t) | Certification | ISO & CE | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
"Great Wall Make Great Machine"
Different Colors&Packages are available

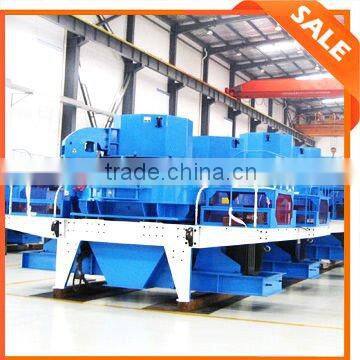

Sand Maker of Vertical Shaft Impact Crusher
I. Sand Maker of Vertical Shaft Impact Crusher Usage and Application
This sand making machine is an advanced and high-efficiency equipment. It is the latest researched results basing on Germany technology. The machine is professional in producing qualified sand and stone for highway, high-speed railway, high building, city project, hydropower dam constructions, and concrete mixing plant. It is widely used in sand making and stone reshaping industry.
II. Sand Maker of Vertical Shaft Impact Crusher Features
1. Oil supplied by two oil pumps, stops automatically if there is no oil; cooled by water, heating the motor firstly if start the machine in winter.
2. Hydraulic lifting when changing or checking the spare parts which makes it easy and convenient in maintenance.
3. Famous brand SKF or TIMKEN of the bearing makes the machine work well and few problems.
4. Vibrating alarm device; if the crusher works abnormally, alarm will sound to make the machine stop working so as to protect the crusher.
5. Special feeding structure; rock on rock, and rock on iron in the crusher making the stone to be crushed and reshaped.
6. Unique dustproof seal system, protects the lubrications parts from the dust outside.
7. Perfect design on material bumping angle reduces the friction between raw material and quick-wear parts, prolongs the service time of quick-wear parts and cuts the cost.
III. Sand Maker of Vertical Shaft Impact Crusher Main Specifications
Model | VSI-7611 | VSI-8518 | VSI-9526 | VSI-1140 | |
Capacity | Center and Sides Feeding | 120-180 | 200-260 | 300-380 | 450-520 |
Center Feeding | 60-90 | 100-130 | 150-190 | 225-260 | |
Max. Feeding Size (mm) | Soft Material | 35 | 40 | 45 | 50 |
Hard Material | 30 | 35 | 40 | 45 | |
Rotation Speed(rpm) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | |
Double Motor Power (Kw) | 110 | 180 | 264 | 400 | |
Overall Dimension | 3700×2150×2100 | 4140×2280×2425 | 4560×2447×2778 | 5000×2700×3300 | |
Weight (t) | 7.8 | 10.3 | 16 | 25.6 | |
Vibration Sensor | Inspection scope: 0.1-20mm/s continual adjustment | ||||
Hydraulic oil pump | Motor Power of Double Oil Pump(Kw) | 2×0.31 | |||
Overall Dimension | 820×520×1270 | ||||
Power of Oil Tank Heater(Kw) | 2 | ||||
Customer's site Picture


With more than twenty years' history, Zhengzhou Great Wall Heavy Industry Machinery Co.,Ltd. is a manufacture which specialized in R&D, manufacturing and selling big and middle size heavy industry machinery. Since establishment, we make a good image in the market with scientific management, qualified products and perfect service.
Our main products are crushers, grinding mills, other equipments for crushing plant and grinding plant, as well as building construction equipments. They are widely used in mining, building material, metallurgy, chemical, traffic, reservoir and so on. Our products are not only sold well in more than twenty provinces and cities in China, but also in tens of countries and regions in Eastern Europe, Middle East, Asia, Africa, North America, South America, and Oceania.
Now we have domestic top ranking production equipments and precise testing instrument, each process of products is strictly inspected to guarantee the products to achieving high ex-factory standard. Besides, we cooperate with many famous universities and scientific research institutions, so that can make technical warrantee for the products in it's developing, updating and improving.
"Persons of ability guarantee the quality". Our company takes in persons of ability and gives training to the staffs annually to their quality and skill to meet the development of the company.With the right of importing and exporting, the company owns an international trading department which is specialized in sales and exports, we provide the best service to the foreign clients.
During the past years, we stick to "honest, truth-seeking, innovation and hard working". To keep "Great Wall" brand, we will improve ourselves and try our best to make perfect products and the best service.

1.Pre-sales Service
Offering comprehensive technical and business consultation services;
Proposing th e most suitable scheme and equipment for our clients;
Designing and fabricating targeted products according to the special requirements of clients;
Training periodically high qualified service technician.
2.After-sales Service
Highly inspecting equipments in every working procedure, quality comes first;
Fast & Safe Delivery;
Assisting our clients for foundation construction of equipments;
Dispatching engineers to install and debug equipments;
Training the first-line operators on site;
Regularly visit clients to solve production problems;
Providing life-long maintenance service;
Providing technical exchanging;

1. We are Manufacturer (Not Dealer):
All machineries from Great Wall Heavy Industry Machinery CO., LTD are made by ourselves, with good quality, Competitive price and assured full after service.
2. If you are new for this business:
We can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.
3. We’d like to recommend a suitable model for you and send you a best quotation. So please give us this information about your requirement in your enquiry:
1. What is the raw material to be processed? And maximum feeding size of raw material?
2. What is the required output size after crushing?
3. How many tons per hour do you want?
Do not hesitate send us inquiry for more details Sand Maker of Vertical Shaft Impact Crusher.
