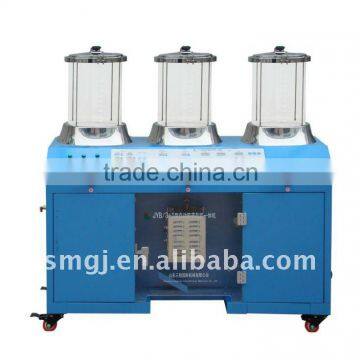

The 3+1Model Automatic Decocting and Packing Conbibation Machine for Chinese Herbal Medicine

Specifications

3+1Model Automatic Decocting and Packing Conbibation Machine for Chinese Herbal Medicine

 Being with three decocting boilers, they can be decocting and boiling at same time and packing in different time, the function is the same as the 3 decocting machines  and one packing machine, saving time and space.

The machine is controlled by the computer, automatically finish the process of the decocting and the packing. In the decocting process, the motor drives the mixing axle for automatic mixing. which accord with the Chinese medical traditional theory, decocting completely, decocting in high rate.

The powder coated body, the boiler body of 16L and 24L are made of  stainless steel.The boilers of 13L and 20L are made of  heat-resistant glass bucket

The process from decocting to packing is controlled by the computer controller automatically; 70-250ml/bag can be set up by the user, simple operation,safe and reliable,economical and practicality.

Boiler volume(L)     Max power(W)        Machine size(mm)          weight(Kg)

13*3                                  5000                    1320*570*1260                118

20*3                                  6200                     1320*570*1260                 125

 13*2+20                           5400                     1320*570*1260                  120
