Mobile Quarry Stone Crushing Plant for Aggregate With Different Capacity and Size
- Qingdao Shanghai Tianjin
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Other, Cone Crusher Plant | |
| Application | Mining,Building Material,Metallurgy,Chemical Industry. | Motor Type | AC Motor | |
| Power(W) | 70000-297000 | Capacity(t/h) | 15-450 | |
| Place of Origin | Henan, China | Brand Name | Great Wall | |
| Model Number | Y3S/YG Series Mobile Crusher | Dimension(L*W*H) | 10500*2800*3700~17000*3100*5800 (mm) | |
| Weight | 25-81(t) | Certification | ISO & CE | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
"Great Wall Make Great Machine"
Mobile quarry stone crushing plant for aggregate
Mobile quarry stone crushing plant for aggregate Usage and Application
MMobile quarry stone crushing plant for aggregate, also called mobile crusher plant, mobile stone crusher, mobile crushing plant or mobile stone crushing plant.This Mobile crushing plant is an integrated machine of vibrating feeder, stone crusher, vibrating screen and other auxiliary equipments.So Mobile quarry stone crushing plant for aggregate . The mobility of mobile crusher can overcome the limited by the crushing place, and reduces high material transportation cost meanwhile.
Mobile crushing plant has several types. In terms of the stone crusher types, mobile crushing plant can be divided into three types: mobile jaw crushing plant, mobile cone crushing plant and mobile impact crushing plant. Mibile jaw crushing plant is used for primary crushing and the other two are used for fine crushing. Each mobile crushing plant can work as a whole complete individual. But there are some special mobile crushers, which a machine body inculdes a complete crushing plant. A mobile crushing plant like this can offord the whole complete crushing plant.
Mobile crushing plant can crush materials on site or working nearly. It is widely used in the industry of mining, metallurgy, building materials, traffic, water conservancy and so on.
Mobile quarry stone crushing plant Main Specifications
Mobile Cone Crushing plant Main Specifications and Pictures
Model | Vibrating screen | Cone crusher | Belt conveyor | Configuration of wheels | Capacity | Overall Dimension | Weight |
Y3S1548Y900 | 3YZS1548 | PY900 | B650×7M | Dual-axle | 30-90 | 13700×2800×5700 | 34 |
Y3S1848S36 | 3YZS1848 | CZS36 | B650×7M | Dual-axle | 45-165 | 13700×3150×5700 | 39 |
Y3S1860S51 | 3YZS1860 | CZS51 | B800×8M | Tri-axle | 80-350 | 15200×3150×6400 | 55 |
Y3S2160H220 | 3YZS2160 | HP220 | B1000×8M | Tri-axle | 100-430 | 15200×3500×6450 | 57 |
Mobile Imapct Crushing Plant Main Specifications and Pictures
Model | Vibrating screen | Impact crusher | Belt conveyor | Configuration of? wheels | Capacity | Overall Dimension | Weight |
Y3S1548F1010 | 3YZS1548 | PF1010 | B650×7M | Dual-axle | 50-80 | 12700×2800×5700 | 35 |
Y3S1848F1210 | 3YZS1848 | PF1210 | B650×7M | Dual-axle | 70-130 | 13500×3150×6000 | 41 |
Y3S1860F1214 | 3YZS1860 | PF1214 | B800×8M | Tri-axle | 90-180 | 15500×3150×6400 | 46 |
Y3S2160F1315 | 3YZS2160 | PF1315 | B800×8M | Tri-axle | 120-250 | 16200×3500×6700 | 57 |
Mobile Jaw Crushing Plant Main Specifications and Pirctures
Model | Vibrating feeder | Jaw crusher | Belt conveyor | Configuration of wheels | Capacity | Overall Dimension | Weight |
YG725E46 | GZD750×2500 | PE400×600 | B650×7M | Single-axle | 15-60 | 10500×2800×3700 | 25 |
YG938E57 | GZD960×3800 | PE500×750 | B650×7.5M | Dual-axle | 40-100 | 13000×2900×4100 | 32 |
YG938E69 | GZD960×3800 | PE600×900 | B800×8M | Dual-axle | 60-140 | 13200×2900×4600 | 42 |
YG1142E710 | GZD1100×4200 | PE750×1060 | B1000×9M | Tri-axle | 80-230 | 15000×2900×5700 | 55 |
YG1349E912 | GZD1300×4900 | PE900×1200 | B1200×11M | Quad-axle | 140-320 | 17000×3100×5800 | 81 |
Mobile quarry stone crushing plant for aggregate Features
1.Move easily. Mobile quarry stone crushing plant can go to the crushing place directly. It can move not only on the smooth road, but also on the bumpy road.
2.Compact structure and simple operation. Integrative equipment group with trailer save the working area. With generator, motor and control box on the trailer, Mobile quarry stone crushing plant can work outdoor easily. Equipped with supporting facilities, it can be installed quickly and conveniently.
3.Save the cost. By crushing the materials on site, the transportation cost of Mobile quarry stone crushing plant is reduced.
4.Wide applicability. The Mobile quarry stone crushing plant can work as independent unit or work with other units to form a primary-secondary crushing system or primary-secondary-fine crushing system. It can also work as a production line with the screening equipment according to the requirement of customers (firstly screening then crushing, or firstly crushing then screening).
5.Stable performance and convenient maintenance. Equipped with crushers, vibrating feeders, and vibrating screens designed by Great Wall Heavy Industry Machinery, the Mobile quarry stone crushing plant shows high quality and reliable performance. Materials are delivered by belt conveyors, which is simple to operate and easy to maintain. The machine is featured by low investment and high production efficiency.
6.Flexible configuration. Mobile quarry stone crushing plant can be customized according to customers’ requirement on working site, materials and particle shape. Examples of customized machines include single units, combined units, units with self-discharged belt conveyors.

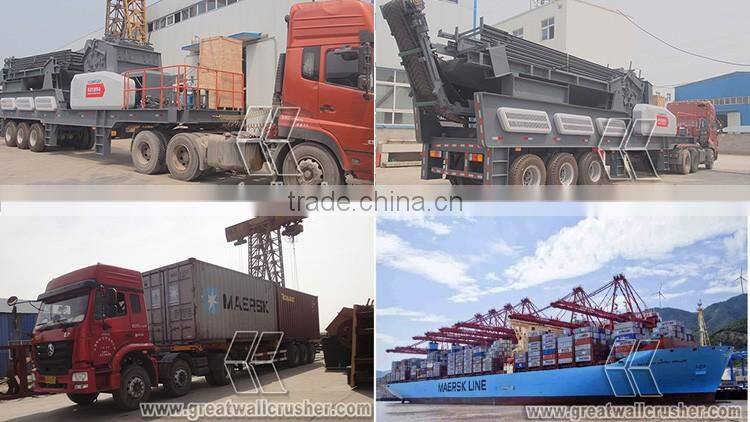

The Mobile crusher is fixed tightly when it is sent to the port by professionale truck. Before shipped, it is covered by waterproof material to avoid moisture and rough handling.

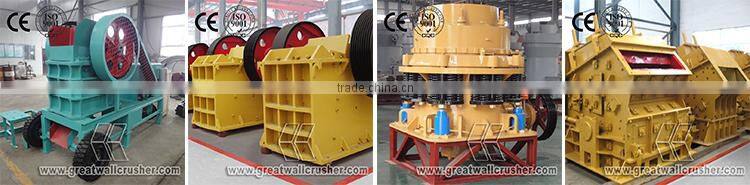

Other Stone Crusher
Diesel engien crusher Jaw crusher Cone crusher Impact crusher
Great Wall Company is a professional machine manufacturer with more than 50 years' experience, which specializes in manufacturing all kinds of large and medium sized heavy industry machines. The company not only has established system of designing, testing, inspecting and measuring, but also all kinds of modern production equipments, such as casting , heat treating, welding, machining and so on.
Great Wall Company mainly provides all kinds of large and medium sized grinding mills ,stone crushers, rotary kilns and dryers for the area of construction materials, metallurgy, mining, chemical industry, environmental protection etc. The products are sold well both in domestic and abroad, especially in Eastern Europe, Middle East, Asia, Africa, North and South America, Oceania and so on.
We can not only provide wholeheartedly service but also longtime warranty after sale. Before sale, our professional engineer would customize the client according to the production situation and demand. The machine we recommend is NOT the most expensive, NOT maximum profit for us, but the suitable. We insist the concept of “win-win” at the basic of the maximum profit for client. Our aim is to ensure the client to expend least money but create the greatest profit.
After sale, the machine has the 12 months warranty. But one different point from other manufacturers is we provide the professional technology support in the production progress. Any problems about the production, our senior engineer would help to solve them.
Beside this mobile crusher plant, we can also supply other types, such as medium mobile crusher, small mobile crusher and mini mobile crusher, which can also powered by diesel engine and electric. If this mobile crusher is not suitable, please contact us with your requirements. Or reply the following questions:
1. What is the raw material to be processed?
2. What's the raw material size before crushing?
3. What is the required output size after crushing?
4. How many tons per hour do you want?
Once received your detail requirements, suitable machine with detail specification and quotation will be sent.
Do not hesitate send us inquiry for more details about the Mobile Crusher, Mobile Crusher Plant.
