Home > Products > Mini Crusher > High Quality Mini Mineral Crusher With ISO CE Certificate
High Quality Mini Mineral Crusher With ISO CE Certificate
- Qingdao Shanghai Tianjin
- T/T
You May Like
Product Details
| Condition | New | Type | Jaw Crusher | |
| Application | Mining,Building Material,Metallurgy,Chemical Industry. | Motor Type | AC Motor | |
| Power(W) | Please refer to the specification | Capacity(t/h) | 1-60 | |
| Place of Origin | Henan, China | Brand Name | Great Wall | |
| Model Number | PX/PC | Dimension(L*W*H) | Please refer to the specification | |
| Weight | 0.85-16.5 (t) | Certification | ISO & CE | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Great Wall Make Great Machine"
Different Colors&Packages are avaialble
High Quality Mini Mineral Crusher with ISO CE Certificate
I. Mini Mineral Crusher Usage and Application
Mini crusher is widely used in the industry of mining, building materials, chemical industry, metallurgy and fodder. It can crush materials with middle or less than middle hardness into secondary of fine granularity. Such as, barite, limestone, terrazzo, silica sandstone, coal, coke, gypsum, aluminum sulfate, slag, etc.
II. Mini Mineral Crusher Structure and Working Principle

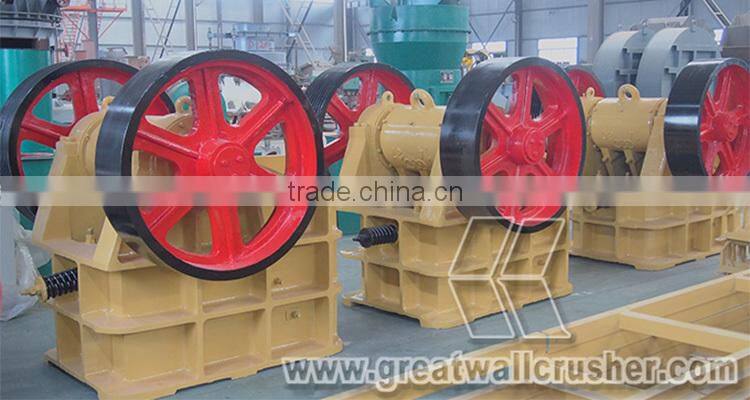

Mini jaw crusher
Mini jaw crusher Structure
The small jaw crusher is mainly composed of frame, fixed jaw plate,movable jaw plate, left and right guard plates, movable jaw, eccentric shaft,toggle plate, adjustable base, adjustable screw stem, adjustable wedge block, fitting of tension spring and so on.
Mini jaw crusher Working Principle
The electric motor drives the rotor and the rotor moves, making the hammer rotate in high speed. The materials are crushed in the crusher by the rotated hammer. The end products come out via the strips of the screen under the machine. The size of the granularity can be adjusted by changing the gap among the screen strips. The advantages of the machine are simple in operating, high in productivity, and very low investment cost.
Mini jaw crusher specifications
Model | Feed Opening Size | Max. Feeding Size | Adjustable Range of Output Size | Capacity | Motor Power | Weight | Overall |
PE250×400 | 250×400 | 200 | 20-50 | 5-20 | 15 | 2.9 | 1430×1310×1340 |
PE400×600 | 400×600 | 350 | 40-100 | 15-60 | 30-37 | 6.8 | 1700×1732×1653 |
PE500×750 | 500×750 | 425 | 50-100 | 40-100 | 45-55 | 11.2 | 2035×1921×2000 |
PE600×900 | 600×900 | 480 | 65-160 | 60-140 | 55-75 | 16.5 | 2290×2206×2370 |
PE750×1060 | 750×1060 | 630 | 80-150 | 80-230 | 90-110 | 29 | 2655×2302×3110 |
PE900×1200 | 900×1200 | 750 | 95-165 | 140-320 | 110-132 | 54.5 | 3789×3050×3025 |
PE1000×1200 | 1000×1200 | 850 | 105-185 | 180-400 | 160-200 | 56.5 | 3900×3320×3280 |
PE1200×1500 | 1200×1500 | 1020 | 150-300 | 250-650 | 220-250 | 99.6 | 4300×3540×4043 |
PEX150×250 | 150×250 | 125 | 10-40 | 1-3 | 5.5 | 0.85 | 896×745×935 |
PEX150×750 | 150×750 | 125 | 12-45 | 5-16 | 15 | 3.8 | 1205×1495×1203 |
PEX250×750 | 250×750 | 210 | 25-60 | 10-40 | 22-30 | 5 | 1667×1545×1020 |
PEX250×1000 | 250×1000 | 210 | 25-60 | 15-50 | 30-37 | 6.8 | 1964×1550×1380 |
PEX250×1200 | 250×1200 | 210 | 25-60 | 20-60 | 37-45 | 8.5 | 2192×1605×1415 |
PEX400×1200 | 400×1200 | 320 | 35-95 | 28-95 | 45-55 | 11.7 | 2256×2100×1960 |
Mini hammer crusher
Mini hammer crusher Working Principle
When the hammer crusher is working ,the electric motor drives the rotor and the rotor moves, making the hammer rotate in high speed. The materials are crushed in the crusher by the rotated hammer. The end products come out via the strips of the screen under the machine. The size of the granularity can be adjusted by changing the gap among the screen strips.
Mini hammer crusher Advantages
1.High production and high crushing ratio.
2Low power consumption, homogeneous particle size.
3.Simple, compact and light mechanical structure.
4.Low investment cost, easy management.
Mini hammer crusher specifications
Model | Max. Feeding | Output | Capacity | Motor Power | Weight |
PC400×300 | 100 | <15 | 3-10 | 11 | 0.86 |
PC600×400 | 120 | <15 | 8-15 | 22 | 1.55 |
PC800×600 | 150 | <20 | 10-40 | 55 | 4.8 |
PC1000×800 | 200 | <30 | 16-65 | 110 | 8.1 |
PC1300×1200 | 280 | <40 | 50-200 | 240 | 14.8 |
PC1600×1600 | 350 | <50 | 100-350 | 480 | 37.5 |

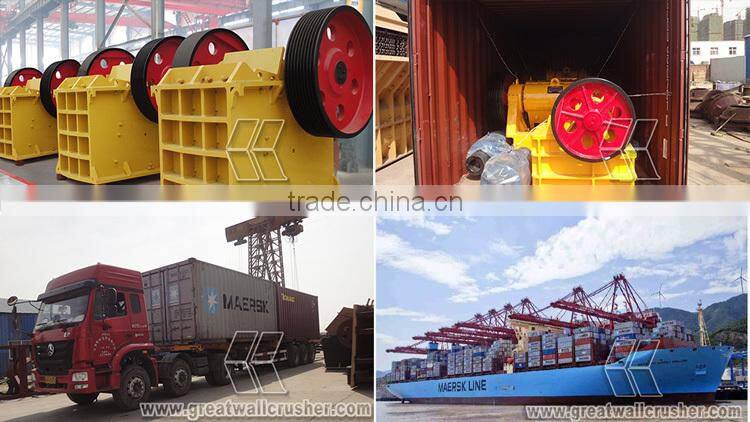

The machine is fixed tightly when it is sent to the port by professionale truck. Before shipped, it is covered by waterproof material to avoid moisture and rough handling.
With more than twenty years' history, Zhengzhou Great Wall Heavy Industry Machinery Co.,Ltd. is a manufacture which specialized in R&D, manufacturing and selling big and middle size heavy industry machinery. Since establishment, we make a good image in the market with scientific management, qualified products and perfect service.
Now we have domestic top ranking production equipments and precise testing instrument, each process of products is strictly inspected to guarantee the products to achieving high ex-factory standard. Besides, we cooperate with many famous universities and scientific research institutions, so that can make technical warrantee for the products in it's developing, updating and improving.
"Persons of ability guarantee the quality". Our company takes in persons of ability and gives training to the staffs annually to their quality and skill to meet the development of the company.With the right of importing and exporting, the company owns an international trading department which is specialized in sales and exports, we provide the best service to the foreign clients.
During the past years, we stick to "Honest, truth-seeking, innovation and hard working". To keep "Great Wall" brand, we will improve ourselves and try our best to make perfect products and the best service.
1.Pre-sales Service
Offering comprehensive technical and business consultation services;
Proposing th e most suitable scheme and equipment for our clients;
Designing and fabricating targeted products according to the special requirements of clients;
Training periodically high qualified service technician.
2.After-sales Service
Highly inspecting equipments in every working procedure, quality comes first;
Fast & Safe Delivery;
Assisting our clients for foundation construction of equipments;
Dispatching engineers to install and debug equipments;
Training the first-line operators on site;
Regularly visit clients to solve production problems;
Providing life-long maintenance service;
Providing technical exchanging;
1. We are Manufacturer (Not Dealer):
All machineries from Great Wall Heavy Industry Machinery CO., LTD are made by ourselves, with good quality, Competitive price and assured full after service.
2. If you are new for this business:
We can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.
3. We’d like to recommend a suitable model for you and send you a best quotation. So please give us this information about your requirement in your enquiry:
1. What is the raw material to be processed? And maximum feeding size of raw material?
2. What is the required output size after crushing?
3. How many tons per hour do you want?
Do not hesitate send us inquiry for more details about the Mini Mineral Crusher.
