Low Price Jaw Crusher Pe-150, Pe-250 Jaw Crusher

"Great Wall Make Great Machine"

Low price  jaw crusher pe-150, pe-250 jaw crusher

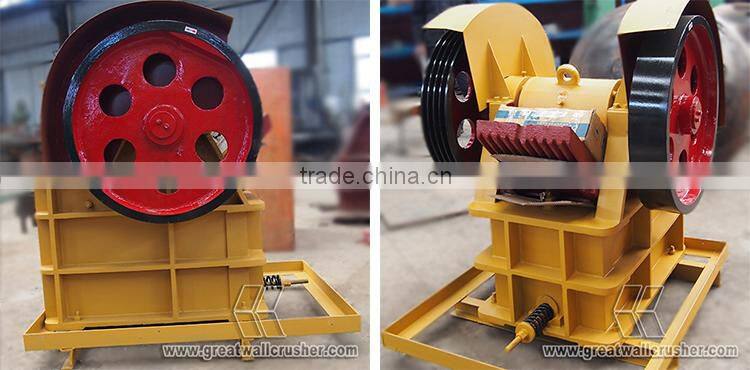

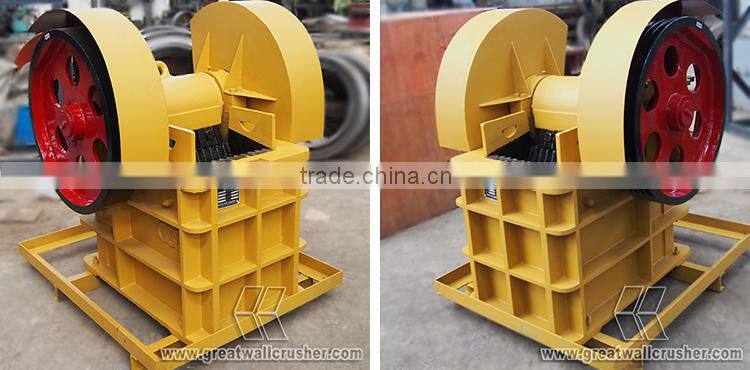

I.  PE-150 Jaw Crusher Introduce

PE-150 jaw crusher is a small type jaw crusher. PE-150 jaw crusher is widely used in small scal crushing or laboratory crushing. It has small dimension and capacity. The main specifications of PE-150 jaw crusher as follow:

Maximun feeding size: 125 mm

Output size: 10-40 mm

Capacity: 1-3 tph

Overall dimension: 896×745×935 mm

Weigh: 0.85 t

II. PE-150 jaw crusher Advantages

1. High quality, reach the international standard

2. Good particle size, the crushing cavity and jaw plate tooth have been designed specially.

3. It is well suit for running in very poor working environment.

4. Convenient to move, low noise

5. Strong adaptability to materials, wide market

6. A single machine saves 15%~30% of energy consumed and the system can save over half the energy consumed

III. PE-150 jaw crusher Usage and Application

PE 150x250 Jaw Crusher is widely used in mining, building materials, chemical industry, metallurgy and so on. It is suitable for primary and secondary crushing of all kinds of minerals and rocks with compressive strength less than 320 MPa,such as iron ore, copper ore, gold ore, manganese ore, river stone, gravel, granite, basalt, minerals, quartz, diabase, etc.

IV. PE-150 jaw crusher Structure and Working Principle

Structure
The PE-150 jaw crusher is mainly composed of frame, fixed jaw plate,movable jaw plate, left and right guard plates, movable jaw, eccentric shaft,toggle plate, adjustable base, adjustable screw stem, adjustable wedge block, fitting of tension spring and so on.

Working Principle

In this type of crusher, reduction takes place between a stationary jaw plate and a moving jaw plate. The angle between fixed jaw and movable jaw becomes smaller when the moving jaw runs down, then the materials are crushing into pieces. It becomes bigger when the movable jaw runs up. The movable jaw plate leaves the fixed jaw plate under the action of tension rod and spring, and then the end products come out from the crushing cavity. The machine is amongst the advanced and reliable in the market and highly production in a variety of applications.

V.  PE-150 jaw crusher Main Specifications

The following picture shows the working site pircture of jaw crusher. Jaw crushers are always at the very front of the produce line. The material is fed into jaw crusher, and crushed primarily. Then the material is transported into cone crusher or impact crusher for fine crushing.

The machine is fixed tightly when it is sent to the port by professionale truck. Before shipped, it is covered by waterproof material to avoid moisture and rough handling.

All products of Great Wall Heavy Industry have approve the ISO CE certificate.

With more than twenty years' history, Zhengzhou Great Wall Heavy Industry Machinery Co.,Ltd. is a manufacture which specialized in R&D, manufacturing and selling big and middle size heavy industry machinery.  Great Wall Heavy Industry offers a versatile, full line of jaw crushers available in several models for portable or stationary mounting. The variety of materials offered, their efficiency and safety make them ideal not only for sample preparation in laboratories and industrial plants but also suitable for on-line quality control of raw materials. As a small jaw crusher,  PE-150 jaw crusher, combining advances in safety and productivity to optimize your quarry or mining operation, is an ideal type for small scal crushing.

Clients' questions and answers.

Q: what are the wear parts of jaw crusher? Do wear parts of Great Wall Machinery have any advantages?

A:  In most cases, the quick-wear parts includes as follows: toggle plate, side fender, mobile crusher plate, fixed crusher plate, spring, belt, and toggle plate seat. All of our products are made of special material, expecially for quick-wear parts, which are composed of high manganese steel. Moreover, our company provide wear parts anytime in case of long time consumption.

Q: I need a jaw crusher with 50 output size and 80 tph, which type jaw crusher is better?

A: According to your demands, pe 500*750 is suitable. The maximum feeding size of pe 500*750 is 425mm. I have no idea whether the specifications meet your production demand. If not, contract us, we will recommend a new one.

Do not hesitate send us inquiry for more details about the PE-150 jaw crusher.
