The Jaw Crusher , Jaw Crusher 50 - 100 Tonnes

"Great Wall Make Great Machine"

 The jaw crusher , jaw crusher 50 - 100 tonnes

The Jaw crusher Specifications

1.Large capacity and high efficient
2.High Steel Manganese structure and abrasion resistant
3.Long service life
4.Carefully design and elaborate to ensure a satisfied experience

I. The jaw crusher Usage and Application

The jaw crusher is very common in the field of Mining and quarry. This kind of stone crusher is widely used in mining, building materials, chemical industry, metallurgy and so on. Jaw crushers suitable for primary and secondary crushing all kinds of minerals and rocks with compressive strength less than 320 MPa.

II. The jaw crusher Structure and Working Principle

Structure

The jaw crusher is mainly composed of frame,  fixed jaw plate, movable jaw plate,  left and right guard plates,  movable jaw, eccentric shaft, toggle plate,  adjustable base,  adjustable screw stem,  adjustable wedge block,  fitting of tension spring and so on.

Working Principle

The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves . So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.

The left following picture shows the crushing cavity of The jaw crusher.

III. The jaw crusher Advantage and Main Specification

Advantage
1. High degree of automatic operation; the entire production line requires almost no manual operation except for machine starting and stopping, routine maintenance.
2. High productivity, low investment, and good appreciation.
3. Regular end product granularity, good grain shape, and low powder.
4. Adopting high advanced central control system to ensure security and reliable operation of the entire production line.

The following picture shows the production progress of The jaw crusher.

Main specification

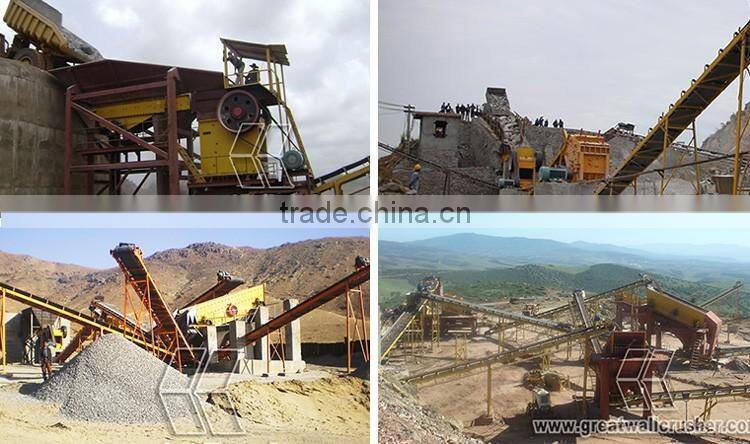

The following picture has shown a whole production line. The whole product line includes vibrating feeder, jaw crusher,  impact crusher, vibrating screen and belt conveyors. The raw material is fed into jaw crusher through vibratong feeder for primary crusher, then is transported to impact crusher for fine crushing, then the material is transported fo vibrating screen to be separated into different sizes. The bottom right picture is another complex whole production line.

Ways of Packing:
1.Sand blasting, coat with high quality paint;
2.Product wrap by PP-Bubble
3.Load container, Spear Parts in wooden case.

Transportation:
1. By sea Freight;
2. MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before boat arrival

Great Wall Company is a professional machine manufacturer with more than 30 years' experience, which specializes in manufacturing all kinds of large and medium sized heavy industry machines. The company not only has established system of designing, testing, inspecting and measuring, but also all kinds of modern production equipments, such as casting , heat treating, welding, machining and so on .

Great Wall Company has professional technology and great production strength, which can meet customers' growing demands. We will spare no efforts to keep improving ourselves to develop our company to be a well-known international enterprise with core competitiveness.

We can not only provide wholeheartedly service but also longtime warranty after sale. Before sale, our professional engineer would customize the client according to the production situation and demand. The machine we recommend is NOT the most expensive, NOT maximum profit for us, but the suitable. We insist the concept of “win-win” at the basic of the maximum profit for client. Our aim is to ensure the client to expend least money but create the greatest profit.

After sale, the machine has the 12 months warranty. But one different point from other manufacturers is we provide the professional technology support in the production progress. Any problems about the production, our senior engineer would help to solve them.

1. We are Manufacturer  (Not Dealer):

All machineries from Great Wall Heavy Industry Machinery CO., LTD are made by ourselves, with good quality, Competitive price and assured full after service.

2. If you are new for this business:

We can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.

3. We’d like to recommend a suitable model for you and send you a best quotation. So please give us this information about your requirement in your enquiry:

1. What is the raw material to be processed? And maximum feeding size of raw material?

2. What is the required output size after crushing?

3. How many tons per hour do you want?

Do not hesitate send us inquiry for more details about the Jaw crusher.
