1600C High Temperature Ceramic Fiber Thermal Insulating Module
- Qingdao
- T/T Credit Card
You May Like
Product Details

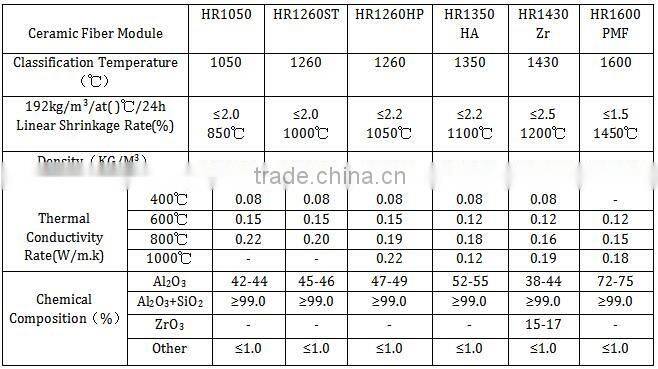

| Place of Origin | Henan, China | Brand Name | HENGRUI | |
| Model Number | 1600c | Application | Refractory | |
| Grade | HA (High Aluminum) | Dimensions | 300x300x300mm | |
| Working Temperature | 1000-1300 | Fiber Diameter | 3-5um | |
| Thermal Conductivity | 0.075 | Shrinkage (1800℉, 3h) | 3%(24hours |
Product Description

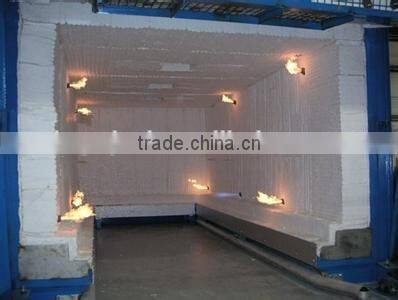

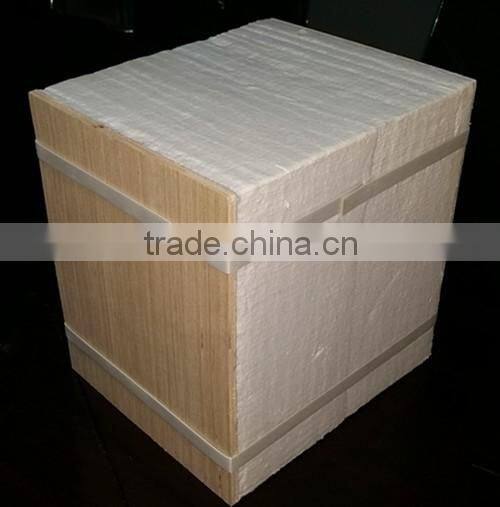

Hengrui ceramic fiber module is made of Hengrui ceramic fiber blanket which is folded or cut by experienced professional technicians. It use special equipments for producing module to confirm the precise dimensions and keep smooth surface of module, designed for various of thermal furnaces. The products have some characteristics such as reliable quality, quick installation, superior insulation properties.
Hengrui ceramic fiber module use the enhanced M-type anchors, which have greater strength, closer to the cold face. It can make sure the strength in high temperature. The fixed link was welding together with the high quality heat-resistance steel and stamping butterfly plate. The two round fixed link were embedded in the module system, enlarged the bearing area and ensured the firm of anchor system.
1.Low bulk density,low thermal conductivity.
2.Resistance to heat-shock, ability to resist the scouring of airflow.
3.Excellent mechanical strength ,built-in anchor, safety performance.
4.Easy to install. after installing the lining form a seamless space, good insulation effect.
Packaging
Selling Units: Single item
Single package size: 30X30X30 cm
Single gross weight: 5.94 KG
Package Type: Cartons, Trays.
Custom packaging
Placed on pallets, wrapped waterproof membrane.
Package
Intermediate products with each isolation plate

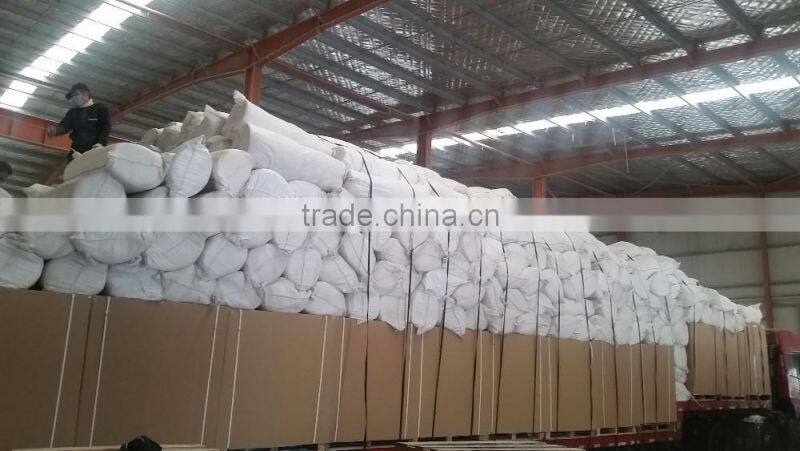

Loading and delivery
Packaging tray for easy transport and unloading.
