HD DVB-S/ S2 & DVB-C Satellite Cable Combo Receiver

FOB Price

US$ 10 - 20 / Piece

2000 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

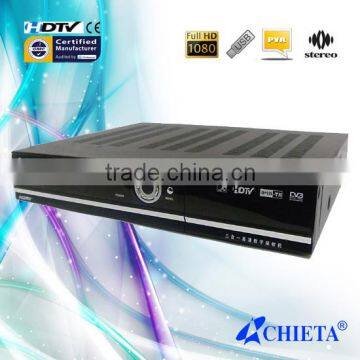

HD DVB-S/ S2 & DVB-C Satellite Cable Combo Receiver

Product Description

Note: The DMB-TH standard is suitable for China Mainland and Hongkong Market only.

Specification Detail

1. Main Chipset	Sti7100/7101 266Mhz
Flash Memory	64MB
DDR2 Memory	512MB bit+ 512MB bit
2. DVB-S Tuner
IF Signal Input Interface	F-Type, IEC 169-24, female
Input Signal Frequency Range	950- 2150 MHz
RF input Level	-20 ~-75dBm
Demodulator	DVB-S2 (QPSK & 8PSK)
Bandwidth	> 36MHz
LNB Voltage and Polarity	vertical 13V, horizontal 18v
Max.Output Current	500 mA overload protection
Antenna Control	DiSEqC 1.0,1.2, USALS compatible
3. DVB-C Tuner
Frequency Range	49-870 MHz
Input Bandwidth	8 MHz
Input Connection	75 ohm F type, female
Input Level	-75ohm- -20dBm
Compatibility	DVB-C/ITU-j.83 Annex A/C
Support	4QAM, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Symbol Rate	17M
4.Video and Audio
Video Decoding	ISO/OEC 13818-2 (MPEG-2 Video)MP@HL,
	ISO/IEC 14496-10 MPEG-4 AVC/ H.264 HP@L4
Video Format	4:3, 16:9 Letterbox
Video Output	HD, CVBS, RCA
Video Resolution	1080p, 720p, 576p, 480p, 1080i, 576i, 480i
Audio Decoding	ISO/IEC 13818-3 (MPEG-2 audio/ Musicam), Dolby AC-3, Dolby Digital+
Audio Mode	Stereo/MONO/Left/Right
5.Audio and Video Output
Digital Video Output	HD
HD Video Output	YPbPr
Video RCA	1 Output
Audio RCA	2 Outputs(Left and Right mode)
Digital Audio Output	Optical Fiber S/ PDIF interface
RS-232	DB 9 Pins
