Home > Products > Dummy Load/Termination > DC-3G, N (male) Terminating Load 50 Watt

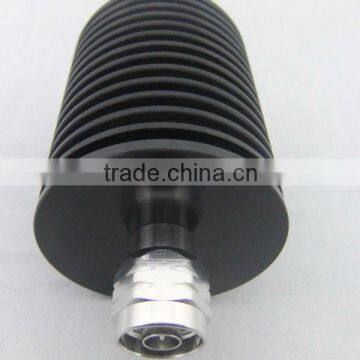

DC-3G, N (male) Terminating Load 50 Watt
- Shanghai/Shenzhen/Ningbo
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Anhui, China | Brand Name | SETSAIL | |
| Model Number | YFTX-RT-50W-3-N-M |
1. Standard Export Packing Cartons
2. Dimensions of Carton: 450mm*350mm*340mm
3. Quantity in each Carton: 50pcs
4. Gross Weight of Each Carton:30kg
Product Description
Specifications
1. We are Manufacturer of RFLoad2. OEM Service is available
3. 200pcs in stock
4. Best Price and Service
5. Fast Delivery
Applications: DC-3G, RF 50w Dummy Load Termination (N or 7/16 DIN connector)
1. DC-3000MHz, 50W RF Terminator/ Dummy Load is widely exproted to Middle East , India, North American, Australia, South American, Southeast Asia. In 2008, Setsail has successfully exported more than 5,000 pcs to one of India customers, which is used in ZTE's IBS and BTS projects in Pakistan. Products quality has been confirmed and accepted by oversea customers. The annual exporting quantity of this 50W RF Terminator Dummy Load is around 10,000pcs, especially to some big developping countries, like India, Paskitan, Brazil.
2. DC-3000MHz, 50W RF Terminator/ Dummy Load is widely used in below fileds:
A. Mobile Communication Network Optimization and In-door distribution system.
B. Cluster communication, satellite communication, shortwave communication and hopping radio.
C. Radar, electronic navigation and electronic confrontation.
D. Aerospace equipment systems.
3. DC-3000MHz, 50W RF Terminator/ Dummy Load is just one of SETSAIL's RF Load Products Line. SETSAIL is capable of manufacturing and providing 1W, 2W, 5W, 10W, 15W, 20W, 25W, 30W, 50W, 100W, 200W, 300W, 500W RF Dummy Load. The Frequency can reach DC-3G, DC-6G, DC-8G, DC-12.4G ,DC-18G, DC-26G, DC-40G. RF Connectors can be N-type, SMA-type, DIN-type, TNC-type and BNC-type.
Technical Specifications:
Model: | YFTX-RT-50W-3-N-M |
Frequency | DC-3GHz |
Power Capacity | 50W |
Return Loss | 20dB |
VSWR | 1.20:1 |
Impedance | 50ohm |
Connector | N-male |
Temperature | -40 deg to +80 deg |
Weight | 0.25kg |
Note: Specifications can be changed according with customers' requirements.
Related Products:
698-2700/800-2700/800-2500MHz, N-female RF 3dB Hybrid Coupler/Hybrid Combiner
698-2700/800-2700/800-2500MHz, DIN-female RF 3dB Hybrid Coupler/Hybrid Combiner
698-2700/800-2700/800-2500MHz, DIN-female RF Power Splitter/Divider (BTS used)
DC-3GHz, 1-200W, N/DIN Connector RF Fixed Coaxial Attenuator
DC-3GHz, 1-200W, N/DIN Connector RF Dummy Load/Termination Load
Company Profile
Hefei Setsail Telecom,Co,Ltd (established in 2002) is an Professional Manufacturer of RF Passive Components:Power Spliter, Directional Coupler, 3dB Hybrid Coupler, Combiner, Dummy Load/Termination, Attenuator, Duplexer, Isolator, Cable, Connector and Antenna. 1. Hefei Setsail Telecom,Co,Ltd is established in 2002.located in Hefei National Hi-tech Industry Development Zone.We focus on Microwave Technology Research,RF,Microwave Components and System Industry Development.Our products are widely used in communication network,satellite orientation,radar and military field.We offer a highly diversified product line that serves top tier telecom,satellite companies. 2. Products include 10 series and 100 designs with their own property right and authority approval.The products line have Hybrid Coupler,Power Splitter,Directional Coupler ,Coaxial Attenuator,Coaxial Termination,Cable Assembly,Connector,Arrester,Filter,Duplexer,Combiner and so on .Customer designs (OEM/ODM) are also available. 3. Headquarters of Setsail is located at hi-tech developing district in Hefei Anhui,includeing two factories, At the same time,Setsail's market network has been all over the world. 4. Setsail company has a tremendous fellowship that is compased of many high-level technologists .And also has established a research institution which cooperating with some famous universities.(University of Science and Technology of China.) 5.All the staffs are filled with confidence ,attending the market cpmpetition and offering clients the exquisite technology,reasonable price,excellent quality and best service.
