Coaxial RF Terminations/Dummy Load, 100W,200W
- FOB Shanghai
- T/T Credit Card
You May Like
Product Details
Place of Origin | Anhui, China | Brand Name | SETSAIL | |
Model Number | YFTX-RFT-200-3G-NC |
Standard Export Cartons 450*350*340mm RF terminations
Product Description
Specifications
1. Manufacturer of :RF Termination/load2. high-power impact RF terminations
3. excellent in-band flatness
4. low VSWR

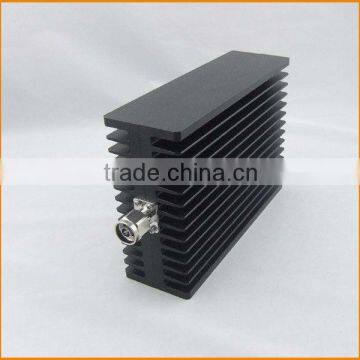

Product Name: 200 watts, N-male/female, DC-3G, RF Dummy Load/Terminations
Mechanical Specifications | |
Model Number | YFTX-RFT-200-3G-NC |
Frequency(GHz) | DC-3G |
VSWR(max) | 1.15 |
Connector | Brass Nickel Plated |
Male Pin | Brass Silver Plated |
Female Pin | Brass Silver Plated |
Temp Range | -55°C~+125°C |
Dimensions | 200mm*142mm*64mm |
Nominal Impedance: 50ohm
Average Power:200W
Peak Power: 1KW (5us pulse width with 2.5% duty cycle)
Connector Type: N-male or N-female or DIN-male or DIN-female
Notes:
1. Dimensions Tolerance: ±0.2
2.Dimensions and specifications refer to connector type N unless otherwise specified.
3. Custom designs available.
We are capable of manufacturing and providing 1W, 2W, 5W, 10W, 15W, 20W, 25W, 30W, 50W, 100W, 200W, 300W, 500W RF Dummy Load. The Frequency can reach DC-3G, DC-6G, DC-8G, DC-12.4G ,DC-18G, DC-26G, DC-40G. RF Connectors can be N-type, SMA-type, DIN-type, TNC-type and BNC-type.
