curtain wall aluminum honeycomb panel company

Stracture of honeycomb panel:

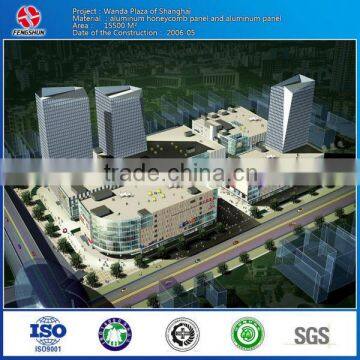

Recent Projects:

Fengshun Aluminum honeycomb panel apply aluminum panel,ti alloy panel,stainless steel panel etc.As material of surface and bottom panel and aluminum honeycomb core in the middle,the honeycomb lay structural panel was made after high temperature and strong press.It has the feature of light,high strength,good hardness,sound proof and hot proof.Honeycomb panel is the material of aeronautics and astronautics,it is gradually used in the field of civilian nowadys such as construction,vehicles,billboard and other trades.Fengshun company has brought in the automatic complex manufacturing line from Germany,applied the double-component hot glue coating complex technology,so that the traditional manual single-plate production method has been changed,the production efficiency has increased and quality of products has reached the international advanced level,ate the same time,a variety of curved surface panel shape can fully achieve the perfect creativity of architect.

Specialty of the products:

1.It has high strength which can withstand more than 8000N/m2 of wind load.

2.Good hardness and light weight reduces a great deal of support loading of building.

3.Good sound-proofing,air sound insulation factor is 29dB.

4.Good thermal insulation and fire resisitance,thermal conductivity is 0.1613 W (m-k).

5.High surface smoothness,easy to install.

6.Wide varieties,single curved plate,double curved plate etc.

7.General thickness:8mm,10mm,12mm,15mm,20mm,25mm

Marerial of honeycomb panel:

Surface panel:alloy aluminum panel,Ti panel,stainless steel panel,etc.

Core material:apply six angles 3003 type aluminum honeycomb side core.

Alunimum thickness:0.04--0.06mm,length:5--6mm.The core consists of many crowded interconnecting honeycombs,just as many small H-beams which can withstand dispersedly the pressure came from the direction of surface panel,with the help of this structure,strength of withstanding pressure and high surface amoothness are ensured.

Application:

Architure,transportation,building curtain wall,doors of a vehihcle,train,partition,ceiling panel,ships,racing boat,train crown panel,buses,billboards,floor constructional material,etc.
