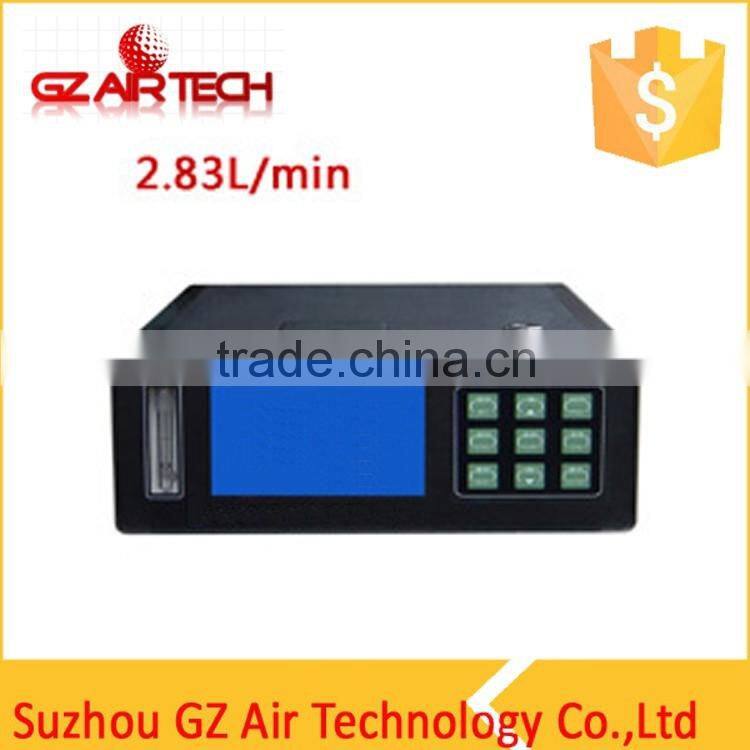

CLJ-B2 Particle Counter for Clean Room

Clean room / Particle counter

CLJ-B530 flow of dust particle counter is a new type of dust particle counter, a unit of measurement of the volume of air in a clean environment in the dust particle size and number for 20 minutes, will be able to complete a cubic meter of sampling quickly and accurately, can quickly verify the clean room cleanliness class and print the test results, in full compliance with the ISO14644 and the 2010 edition of the GMP standard. The product uses a very friendly user interface, high resolution and large size color touch screen, easy to operate, easy to use. At the same time, the instrument can be the number of particles and the changes of the synchronous monitoring of 8 particle channel, data storage up to 2560 groups. The typical application of clean workshop air particle testing, indoor air quality, evaluation of particle, is also used to filter performance testing and evaluation of clean degree.

The characteristics and performance

1.Flow: 2.83 L / min

2.At the same time display eight particle channel

3.Results output: ISO14644 and GMP 2010 Edition

4.Large capacity data storage (Group 2560 data)

5.High resolution 7 inch color touch screen

6.Internal audio alarm

7.Built in thermal printer

8.Stainless steel shell

9.The main parameters:

10.Detection range: 100 ~ 300000 (GMP, A, B, C, D)

11.Eight channels: 0.3, 0.5, 0.7, 1, 2, 3, 5, 10 (m)

12.Sampling period: 1 ---59 minutes and 59 seconds (optional: 5L to 3000L)

13.Self purification time: less than 10min

14.Working environment temperature: 10 ~ 35 degrees, relative humidity is less than or equal to 75%

15.Source: built-in vacuum air pump, flow control

16.Print function: built-in printer, print count results

17.Light and life: more than 30000 h semiconductor laser

18.Maximum allowable concentration: 35000 a / L sampling

19.The counting result can be converted into m3 and real

20.Dimensions (W * L * H):215 x 500 x 240 (mm)

21.Power consumption: 250W

22.Weight: 13Kg

23.Power supply: 220V + 10%, 50Hz + 2Hz
