Home > Products > Toggle Switch > 3-way on off on Momentary Toggle KN1-103
3-way on off on Momentary Toggle KN1-103
Negotiable
/ Piece
500 Pieces(Min. Order)
- Ningbo/Shanghai
- Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Wanshfa | |
| Model Number | KN1-103 | Max. Current | 5A | |
| Max. Voltage | 250V AC | Mechanical Life | More than 10000cycles |
Product Description
Specifications
3-way on off on momentary toggle KN1-1031.6.5mm thread hole
2.On-off-on control
3.1P 3terminals
4.2A 250V AC 5A 120V AC
3-way on off on momentary toggle KN1-103
Specification:
| Rating | 2A 250V |
| Contact resistance | ≤50mΩ |
| Insulation resistance | ≥100mΩ |
| Withstand voltage | 1500VAC |
| Switching life | ≥10000cycles |

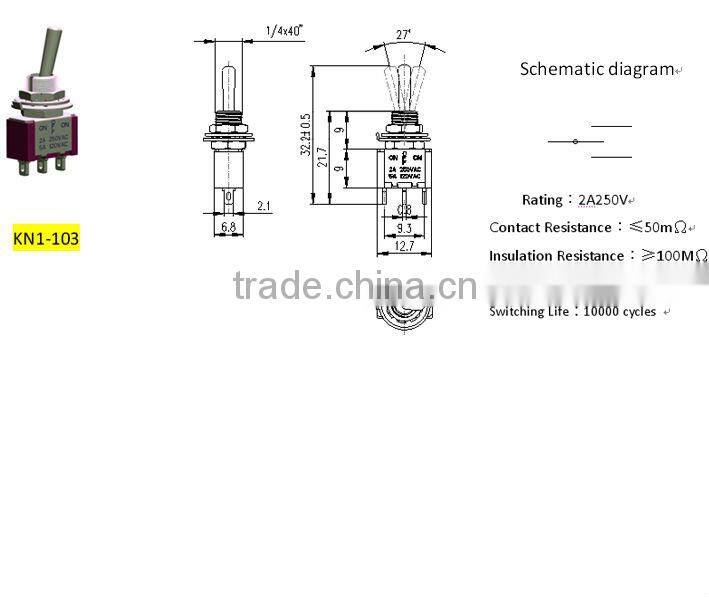

momentary toggle switch drawing:

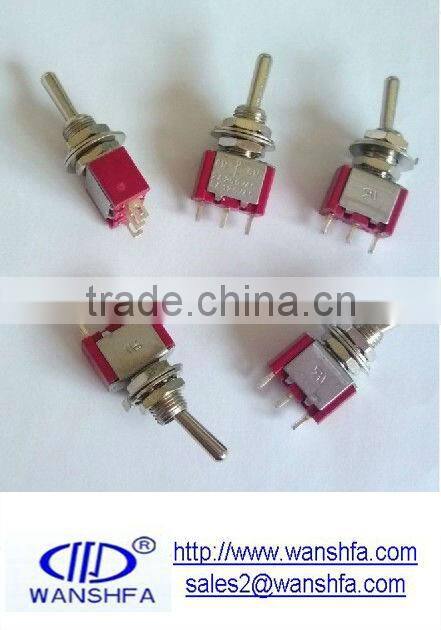

Toggle switch on-off-on photo:
