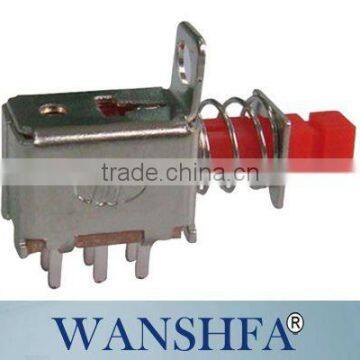

Push Switch PS-22F05
- Ningbo/Shanghai
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | WANSHFA | |
| Model Number | PS-22F05 | Max. Current | 0.5a | |
| Max. Voltage | 50V |
Product Description
Specifications
Push Switch PS-22F051.Strict quality control,Prompt delivery
2.ISO9001
3.The wires are UL, CSA, CCC or VDE certificated
Push Switch PS-22F05
Introduction:
Push switch PS-22F08. 15 years' experience of manufacturing in this field. Design as your requirements.
Push switch External AppearanceVisual measurement: surface of metals cleanness, no rust stain, no cladding shell off
Temperature-25~ +70°C
Relative Humidity( 40°C) ≤ 95%
Normal Load 0.1A DC30V
Contact Resistance ≤0.05Ω
Insulation Resistance ≥100MΩ
Travel0.25±0.05mm
Service Life 100,000 Cycles
Operating Force2N
Specification:
Rating 50V DC 0.5A Contact resistance ≤50mΩ Insulation resistance ≥100mΩ Withstand voltage 250VAC Switching life ≥10000cycles

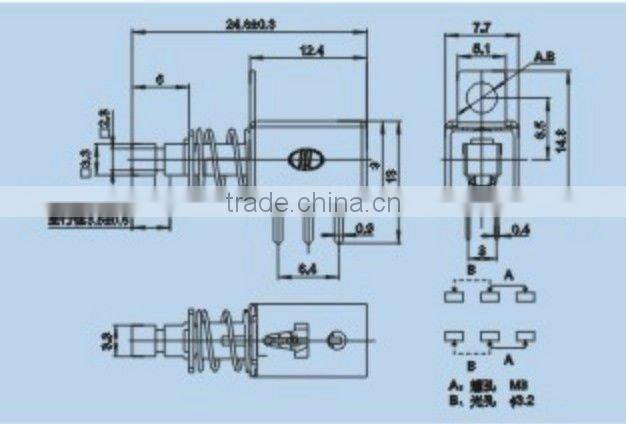

Outlook:
