Home > Products > Big Bobbin widing machine > Durable Service Polyester Yarn Winding Machine/Intermingled Mixing Machine
Durable Service Polyester Yarn Winding Machine/Intermingled Mixing Machine
US$ 10,000 - 40,000
/ Set
1 Set(Min. Order)
- Shanghai
- Money Gram Credit Card
You May Like
-
New Coming Fiber Yarn Winding Machine/Polyester Yarn Winding Machine
-
Good Price Paper Bobbin Winding Machine/paper Laminating Machine
-
Hot Selling!!! 10 Inch Big Bobbin Winding Machine/Paper Bobbin Winding Machine
-
Top Quality 10 Inch Bobbin Winding Machine/Paper Bobbin Winding Machine
-
High Quality Bobbin Winding Machine for Thread
-
TS008D Bobbin Winding Machine
Product Details
| Condition | New | Application | Big Bobbin Widing, Winding yarn on Big Bobbin | |
| Production Capacity | 300-1000Meter/min | Place of Origin | Jiangsu, China | |
| Brand Name | TANGSHI | Model Number | TS008D | |
| Voltage | 380-400V 3 phases, 380V | Power(W) | 0.18KW/Spindle | |
| Dimension(L*W*H) | 1920 X 850 X 1650-4Spindles | Weight | 300KGS /section | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Machine Application:

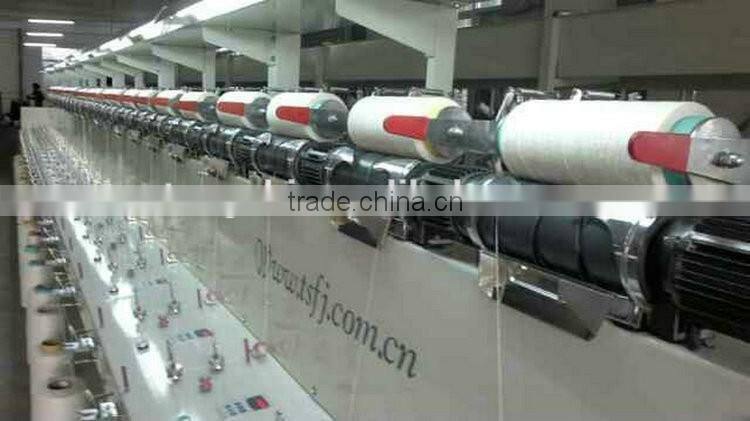

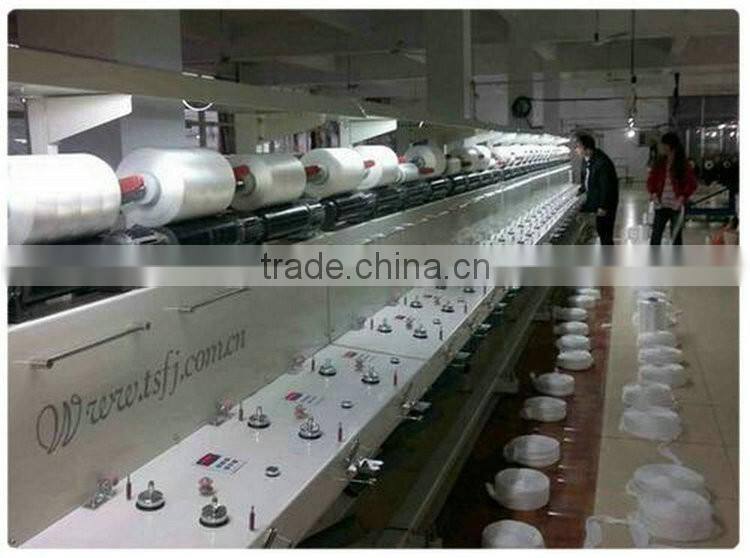

TS008D Big Bobbin Winder, it’s for high speed yarn winding or rewinding using, suit for winding like Fiber yarns, Cotton yarns, FDY, Polyester yarns and etc, and it can take up with Conical Cone or Tube bobbins. It has the feature of High Efficiency and well take-up finished shape, can alleviate the intensity of labour for next processing work.
Specification:
| Bobbin type: | 10'' (280mm~300mm) |
| Layout: | ONE-side, can be 36 spindles |
| Power Supply | Three phases 380V 50/60HZ |
| Driving | Every spindle per motor |
| Power Consumption | 0.18KW/spindle |
| Take-up package | Tube Bobbin / Conical Cone |
| Yarn tension and waxing device | Every spindle has a yarn tension |
| Auto Stop Device | Each spindle install auto stop device |
| Electronic Anti-Stack | Inverter Control |
| Cleaner device | Every spindle has a Mechanical Knife yarn cleaner |
| Electronic Yarn Cleaner | Optional installed |
| Air Splicer | Optional installed |
| Blower cleaner | Optional installed |
| Lighting System | Optional installed |
| Dimensions | L 1920 x W 850 x H 1650 mm/Section |
