Factory Direct Sell Ore Sand Making Machine

Factory direct sell  ore sand making machine

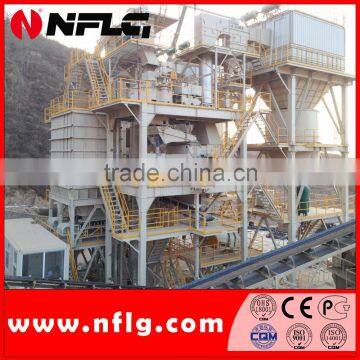

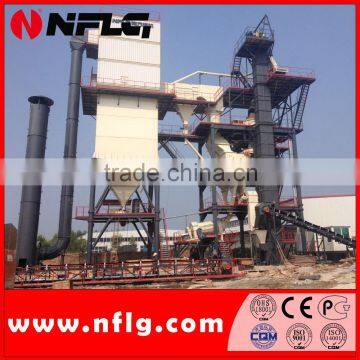

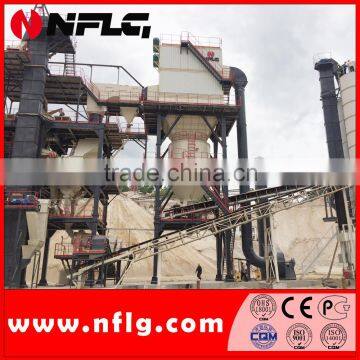

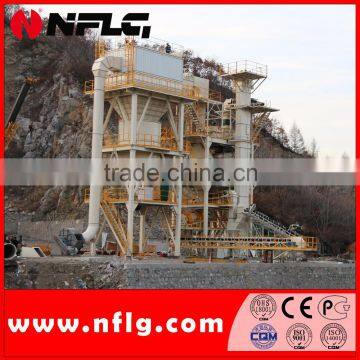

1. Brief introduction for  ore sand making machine


Ore sand making machine  developed by NFLG makes breakthroughs in the vertical-shaft crushing, air screening and other key technologies and uses the five-hole impact rotor structure, the state-of-art technology to crush, shape and grind raw materials entering crushers through rotors using the "rock breaking" centrifugal crushing method. This achieves self-generated crushing and high-str Sand manufacturing plant ength self-generated crushing, thereby efficiently improving the particle shapes of finished sand and increasing the output of fine aggregate. The equipment uses the air screening technology to achieve perfect classification on transfinite particle size, finished sand and sand powder, thereby maximizing the screening efficiency, and uses intelligent control to make the fineness modulus of finished sand adjustable. In addition, the equipment uses the dust collector technology with offline ash removal pulse to efficiently control the content of rock powder in finished sand and operate the whole system in a closed negative pressure environment, thereby realizing the value ideas of green and intelligent sand making for environmental protection.


2. Characteristics for  ore sand making machine

a. US7 vertical-shaft impact crusher
	Five-hole impact rotor structure The unique material throwing hammer and T-shaped structure significantly increases the output of particle sizes ranging between 0.15mm and 0.6mm. The particle shape improves significantly, with the void ratio less than 42%. The service life of a five-hole impact rotor is five times that of a normal rotor.
b. AS Air Screen
	Vibration transmission and dispersion technologies The vibration screen combine separation and selection technologies The intelligent air regulation for air blowers can control wind force during screening and clean the surfaces for sand The new polyurethane mesh can prevent blockage and improve the screening efficiency. The fineness modulus is adjustable with the stability reaching ±0.1.
C.  Sand power separation technology
	The air separation technology with inertial classification requires no energy consumption. The adjustable guide plate design maximizes the air flow path. Corse particles (with a size bigger than 40μm) in the reclaimed sand powder improve the quality of finished sand, thereby ensuring a reasonable graduation of finished sand. The technology can reduce power consumption during dust collection and improve dust collection efficiency.
d.  Dust collector
	The high-efficiency bag dust collector provides the offline ash removal dust collection function to achieve a dust collection efficiency of 99%. Polyester peritoneal filter bags provide excellent filtering performance, with the carbon concentration less than or equal to 20 mg/m³ (under rated conditions). Automatic differential pressure signal feedback brings high-performance automatic pulse control.
e.  Electronic cotrol system
The unique algorithm and control mode are used. The graduation and fineness modulus of finished sand are adjustable, and the sand powder content is controllable. Intelligent management for quick-wear parts is used.

3.Parameters for  ore sand making machine

    NFLG has already obtained 16 national science and technology progress prizes, 45 provincial science and technology progress prizes and several municipal or district-level science and technology progress prizes, together with 17 National Invention Patents, 204 National Utility Model Patents and 5 appearance patents.
