2016 New Design Product of Bitumen Production Plant
- XIAMEN CHINA
- T/T
You May Like
-
Supply Bitumen Batch Plant and Related Products
-
Batching Mixing Plant for Sale With High Quality
-
High Efficiency Bitumen Mixing Factory With Low Price
-
Perfect Quality and High Standard Bitumen Mixing Equipment
-
Supply Bitumen Mixing Machine and Related Equipments
-
2016 New Design Product of Mini Asphalt Drum Mix Plant With Low Price
Product Details
| Condition | New | Place of Origin | Fujian, China | |
| Brand Name | NFLG | Model Number | PLB3000;PLB4000;PLB5000 | |
| Voltage | 380V | Power(W) | 319-945kw | |
| Dimension(L*W*H) | 16000*3000*4200mm | Weight | 120t | |
| Certification | CE, OHSAS18001, CQM, ISO9001,ISO14001 | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

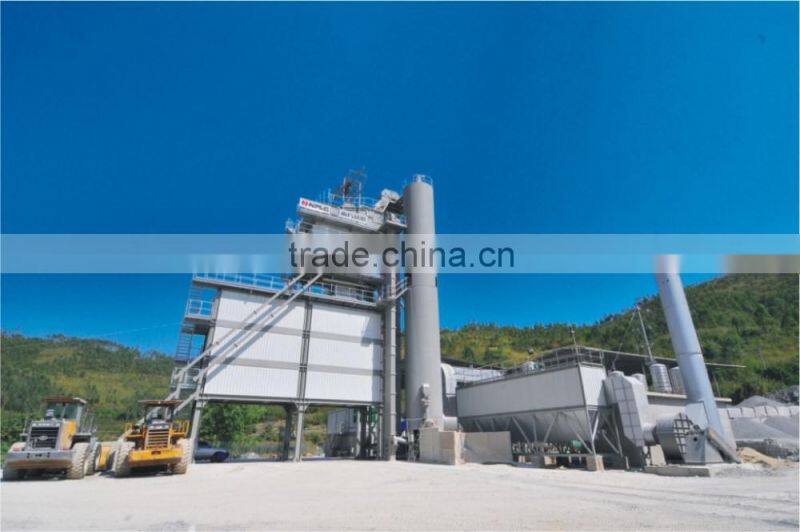

2016 new design product of bitumen production plant
Price Service Product Service Technology Service
The bypass asphalt aggregate mixing equipment developed by NFLG provides a thermal efficiency of 90% and an energy reduction of 15%. The equipment uses the unique online intelligent detection. The burner independently developed by NFLG uses the double frequency conversion, various types of oil, and the original wear-resistant parts imported from Sweden which rank first in the world to provide safe, real-time and fast services.
1. Parameter for bitumen production plant
| Model | PLB3000 | PLB4000 | PLB5000 |
| Capacity (under 5% aggregate moisture) | 240 t/h | 320t/h | 400t/h |
| Cold aggregate hopper quantities | 5 | 6 | 6 |
| Volume | 20 m³ | 20 m³ | 20 m³ |

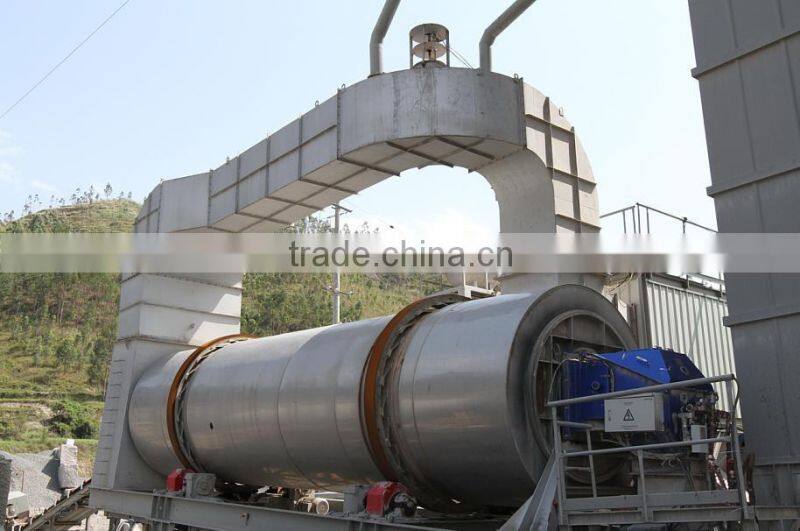

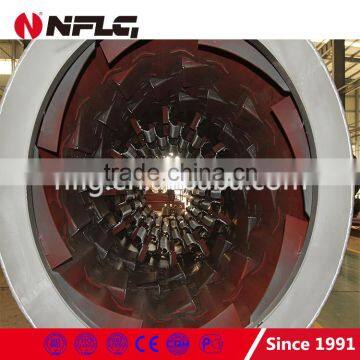

| Drying drum model | GT 240 | GT 320 | GT 400 |
| Length/Diameter | 10 m * 2.5 m | 11 m * 2.8 m | 12.5 m * 2.9 m |
| Fuel | Diesel, heavy oil, natural gas, liquefied petroleum gas | Diesel, heavy oil, natural gas, liquefied petroleum gas | Diesel, heavy oil, natural gas, liquefied petroleum gas |
| Dust Collecting Model | Gravity dust collector+ bag filter | Gravity dust collector+ bag filter | Gravity dust collector+ bag filter |

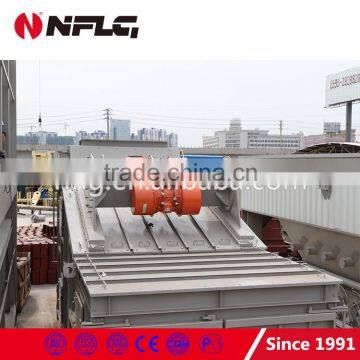

| No. of screen layers | 5 layers | 6 layers | 6 layers |
| Screening area | 40 m² | 59 m² | 77 m² |
| Hot aggregate hopper | 36 m³ | 50 m³ | 70 m³ |
| Aggregate scale | 3250 kg | 4250 kg | 5250 kg |
| Powder scale | 600kg | 750kg | |
| Asphalt scale | 300kg | 500kg | 600kg |

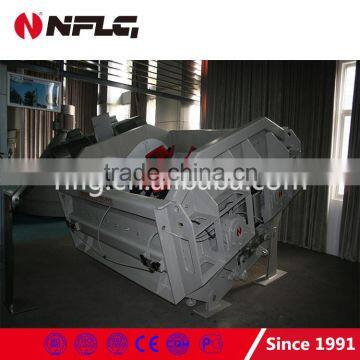

| Mixer capacity | 3000 kg/batch | 4000 kg/batch | 5000 kg/batch |
| Finished product hopper | 220t | 230t | 250t |
2. Characteristics for bitumen production plant
|
