Product Details
| Condition | New | Type | Hollow Block Making Machine | |
| Brick Raw Material | Cement | Processing | Brick Production Line | |
| Method | Vacuum Extruder | Automatic | No | |
| Capacity | 4000-5000 pieces per 8 hours | Place of Origin | Shandong, China | |
| Brand Name | DONGYUE | Model Number | QT4-25 | |
| Voltage | as per local requests | Power | 23.5KW | |
| Dimension(L*W*H) | 3700*2100*2300 | Certification | ISO/CE/SGS, ISO CE SGS | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

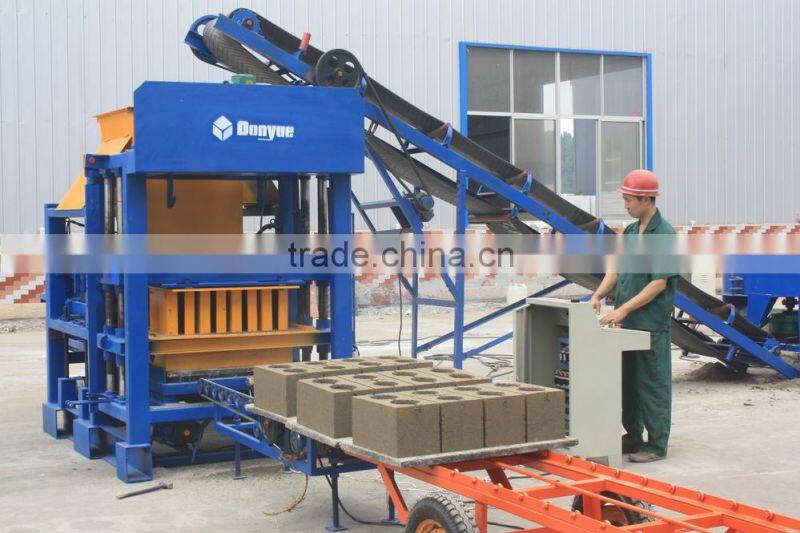

Small QT4-25 full automatic hydraulic brick making machine with low cost
Donyue Group :
QT4-25 full automatic curb block machine production line parameter
Dimension of host machine  | 4000×1900×2320mm  | Host machine power  | 20 KW  |
Vibration Force  | 45Kn  | Vibration Frequency  | 4200r.pm  |
Mould period  | 25S  | The size of the pallet  | 900×650mm  |
Production  | 5760pcs(400*200*200)/8hours  | Pressure of block  | 9Mpa-10Pma  |
Host machine  | |||
1  | 1.5KW*2  | UPPER VIBRATION MOTOR  | Chinese Famous Brandname  |
2  | 3KW*2  | DOWN VIBRATION MOTOR  | |
3  | 1.5KW  | CONCRETE FEEDER  | 220VOLT, 60HZ, 3PHASE AND NEUTRAL  |
4  | 2.2KW  | CONCRETE FEEDER  | |
5  | 2.2KW  | PALLET FEEDER  | |
6  | 2.2KW  | MOULD UP & DOWN  | |
7  | 0.75KW  | Hook  | |
8  | 0.75KW  | BLOCK FEEDER  | |
9  | 0.75KW*2  | STACKER  |
QT4-25 full automatic hollow brick machinery china production capacity
Size(LxWxH)  | Pcs/Mould  | Pcs/ Hr  | Pcs/ 8 Hr  |
400X100X200  | 7  | 630-840  | 5040-6720  |
400X150X200  | 5  | 450-600  | 3600-4800  |
400X200X200  | 4  | 360-480  | 2880-3840  |
400X250X200  | 3  | 270-360  | 2160-2880  |
240X115X 52  | 26  | 2400-2880  | 19200-23040  |
all kind of hollow and solid block  | |||
Raw material proportion of QT4-25 full automatic hollow brick machinery china
1. cement 8-10%, 30%-40%sand , 50%-60% crushed stone
2. cement 8-10% , flyash 30%, sand (stone powder)60%,2 gypsum
QT4-25 full automatic concrete fly ash hollow brick machinery china work area :
workshop: 50-100 square meter
Total land : 1000 square meter( according to your own situation)
