Home > Products > Paver making machine > kerb stone machine

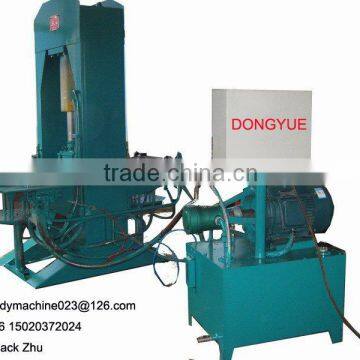

kerb stone machine
- 100 Set / Sets per Month
- Qingdao
- T/T
You May Like
Product Details
| Condition | New | Type | Paving Block Making Machine | |
| Brick Raw Material | Concrete | Processing | Brick Production Line | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 2500-3500 blocks/8 hours | Place of Origin | Shandong, China | |
| Brand Name | DONGYUE | Model Number | DY-150T paver machine | |
| Voltage | clients industrial voltage | Power | 11kw | |
| Dimension(L*W*H) | 2390*2200*2550mm | Certification | CE, ISO | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
kerb stone machineHeat treatment mould
ISO9001/CE/SG
Siemens motor
Better after service ,low price
kerb stone machine
paving stone making machine
paver brick/block machine
1.Product introduction
Our products are mainly producing color blocks/bricks,paver,interlock,etc.
With high pressure,the blocks are of high-density.
1..DY-150TB paver machine main technical parameter
Max pressure | 1500KN |
Total power | 11kw |
Production | 1500-2000 blocks/day |
Machine weight | 3200kg |
Machine size | 2390x2200x2550mm |
Maximum specification(block) | 500x500x150mm |
Working position | Two working positions |
blocks | Can make all kind of paver block,kerbstone,lawn block |
| workshop area : 200m2 , need about 3-4 workers .the office , curing area and stacking area to arrange according your fact status. | |
2..production capacity
Size(LxWxH) | Pcs/ 8 Hr | Size(LxWxH) | Pcs/ 8 Hr |
Paver:200*100*60 | 1800-2000pcs |
Paver:250x250x60 | 1800-2000pcs |
Paver:200*165*60 | 1800-2000pcs |
paver
| 3600-4000pcs |
Paver:225*112.5*60 | 1800-2000pcs | paver | 1800-2000pcs |
Rmarks: we can produce different size blocks according to clients' requirments.
Model | name | picture | size | production/day |
DT-150T | Bloated brick | 200*100 | 2 pcs /mould | |
10 hours | 4000 pcs | |||
Maple leaf brick | 2500-3500 pcs | |||
Brick-shaped | 2500-3500 pcs | |||
Octagonal-shaped brick | 2500-3500 pcs | |||
Rocket brick | 2500-3500 pcs | |||
Tri-Brick | 2500-3500 pcs | |||
Butterfly Grass brick | 1800-2000 pcs | |||
Favi | 2500-3500 pcs | |||
Dutch brick | 200*100*60 | 3500-4000 pcs | ||
Blind brick | 200*100*60 | 2pcs/mould 3500-4000 pcs | ||
Blind brick | 250*250*50 | 2400 pcs | ||
Blind brick | 250*250*50 | 2400 pcs | ||
Curbstone | 1200 pcs |
If you have any question about paver block machne .please do not hesitate contact me .
Sincerely hope we can cooperate with each other.
