Make Various Pavers at the Same Time DY150T Concrete Paver Making Machine
- Qingdao port
- T/T Credit Card
You May Like
-
Interlocking Brick Mold
-
BEST SALES DY150TB Ecological Hydraulic Press for Paver Production
-
DY150TB Hand Press Interlocking Brick Making Machine
-
DY150TB Interlocking Making Machine
-
For Various Paver Blocks at the Same Time DY150T Hydraulic Pressure Machinery
-
Make Various Pavers at the Same Time DY150T Hydraulic Cement Paver Making Machine
Product Details
| Condition | New | Type | Paving Block Making Machine | |
| Brick Raw Material | Sand | Processing | Brick Molding Machine | |
| Method | Hydraulic Pressure | Automatic | No | |
| Capacity | 2000-3000pcs /shift | Place of Origin | Shandong, China | |
| Brand Name | Dongyue | Model Number | DY150T | |
| Voltage | 200v/380v/440v adjustable | Power | 14kw | |
| Dimension(L*W*H) | 1900x1900x1850 mm | Certification | CE/ISO/SGS | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Make various pavers at the same time DY150T concrete paver making machine
DY150T Hydraulic pressure Concrete paver machine introduction:
1. The hydraulic press concrete paver machine uses 4 frame types and 4 locations
2. With the maximum pressure up to 150T, this paver machine can make all kinds of bricks with the length no more than 500mm and the thickness no more than 140mm.

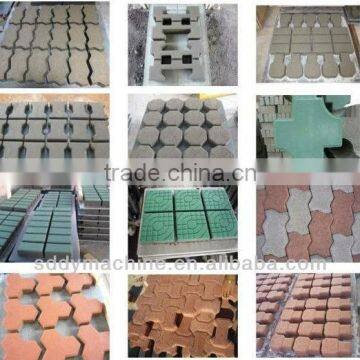

3. It is the ideal equipment to produce bricks of large size. It can produce every kinds of building blocks less than 600 x 400 x 200mm, especially suitable for producing original color or color paving bricks, grass planting bricks,And the bricks made by this machine are extensively used to squares, courtyards, buildings, gardens, etc.
4. DY-150T interlocking brick machine does not need installation. After connecting with power, it can start production.
| DY-150T Paver Machine | |||||
| NO. | Device Name | Specification | power | Unit | Quantity |
| 1 | Block machine (Inc:control box and hydraulic stationc) | DY-150T | set | 1 | |
| 2 | hydraulic station | 13.2 | set | 1 | |
| 3 | Concrete mixer | JQ350 | 7.5 | set | 1 |
| 4 | one standard mould | set | 1 | ||
| 5 | block trolley | set | 1 | ||
| 6 | spare parts and tools | set | 1 | ||
| Optional section | |||||
| 7 | Extra paver mould | set | 1 | ||
| Theoretical production capacity | ||||
| No | Size(LxWxH) | Pcs/Shift | ||
| 1 | 300x300x50mm | 1500-2000 | ||
| 2 | 225x112.5x60mm | 3000-4000 | ||
JQ350 vertical mixer Main parameter
Power | 5.5kw |
Spindle speed | 32r/min |
Per mixing quantity | 0.55m3(750kg) |
Dimension | 35×1250×1200mm |
Weight | 530kg |
Material ratio DY150 T:
8-10% cement, 30-40% sand, 50-60 crushed stone ( you can add some other material by local situation) ,water.
Theoretical workshop area : 200m2 , need about 3-4 workers .the office , curing area and stacking area to arrange according your fact status.
Process of DY150T:
step 1 : mixing material well;
step 2 : fill material to molds by hand;
step 3 : push molds to press machine;
step 4 : press blcoks;
step 5 : lift block from mold;
step 6 : carry blcoks out for drying.
DY 150T Paver making machine : /watch?v=VSILwwobhdM
DY150TB block machine working video on youtube : /watch?v=1WtQyk2tb7A
Dongyue Machinery Group Introduction Video on Yutube: /watch?v=ajPDe3rivQU
Donyue Machinery Group Co.,Ltd(Subsidiary company-LinYi Donyue IMP&EXP Co.,Ltd). is a company specialized in producting Automatic brick machine , aerated concrete block production line, the aerated concrete wall panel production line, autoclaved lime sand brick production line, autoclave etc. A and second-class pressure vessel, aerated concrete blocks, sand-lime brick, panel products, plant asphalt nine series,more than 60 varieties.
Our company designs this series egg laying block making machine according to the customers’ requirement, use the optimize design,reasonable structure, strong feeding materials, strength the pressure. This is one efficiency, economy, suits for minor enterprises.
Now we set up office in India, Indonesia,Vietnam, can supply the best after-sale service for customers
We are a memer of Alibaba Trade Assurance,which can provide a safegard for buyers' payment.
Our Services
1. we provide customized service according to clients' different need.
2. Technical support online service provided.
3. Technical files service provided.
4. On-site training service provided.
5. spare parts replacement and repair service prvided
Any question about DY150T Hydraulic pressure machine,contact with us please,sincere service for you .
SKYPE:yilina123456
ICQ:656 392 329
QQ:2305067556
WhatsApp:+86 151 0661 0882
