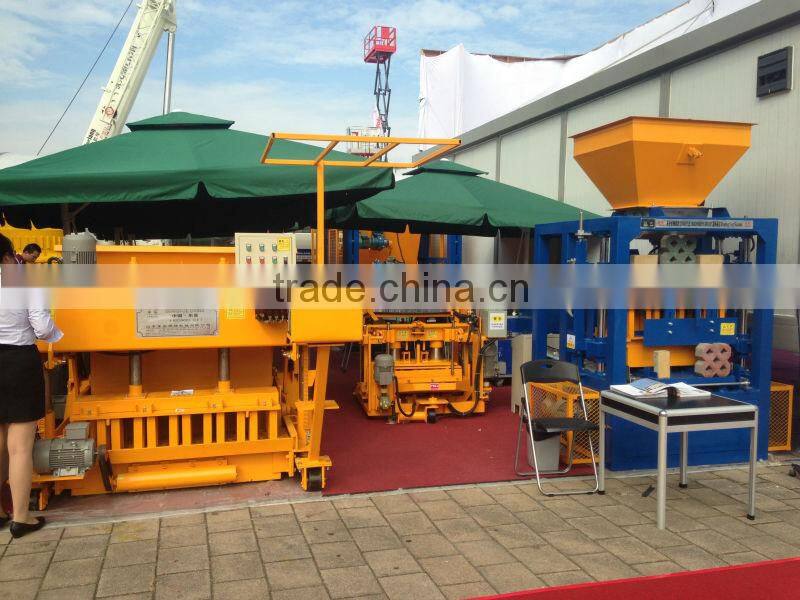

Hydraulic Moving Block Machine DY6-25 Egg Laying Block Machine
US$ 1 - 8,000
/ Set
1 Set(Min. Order)
- qingdao
- T/T
You May Like
Product Details
| Condition | New | Type | Hollow Block Making Machine | |
| Brick Raw Material | Concrete | Processing | Brick Production Line | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 1000pcs/h (420x200x200mm) | Place of Origin | Shandong, China | |
| Brand Name | dongyue | Model Number | DY6-25 | |
| Voltage | clients industrial voltage | Power | 9.6KW | |
| Dimension(L*W*H) | 2100x1850x1800mm | Certification | ISO,CE,SGS | |
| Warranty | ONE YEAR | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
hydraulic moving block machine DY6-301.ISO9001 CE/SGS

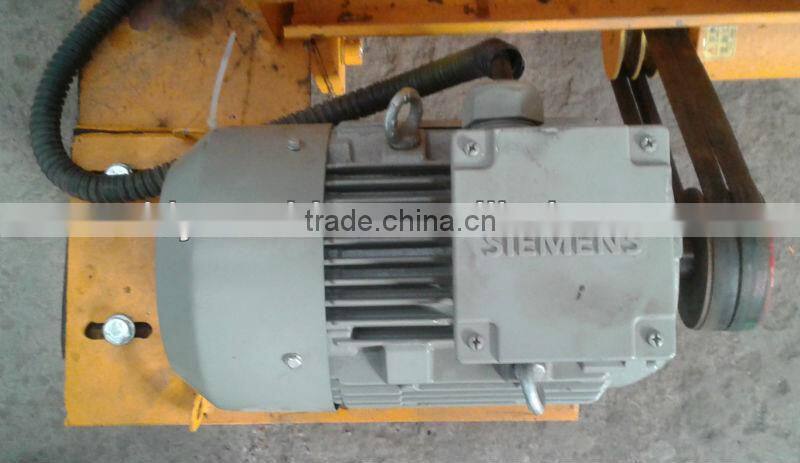

2.Electric controller,Siemes motors
3.Hollow blocks
4.ISO,CE,SGS
Egg laying block making machine 6000pcs per 8 hours
QT40-3A moving machine working video link, /watch?v=3pdnWDe9n5U
QTM6-25 moving machine working video link, /watch?v=3adIH_wbkag
Dongyue Machinery Group Introduction Video on Yutube : /watch?v=ajPDe3rivQU

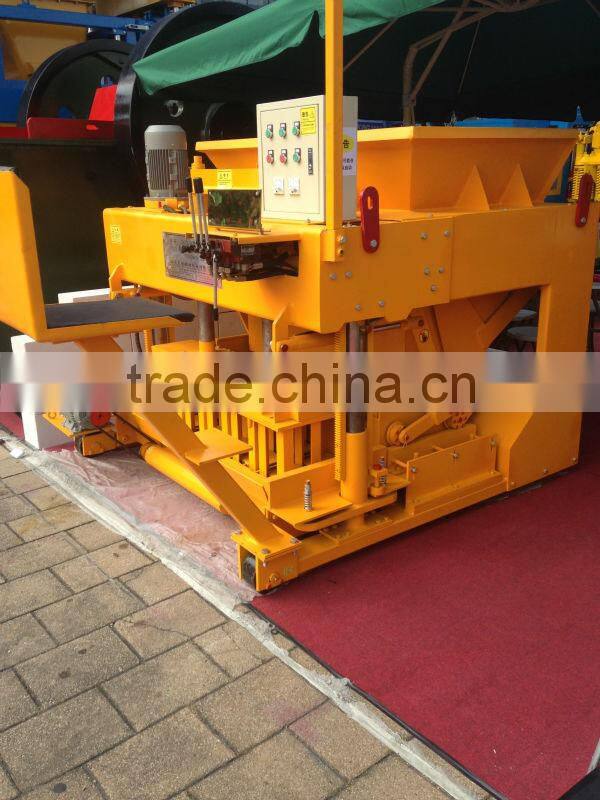

Introduction :is one mobile brick machine. based on foreign advanced technology and process, our company research and development mobile hydraulic brick machine, the brick machine has great advantage as follow:
Technology advanced: the whole design process consider principle of integrative reconciliation and the internal structure of a rational order, so the machine have great technical advantage,it adopt several new technique, such as box excitation, hydraulic discharge, omnidirectional automatically movement
High quality: the whole machine is adopted high quality steel, and precision welding, the hydraulic system use high-quality components, so it have a longer life and less fault during work
Low investment: high efficiency: this machine have several function features, such as low price,reliable performance, easy to operated, stable, more efficient, high output, low power consumption.the brick it produced have high density, high strength, accurate dimensional, good appearance,so it can reduce the customer's investment and production costs and give fast and large benefit
No need pallet,Hot product in Africa,Middle East
Parameter:
| Molding | 6PCS/mold |
| Hydraulic pressure | 6-8MPa |
| Frequency | 3500/min |
| Productivity | 8000~10000pcs/day |
| Hydraulic method | Mold vibration |
| Demold method | Hydraulic |
| Turning method | Hydraulic |
| Total power | 12kw |
| Total mass | 2600kg |
| Molding cycle | 20s |
| Turning method | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
| Total power | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
| Total mass | widely used in buildings, road pavers, squares, gardens, landscaping, city constructions, etc. |
Capacity:
| Block type | Block size | Pcs/mould | Pcs/hour | Pcs/day |
| Hollow blocks | 400x200x200mm | 6 | 1000 | 7000-9000 |
| (16x8x8 inch) | ||||
| Hollow blocks | 400x150x200mm | 8 | 1300 | 10000-13000 |
| (16x6x8 inch) | ||||
| Hollow blocks | 400x250x200mm | 4 | 700 | 5600-7000 |
| (16x10x8 inch) | ||||
| Hollow blocks | 400x120x200mm | 9 | 1500 | 12000-15000 |
| (16x5x8 inch) | ||||
| Solid bricks | 250x175x75mm | 14 | 2016 | 16128-20160 |
| (10x7x3 inch) |
Parameter of material feeding cart:
| Material feeding cart | |
| Motor type | ZS1100 |
| Moror Power | 11KW |
| Rated load | 1000kg |
| Pointed capacity | 0.78m3 |
| length of driving wheel | 1280mm |
| Ground clearance | 190mm |
| Empty self weight | 1050kg |
| Outside dimension | 2620*1500*1960mm |
| Geometrical capacity | 0.5m3 |
| Wheelbase | 1500mm |
| Minimum turning radius | 4m |

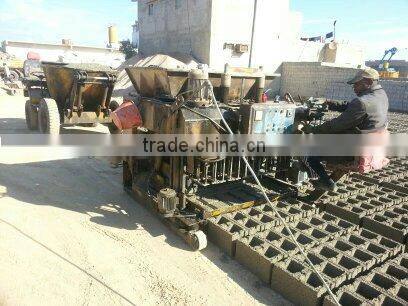

Pictures:

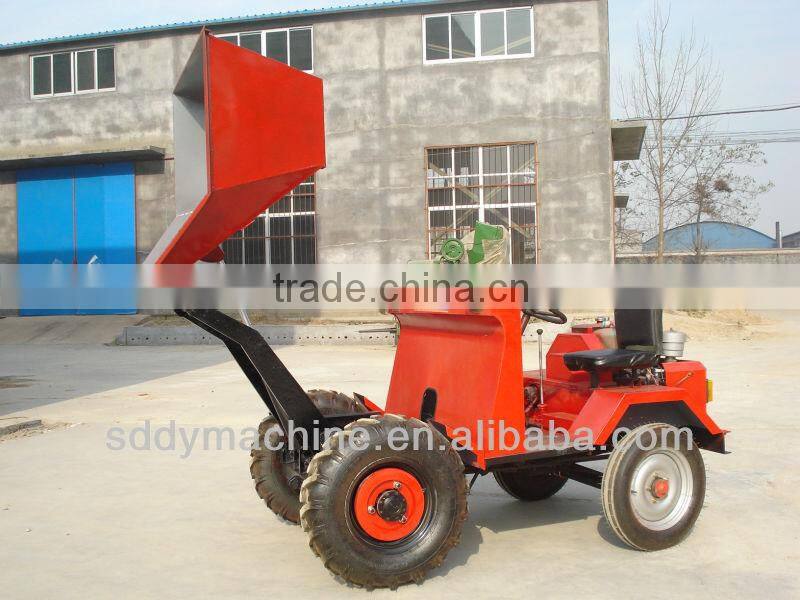

Auxiliary equipment - 1. Material feeding cart

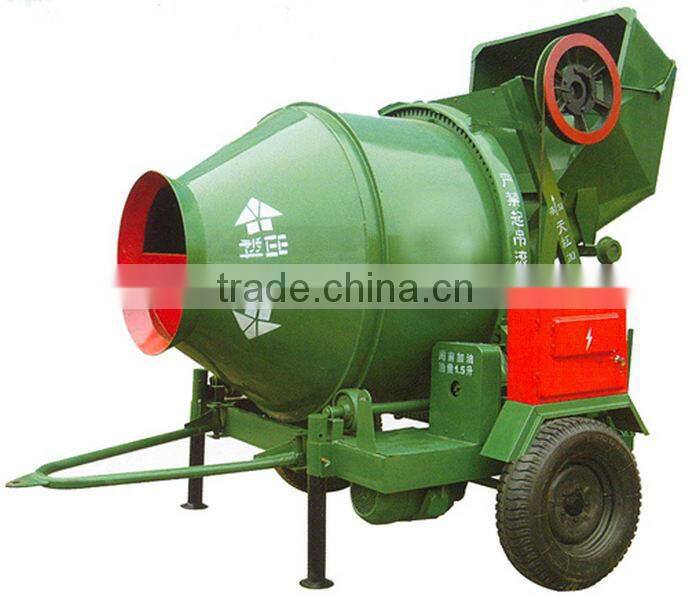

2. Mixer

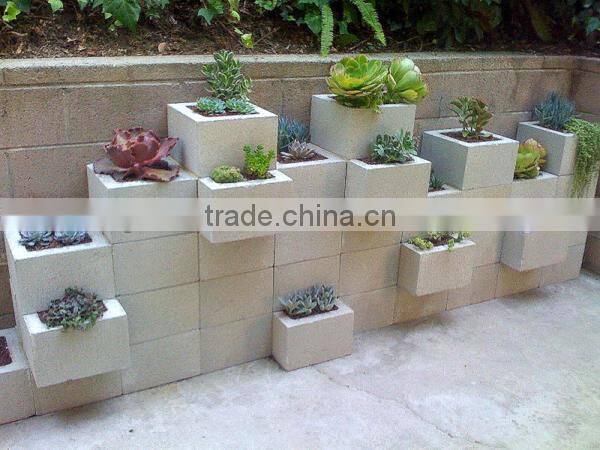

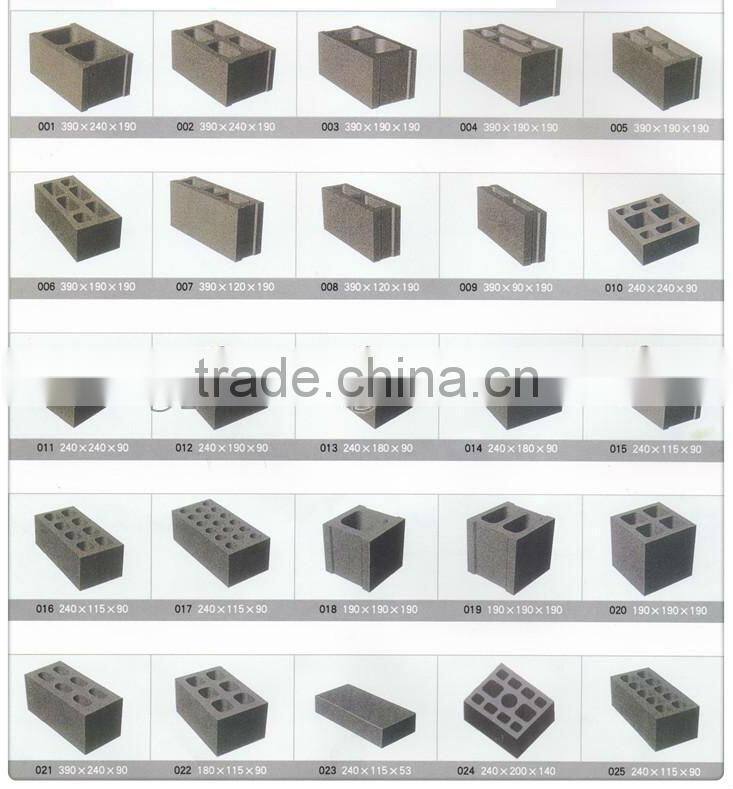

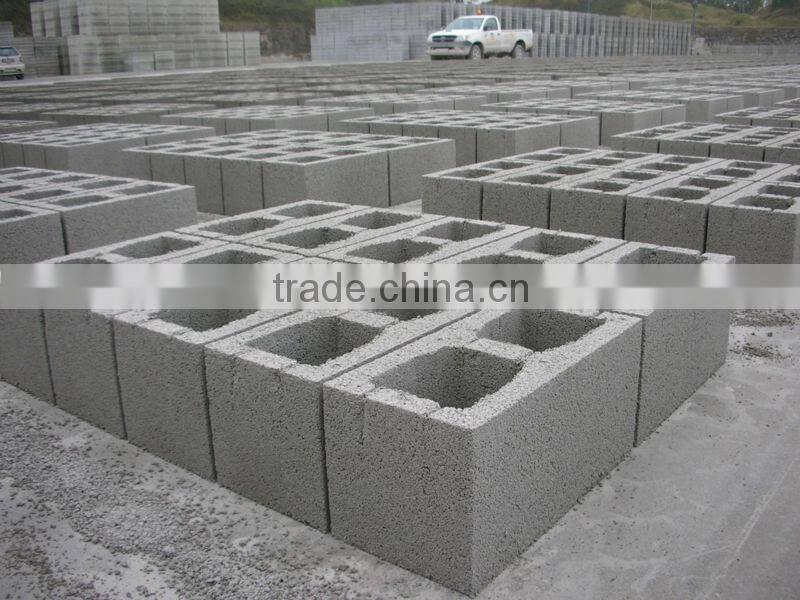

Block samples:
Dongyue Enterprise Profile:
Dongyue Machinery Group Co., Ltd. is located in the jumping*off point of Linyi City.
The new series of automatic brick forming machine features high efficiency, advanced
Technology , stable capability and wide applicability. Last year we are the top selling among
thousands of China manufactures. and we are the only company which has been admitted
as China well*know brandmark by China Government.
Apart from the above, we already have office in India, Vietnam,Indonesia.
Our brick making machine enjoys many advantages including: more reasonable structure,
more compact appearance, smoother operating, higher efficiency and easiness to operate
and maintain. We would like to exchange the optimum profit for you with the lowest cost
and the best after-sale service.
