Home > Products > Hydraulic block machine > Concrete Block Machine With Bamboo Pallet
Concrete Block Machine With Bamboo Pallet
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Hollow Block Making Machine | |
| Brick Raw Material | Cement | Processing | Brick Production Line | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 400 sets per month, 14,400-70,400 Pcs/8Hr | Place of Origin | Shandong, China | |
| Brand Name | Dongyue | Model Number | QT 6-15 | |
| Voltage | 380/415/440 | Power | Total: 85 KW | |
| Dimension(L*W*H) | 3500*2300*2930 mm | Certification | ISO/CE/SGS | |
| Warranty | One Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
dongyue machinery group1.ISO9001/CE/SGS.
2.PLC control. Excellent Performance.
3.20 years experence
Dongyue machinery group Brick machine

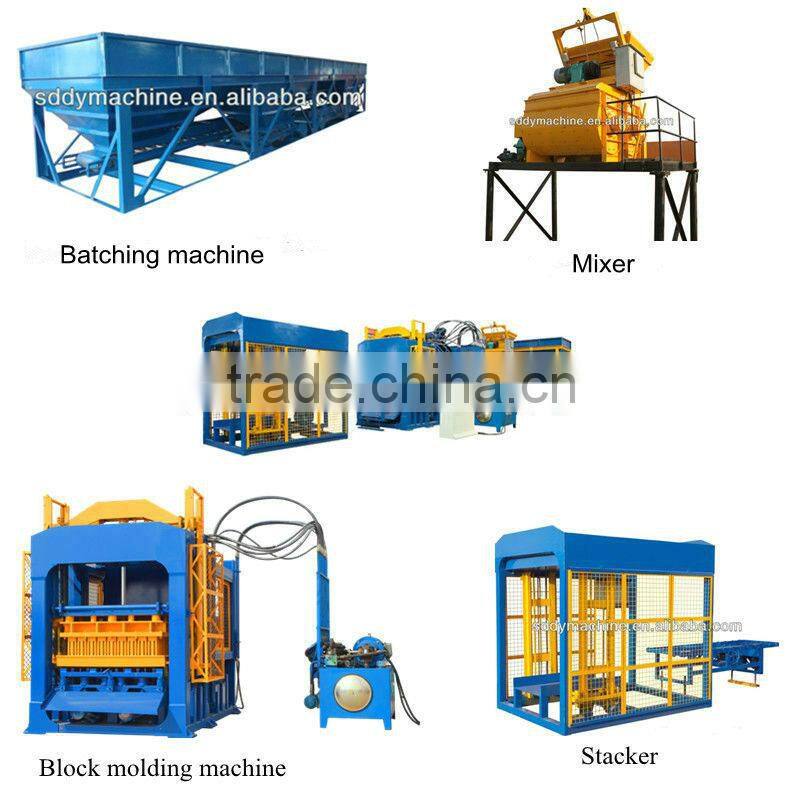

1. Main parts of Hydraulic brick making machine line
| 2. Main technical parameter | ||||||||
| 1 | Dimension of host machine | 4000x1800x2800 | 6 | Host machine power | 29.85kw | |||
| 2 | Weight of host machine | 5.5T | 7 | Vibration force | 40-50KN | |||
| 3 | Molding area | 1006x600 | 8 | Mixer model | JS500 | |||
| 4 | Water consumption | 5-6Ton/day | 9 | Pallet size | 1010x550x25mm | |||
| 5 | workshop area | 250-300m2 | 10 | Voltage | 380/415/440 | |||
| 3. Theoretical production capacity | |||||||
| No | Size(LxWxH) | Pcs/Mould | Pcs/Hour | Pcs/Shift | |||
| 1 | 400x200x200mm | 10 | 1800-2100 | 14400-16800 | |||
| 2 | 400x100x200mm | 20 | 3600-4200 | 28800-33600 | |||
| 3 | 400x150x200mm | 14 | 2520-2940 | 20160-23520 | |||
| 4 | 400x250x200mm | 8 | 1440-1680 | 11520-13440 | |||
| 5 | 230x110x70mm | 42 | 7500-8800 | 60000-70400 | |||
| 6 | 200x100x60 | 35 | 6300 | 50400 | |||
| 7 | 200x163x60 | 20 | 3600 | 28800 | |||
4. Main products of Hydraulic brick making machine line
Advantage of hydraulic brick making machine line
1.Advanced drive by wire technology and hydraulic conveyance system can assure you an easy operation and well performance.
2.It will make more blocks than others you may get from other sources, which suit to you who need more solid blocks.
3.The speed of making blocks will be more higher. It has an easy operation with little error.
4.High-intensity can make blocks stacked in a short time.
5.As for the quality of it , I must say that we use the steels of high quality, which was produced by JI steel making company known to all throughout China. The quality of our machine is guaranteed.
6.The mold use the technology of carburization heat treatment , which can give you a guarantee that there will no transformation with 4 million blocks about 6-8 months.
7. Hydraulic brick making machine line can produce all size of hollow blocks,solid bricks interlocking blocks and paver, just change the relevant moulds.
8.The materials can easily get and the source of material are widely enough to get.
9.Our product is of excellent quality and reasonable price. The high technology, high quality, high efficiency will lead to a high return rate, so this kind of machine will be your best choice.
