Dongyue Machinery Group Co., Ltd.: Linyi, Shandong, China; Main products: Block Making Machinery AAC Line, APB Line, ALC Line, Concrete Block Making Machinery, Color Metal Tile Equipment, Color Metal Tile

Qt4-30 Block Making Machine Diesel

FOB Price

US$ 4,000 - 4,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Hollow Block Making Machine
Brick Raw Material	Cement	Processing	Brick Production Line
Method	Hydraulic Pressure	Automatic	No
Capacity	3840pcs per 8 hours	Place of Origin	Shandong, China
Brand Name	Dongyue	Model Number	QT4-30
Voltage	220V/240V/380V/440V	Power	13.34 kW(18.0 HP)
Dimension(LWH)	1440x1330x1720mm	Certification	CE/ISO 9001/SGS/BV
Warranty	12 Months	After-sales Service Provided	Engineers available to service machinery overseas

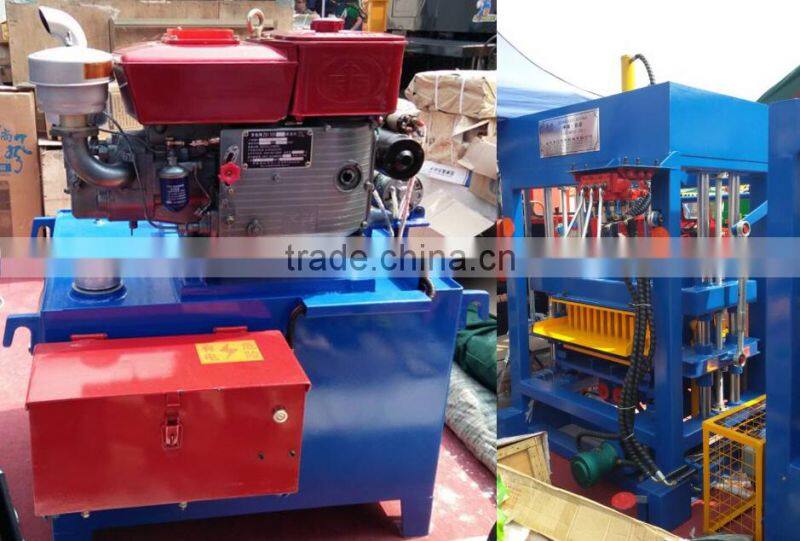

QT4-30 diesel no electricity block machine with hydraulic system

Advantages

1. Diesel engine , no use electricity, very suitable for electricity shortage area.

2. Hydraulic system, up to 15MPA pressure can produce high density block and pavers.

3. Electric start engine, easy to sart.

4. Adopt Changchai diesel engine which is the best quality diesel engine manufactuer in China, has more than 80 years manufacturer experince.

1	Dimension of host machine	1440x1330x1720 (LxWxH)	5	total machine power	13.34 kW(18.0 HP) 2200 r/min
2	Dimension of diesel engine hydraulic station	1400x900x1320mm (LxWxH)	6	Rated pressure	15Mpa
3	Pallet size	850x450x25mm	7	Oil consumption	2L/H
5	cycle per mould	30S	9	Diesel engine specification	Changchai ZS1105
4	Diesel engine starting mode	Electric start	8	Block type	block, paver, curbstone and so on

Capacity

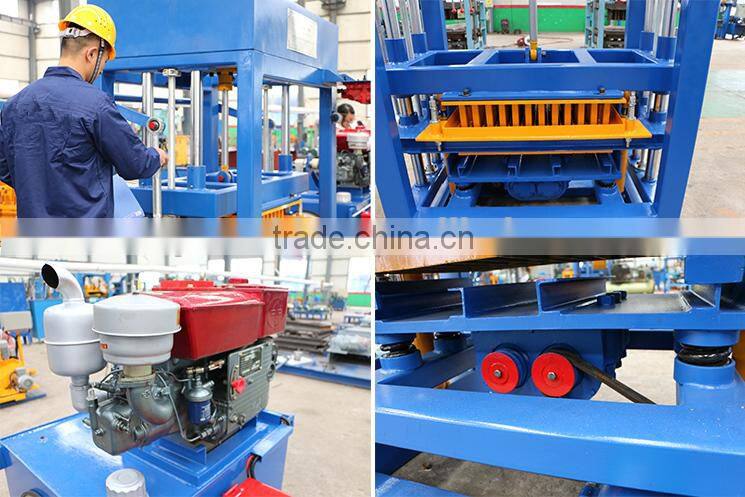

Machine in producing

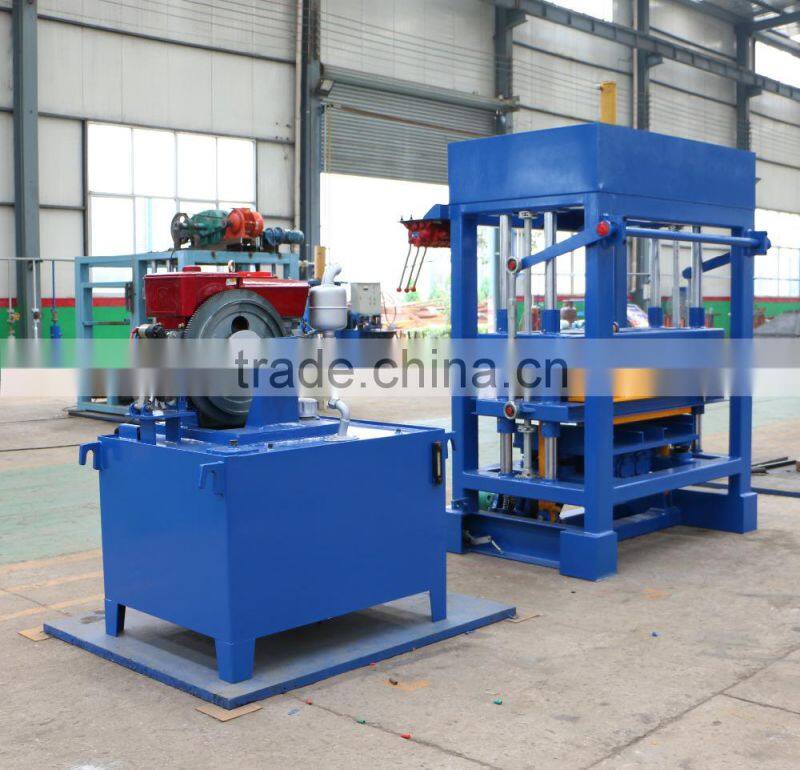

Machine parts

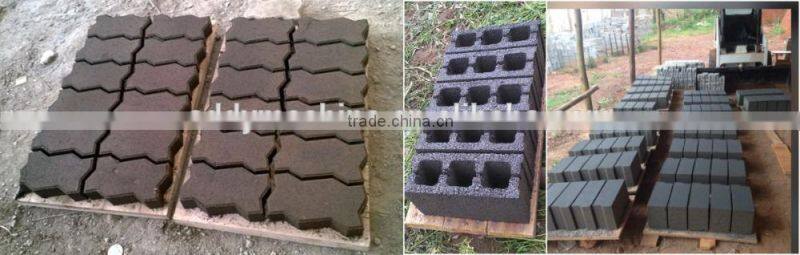

Block Samples
