hot selling concrete brick making machine from China

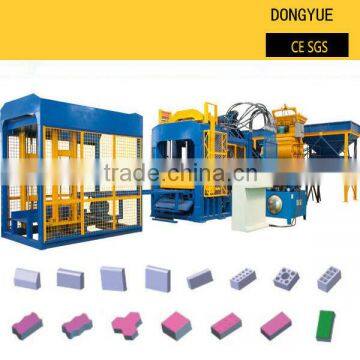

 QT4-15C concrete brick making machine line introduction:

QT4-15C concrete brick making machine working video: https://youtu.be/_s1yU5ZLsCA

QT4-15C Hydraulic brick machine is suitable to make road blocks, road-side bricks and river bricks. Adopt sub-storage device and independent storage hopper, this machine can overcome the liquefaction of concrete defects in advance, and ensure the quality of the finial products.

QT4-15C automatic paver making machine can automatically operate the whole set, from material feeding to finish products output.

QT4-15C concrete brick making machine General notice

1. Customized color is available based on previous notice.
2. The third party inspection is available.
3. If needed, the seller can help the buyer to handle shipping and insurance.
4. Marking and package shall be arranged according to applicable international requirements.
5. Guarantee: Our block machine has been taken under guarantee by the seller from the date of commissioning within 12 months on the premise of regular use of the buyer. An Acceptance Act will follow to inspect the application of the equipment.
6. Installation & commissioning is available based on the clients’ requirement.

QT4-15C concrete brick making machine Main Technical Parameters:

1).Theoretical workshop area : 150 m2 , need about 3-4 workers.

2).The office,curing area and stacking area to arrange according your practical situation.

QT4-15C concrete brick making machine Production Capacity:

QT4-15C Automatic Hollow Block Making Machine Production Line Main System Instruction

A. QT4-15C concrete brick making machine vibration system:
The paver making machine can effectively expand the vibration area and achive two-fold, substantial progress in product quality and output. And effectively extend the useful life of the mould. Vibration box with hanging structure, can withstand severe vibration without damage and fracture. Eccentric shaft vibration synchronous rotating vertical structure produced by the exciting force, enable the best results of fabric and forming.

B. QT4-15C concrete brick making machine materials feeding machine system
The paver making machine feeding machine rastellus use combined type, and make it more conveniet when change it, and the feeding part use Push-pull type with back and forth .and make the aggregate will more blance, and assure the concerte blocks hight and weight keep accordance.

The paver making machine using the Continuous rotary type and compulsory feeding system can achieve mixing second time. Feeding speed more quickly.

This machine ejection mechanism: This body mainly uses two fuel tanks mounted under the bottom of the rack to control the movements of ejection seat; rack at the top adopts arm-type rigid synchronization mechanism, which may ensure that the mold frame moves smoothly, when demoulding will not damage the surface of molding bricks.

C. QT4-15C concrete brick making machine color surface machine parts
The paver making machine color surface machine crane use hydraulic control system, the color surface hopper connected by crane and rubber spring, will have shock absorption effect, at the same time can prevent rest color material become lump. The hollow block making machine material door control the hopper open and close ,will achieve feeding blance.

D. QT4-15C concrete brick making machine block conveyor system
The paver making machine block conveyor system is equipped with one automatic brick getting-out machine and automatic brick getting-in machine , The brick getting-out machine uses the V-belt to drive brick pallets for reducing the abrasion of pallets. And also brick getting-out machine is equipped with Paint Roller,which could adjust the height of Rolling Brush rack via the screw nut so that the whole process would become more accurate and expeditious.

E. QT4-15C concrete brick making machine stacking system
The paver making machine stacking system uses well-known foreign company's advanced electronic control systems and electrical components, with the realization of a rational man-machine dialogue interface. Adopt proximity switches, photoelectric switch control hydrocylinder’s start and stop time, shift distance and rotation angle, using high-sensitivity displacement sensor control Stacking upgrade folder to reduce altitude, with a protection function.

F. QT4-15C concrete brick making machine PLC control system

This paver making machine can set the various actions through adjust the flow, press etc technique parameters by touch screen,, achieve machine-human talking, the control system mainly included three units,

(1) fully automatic batching and mixing control system

(2) brick forming machine, pallets transferring control system

(3) stacking block machine control system
The components of this system are all using imported brand, such as Japan Mitsubishi , Omron, Germany Siemens etc, high performance, low maintenance.

 QT4-15C concrete brick making machine Packaging and Shipping instruction:

QT4-15C concrete brick making machine can be loaded into 2x40ft HQ containers:

 Btaching machine and stacker and spare parts can be loaded into one container; mixer and host machine and other machines can be loaded into the other containers.

QT4-15C concrete brick making machine Bamboo or hardwood or PVC pallets can be loaded into one 20ft container.

 QT4-15C concrete brick making machine After sales Services

 QT4-15C concrete brick making machine is manufactured by Dongyue Machinery Group Co.,Ltd.

Why Choosing us to buy hollow block making machine ?

Realiable quality:
With good quality, reliable products,20 years expericence and competitive price ,DONGYUE BRAND is your best choice.

Special welding:
We use the newly carbon Dioxide protection welding to assure the whole line is more stable. and newest heat treatment device to extend the lift span of moulds.


Thanks for your time.Welcome your inquiry and visit our factory.Hope we can build a bright future.
