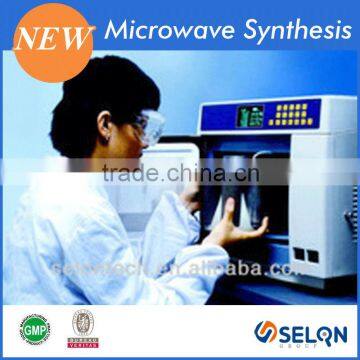

SELON SEN-6 MICROWAVE DIGESTION /EXTRACTION SYSTEM

Wooden

Specifications

SELON SEN-6 MICROWAVE  DIGESTION /EXTRACTION  SYSTEM

microwave extraction  microwave digestion  microwave extraction equipment

SEN-6 Technical Data:

1. Maximum Microwave Power:1000W, Dynamically adjusted between 0~1000W based on pressure and temperature inside vessels

2. Process up to 6 vessels per run

3. Pressure control for every vessel, controllable pressure range:0.1~5.0Mpa(750psi)

4. Accurate temperature control system, maximum controllable temperature 250 degree(inside vessel)

5. Preset up to 30 programmable reaction methods for different samples including digestion and extraction

6. Multiple patented mechanism for safety protection (over-pressure release, high temperature alarm, etc.)

7. Two pages crisp monitor to display both reaction data (pressure, temperature, time, microwave power and working steps, etc.) and accumulating curves of temperature and pressure inside reaction vessel.

Major Function:

1. Microwave power supply would be automatically adjusted based on pressure and temperature inside closed vessel, which provides non-pulse consistent microwave power. This advanced technique (patented) would make the digestion and extraction process much safer and easier to control.

2. Three programmable modes for Temperature, Pressure and Extraction control would make the process fit for any official standards including EPA and ASTM. Two pages Crisp Monitor to display both reaction data (pressure, temperature, time, microwave power and working steps, etc.) and accumulating curves oftemperature and pressure inside reaction vessel.

3. Touchless Pressure Monitor and Control (Patented):

  Closely monitor and control the pressure inside reaction vessel, no cable or rope is necessary.

 Easy to install and release closed vessel. Cooling process can be executed outside oven, speedy and efficient.

4. Pt Temperature Monitor and Control (Patented): Directly plug in to get the temperature inside closed vessel, touchless to sample. Easy to plug in and out. Stable shielded sensor for safety and reliability. Display temperature and pressure within the same vessel for valuable comparison.

Vessel Technology for Controlled Pressure Relief:

SELON's vessels feature simplified wrench-free handling, high-purity Teflon composition, and a state-of-the-art pressure relief mechanism. If the operating pressure exceeds the vessel limit, a patented device allows the vessels to release excess pressure, bringing the internal pressure down to a containable level.  If the extreme high pressure occurs in a sudden due to wrong operation, a 360 degree safety membrane will be broken to protect the whole vessel.

Vessels:

1.  SE-70 High Pressure Single Digestion Vessel:

Maximum sustainable pressure: 10MPa  (100atm/1500psi)
Maximum working pressure: 5MPa(50atm/750psi)
Maximum working temperature: 250 degree
Volume: 70ml
Material: PEEK, PTFE or TFM


2.  DN-600 Multiple Bundle Vessel:

Six vessels bundled together, pressure of each is controlled
Maximum working Pressure: 4MPa (40atm/600psi)
Maximum working temperature: 250 degree
Volume: 50ml per vessel
