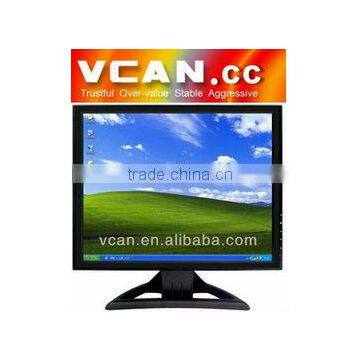

VCAN0328 15" VGA USB POS Touchscreen TFT LCD Rear View Monitor

Specifications

VCAN0328 15" VGA  USB POS Touchscreen TFT LCD Rear View Monitor

VCAN0328 Features:

  TFT MONITOR

One of the world's most high-precision four wires resistive type touch-screen for PC display. (USB port/COM RS232 optional)

Sensitive touch-screen, quick response

Standard VGA (15 pin D-SUB RGB) and Two RCA/BNC video input
Built-in speaker amplifier/PC audio input and earphone jack
Operating All Systems: DOS/Windows  9X ME 2K XP  7 Vista  NT  CE / LINUX / Mac,etc.

Can support almost all kinds of resolution

Low radiation and consumption. High reliability, good stability, especially for work in harsh environments.

VCAN0328  specifications:

TFT MONITOR

• Panel: 15" A+ GRADE Panel
•
• Display Type: 4:3 /16:9Ratio
•
• Physical Resolution :1024X768
•
• 4- wires /5-wire resitive touch-screen  optional.
•
• Touchscreen Interface: Serial (RS232) or USB optional.
•
• 15 pin D-SUB VGA signal input.
•
• SD/USB card reader  and TV/AV fucntion is optional.
•
• Built in Speaker.
•
• OSD: Remote control OSD(Voice, Brightness, Contrast)
•
• One VGA input, 2 AV Input, 1 AV Input
•
• Input Video Format:  Analog RGB ,NTSC/PAL/SCAME(AUTO)
•
• Touchscreen Interface: Serial (RS232) or USB
•
• Operating System:  DOS/Window  9X  ME,  2K  XP  Vista  NT Windows CE / LINUX / Mac
•
• Power Consumption: <30 W Typ
•
• Working Vplt:11V-15V

 Technical Specification:

• Touch Response Time Serial/USB: 10.4ms
•
• PowerSupply: 85-265VAC,50-60HZ
•
• Pixel Pitch: 0.107 (W) X 0.372(H) mm
•
• Pixel Response Time Rise + Fall (Typically): 8ms
•
• Brightness: 400 cd/m2
•
• Contrast: 700:1
•
• ViewingAngle Horizontal (left/right): 170° (85°/85°)
•
•  (From Centre, CR>=5) Vertical (up/down): 160° (70°/90°)
•
• Temperature Range: Operating:-20°C-60°C,
•
• Storage:-30°C-70°C
•
• Relative Humidity Non Condensing:  Operating:10%-90%, Storage 5%-90%
