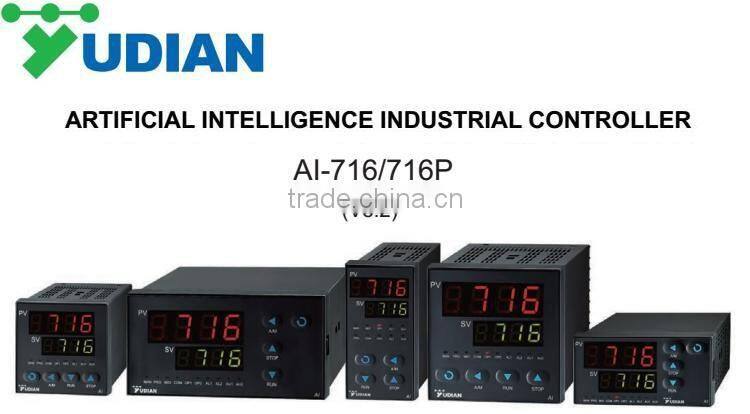

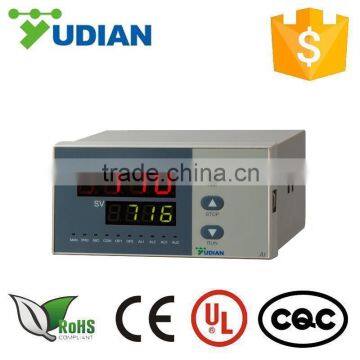

Yudian Brand Pt100 Temperature Gauge for Industrial Usage AI-716

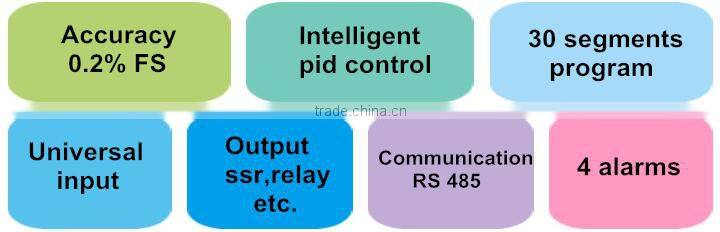

Main Features for Yudian Brand Pt100 Temperature Gauge for Industrial Usage AI-716

• Advanced operation method leads to easy learning and simple manipulation; and the compatibility of operation is available among the instruments differ in the model and function.
• Provide nearly all of the functions contained by most similar industry automatic controller in the world, and the mature technique made it generally used in various kinds of industrial fields.
• Provide various models that can meet different needs either in the functions or price.
• With power supply of 85-264VAC or 24VDC and various installation dimensions for users to choose.
• Adopt digital calibration system for measurement input with measurement input accuracy less then 0.2% F.S., non-linear calibration for common sensors is available in the instrument.
• Adopt advanced AI artificial intelligence control algorithm, no overshoot and with the function of auto tuning and self-adaptation.
  Adopt advanced modular structure, equipped with plentiful output specifications, and can satisfy the needs of various applications. This makes it possible to shorten the date of delivery and convenience the maintenance of the instrument.
• Having passed the ISO9002 quality verification. Comply with EMC standard, and has the predominant performance of anti-interference.

Technical Specifications for Yudian Brand Pt100 Temperature Gauge for Industrial Usage AI-716

1. Input type:
Thermocouple: K, S, E, R, J, T, B, N, WRe3-WRe25, WRe5-WRe26.
Resistance temperature detector: Cu50, Pt100.

Linear voltage: 0~5V, 1~5V, 0~1V, 0~100mV, 0~20mV, 0~500mV etc.

Linear current (external precise shunt resist needed): 1~10mA, 0~20mA, 4~20mA etc.

Optional: apart from the above-mentioned Input type, an additional type can be provided upon request. (Graduation index is needed)

2. Instrument Input range:

K(-50~1300℃), E(0~800℃), S(-50~1700℃), R(-50~1700℃), J(0~1000℃), N(0~1300℃), T(-200~350℃), B(200~1800℃);

Cu50(-50~150℃), Pt100(-200~600℃);

Linear Input: -9990~30000 defined by user.

3. Measurement accuracy:

0.2%FS±0.1℃ measurement unit.

4. Control mode:

On-off control mode (dead band adjustable);

Standard PID with auto tuning;

AI PID with auto tuning, adopting artificial intelligence algorithm.

5. Alarm function:

Upper limit, low limit, positive deviation and negative deviation, selectable using parameters.

6. Power supply voltage rating:

100-240VAC, -15%, +10% / 50-60Hz.

7. Manual function:

AUTO/ MAN bumpless transfer.

8. Response time:

≤0.5s (when digital filter parameter FILt=0)

9. Power consumption:

≤5W.

10. Operation ambient:

Temperature: -10~+60°C, Humidity: 0~90%RH.

Ordering Code Definition for Yudian Brand Pt100 Temperature Gauge for Industrial Usage AI-716

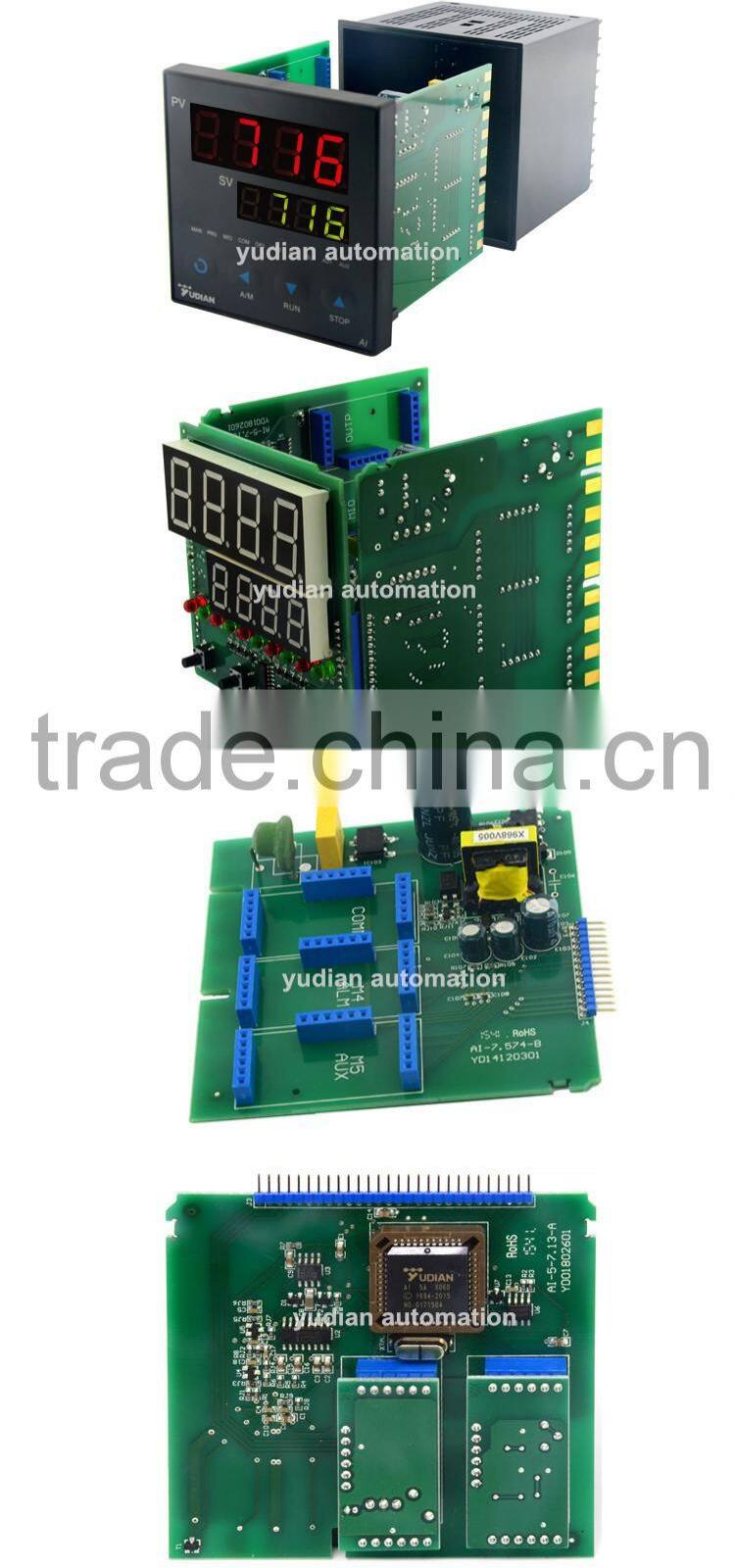

Advanced modularized hardware is utilized for AI series instruments. There are maximum five module slots: multi-function input/ output (MIO), main output (OUTP), alarm (ALM), auxiliary output (AUX) and communication (COMM). The modules can be purchased together or individual, and can be assembled freely. The input type cna be set to thermocouple, RTD, or linear current/ voltage.

The ordering code of AI-716/ AI-716P (V8.2) series instrument is made up of 9 parts. For example:

                      AI-716     A    N    X3    L5    N    S4    -   24VDC  -  (F2)
                                  1         2     3     4      5      6     7                8             9

Part 1 Model of the instrument

AI-716/ AI-716P temperature controller

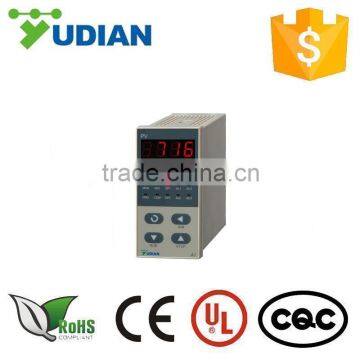

Part 2  Dimension

Part 3 Multiple Functions I/O (MIO)

I4, K3,  V, N, etc.

Part 4 Main Output (OUTP)

L1, L2, L4, W1, W2, G, K1, K3,  X3, X5, etc.

Part 5 Alarm (ALM)

L0, L2, L4, L5, W1, W2, G, etc.

Part 6 Auxiliary Output (AUX)

L1, L2, L4, L5, W1, W2, G, etc.

Part 7 Communication (COMM)

S, S4, V, etc.

Part 8 Power Supply

If let blank, the power of the instrument is 100~240VAC. Added "24VDC" means the power supply is 20~32V DC or AC power.

Part 9 Optional Extended Graduation Specfications

AI-716/716P series instruments support many input types including popular thermocouples, RTDs, linear voltage, current and resistance inputs. If needed, an additional specification not mentioned in input type selection (InP) table can be extended.

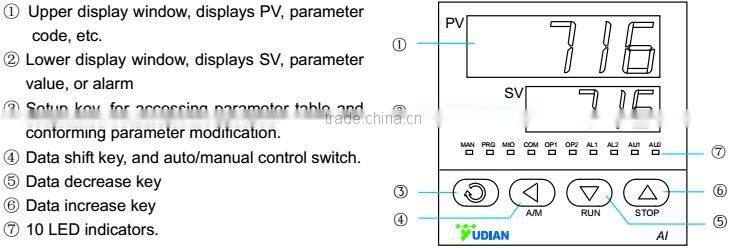

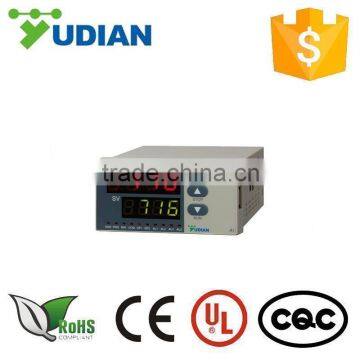

Front Panel and Operation for Yudian Brand Pt100 Temperature Gauge for Industrial Usage AI-716

You will get:

1. A piece of Yudian instrument;
2. A paper of user manual;
3. Three/ Five/ Ten years warranty card and Quality Approval card;
4. A lable of units;
5. A pair of installaton brackets;
6. Nice package carton box with Yudian logo.

• Factory with 26 years experience.
• Three to ten years warranty time.
• Quick delivery ( within 3 working days).
• Retail/ Wholesale/ OEM/ ODM available.
• Better price for bulk order.
• We provide after sales service and technical assistance as customers requirement and needs.

If you are interested in our products or have any questions, please do not hesitate to contact us.
