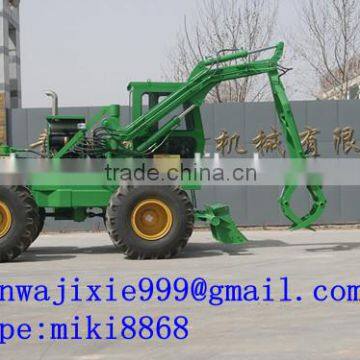

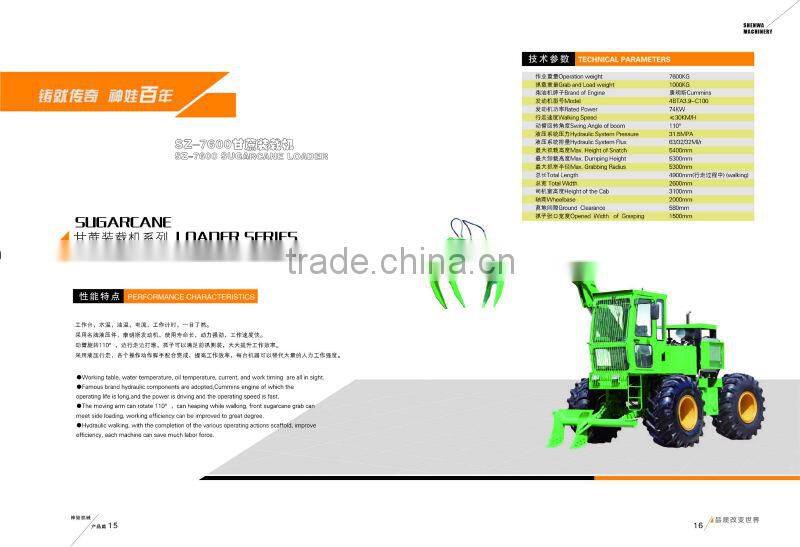

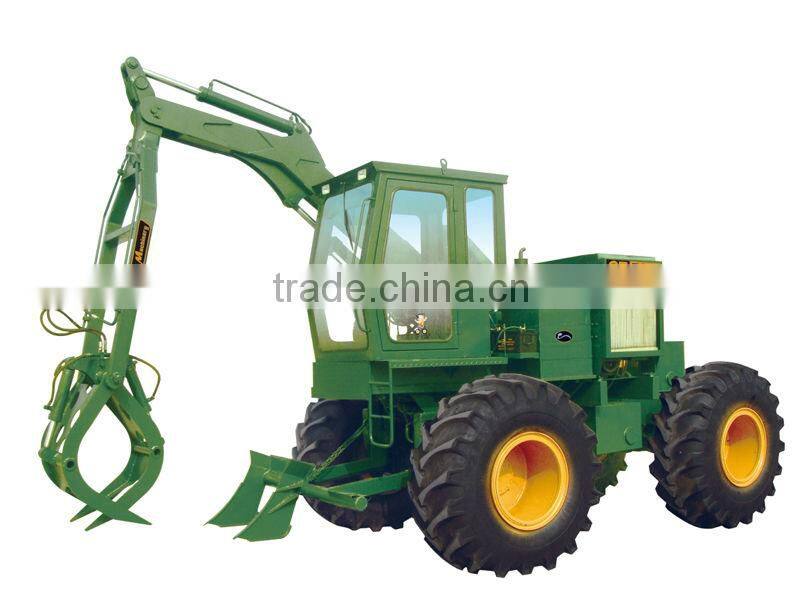

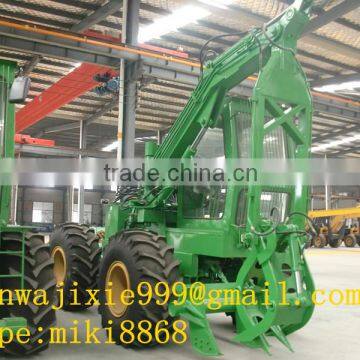

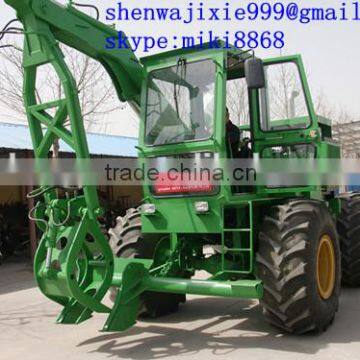

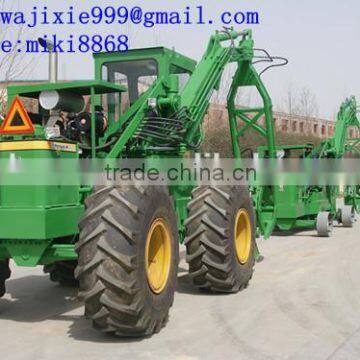

Sz*7600 Sugarcane Loader Big Loader

Max grapple height                     5400mm

Max dumping height                    5300mm

Max grapple radius                     5300mm

Engine model                                              4BT3.9-C100

Rated power                           102HP (75KW)

Engine brand                                           Cummins

Total weight                                               7600kg

Grab capacity                                        1200-1300kg

Working efficiency                                 3000kg/min

Working times                                             3/min

Hydraulic system working pressure             20Mpa

Maxing flux                                                63ml/r

Slope                                                          25%

Max hauling force                                        29KN

Working speed                                         ≤25km/h

Boom rotation angle                                      129°

Overall dimension (L*W*H)              4900*2600*2500mm

Min ground clearance                            580mm

Tread                                                   2000mm

Wheel base                                           2600mm

Tires type                                                 23.1*26

Fuel consumption                                  ≤225g/kw*h

Performance characteristics,

1,Single-cylinder 24hp motor, with smooth discharge, low noise, less oil consumption, the power transmission system is driving and reliable.

2,Novel appearance and model, capacious operator cabin, favorable eyeshot.

3,Hydraulic system with steering preferential, with high efficiency and can save energy, the dynamic performance of which is better.

4,Convenient back cover for repairing, centralized lubricating system, which is convenient to maintain and upkeep.

5,Fork-type carriage, the stability of the complete appliance is good, and  the structural strength is high.

6,Ascendant performance of complete appliance, with extraordinary operation efficiency.

7,With which many kinds of optional components can be matched to meet requirements of different users.
