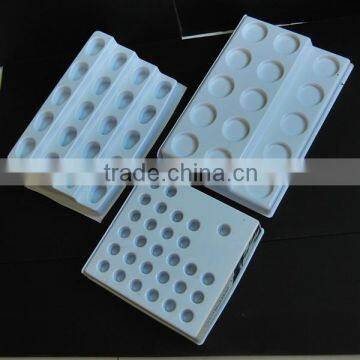

OEM Customer Design Vacuum forming plastic Tray

 OEM Customer Design Vacuum forming plastic Tray

Quick details about our products:

Key Words:

vacuum forming

vacuum forming tray

vacuum forming plastic tray

Vacuum Forming Technology

Vacuum thermoforming is a plastic manufacturing process in which a 2 dimensional thermoplastic sheet is heated to a forming optimal temperature and,

using vacuum and pressure, is formed into a 3 dimensional part.

Why Use Vacuum Forming?

Vacuum thermoforming has advantages over other plastic production methods.

Here are some potential advantages that would make vacuum forming a good choice for your plastic part:

• Large parts or multi-part uses
• Moderate annual volumes
• Tight tooling budget
• Rapid product development

What is Vacuum Forming ?

You place a sheet of warm,slightly melted plastic over a three dimensional shape(a pattern).Then you remove the air between the pattern and the warmed plastic with a vacuum.

The warmed plastic cools down and stiffens very quickly and retains the shape of your pattern.

Now you have a vacuum formed plastic part in the shape of your pattern.

Typical materials used

• Acrylonitrile Butadiene Styrene   ABS
• Polyester Copolymer     PETG
• Polystyrene               PS
• Polycarbonate         PC
• Polypropylene         PP
• Polyethylene            PE
• Polyvinyl Chloride     PVC
• Acrylic                  PMMA
• High Impact Polystyrene  HIPS

Application for Multiple industries:

For wheel cover

An inexpensive and effective way of advertising, promoting your your company name and logo as well as protecting your spare wheel. A wide range of durable Wheel Covers in Black acrylic capped ABS or standard soft textured sandstone finish ABS.

For handling trays

Carrier and transit trays, box inserts for games and cosmetics, product packaing - the uses are limitless.

For display stand

Assembly of both vacuum formed and line bent parts to create this stand alone display stand

Vacuum formed Enclosures and control panels for electric components

Vacuum formed components for Industrial Vehicles

Interior cab trim, exterior cab and body components, under bonnet applications all vacuum formed.

Cab Interiors

A full range of driver & passenger compartment trim solutions. Exterior trim and structural components as well as under bonnet panels.

Internal Wheel Arch

Internal arch cover for vans. Tough, durable, high-impact ABS or Polypropylene plastic that significantly reduces the damage to the inside of the van arches.

machine guard

This unit protects the user from touching a hot operating plate. Bespke covers and guards can be designed for almost any application.

Enclosures and Covers

Manufactured in FR (fire retardant) material for the medical sector.

Vending and Gaming Machine Panels

We can produce internal and external units for both vending and gaming machines alike.

Vacuum formed displays for a anti scratch gel patch for motorcycle tanks in various finishes and textures - this item has a bracket ultrasonically welded to the underside to have the capability of being wall hung

Automotive applications

Vacuum formed Seat Backs are to be found in planes, cars, buses and coaches. Colour matched and with a textured surface finish that is durable and stylish in it appearance

Automotive Part

Indicator and Brake Light Surround, formed in a metalic silver - UV stable and durable!

Products Show:

Production Process:

Step 1:    Heating plastic sheet

Step 2:   Vacuum forming to shape

Step 3:   Cooling to maintain shape

Step 4:    Making  half finished product

Step 5:   CNC Processing

Step 6:   Trimming edges

Step 7:   Drilling holes

Step 8:   Examination and checking

Step 9:   Cleaning and Packaging

About our company:

Dongguan Hongwei Display Products Co.,Ltd. is a manufacturer of vacuum forming products with well-equipped testing facilities and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in automobile, electronics, toys, stationery, medicine, food, cosmetics, hand crafts, mechanical hardware and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.

We welcome new and old customers from all walks of life to contact us for future business

relationships and mutual success!

 Pls feel free to contact us for inquiry!
