mini loader

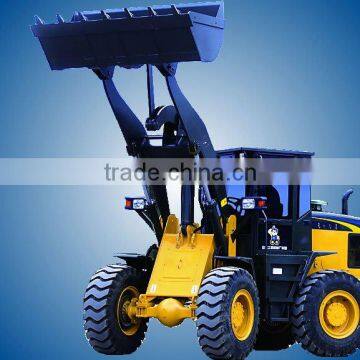

Shenwa Mni wheel loader

1Ton loading weight

• Max.dumping height         2400mm
• Max.dumping distance       900mm
• Max.lifting height         3000mm
• Min.ground clearance       200mm
• Distance between axles     1550mm
• Tread                      1200mm

           Overall dimensions(L*W*H)  4300*1430*2250mm

• Engine  model              Z124YAM
• Rated   power              17.6KW
• Rated  revolution          2200r/min
• Working pressure           16Mpa
• Max.flux                   32ml/r
• Total Weight               2000kg
• Rated loading mass        1000kg
• Gradeability               25%
• Min.walking speed          10km/h
• Max.breakout force         20kn
• Min.rotary radius          3200mm

1,Single-cylinder 24hp motor,with smooth discharge,low noise,less oil consumption,the power transmission system is driving and reliable.

2,Novel appearance and model,capacious operator cabin,favorable eyeshot.

3,Hydraulic system with steering preferential,with high efficiency and can save energy,the dynamaic performance of which is better.

4,Convenient back cover for repairing,centralized lubricating system,which is comvenient to maintain and upkeep.

5,Fork-type carriage,the stability of the complete appkiance is good,and  the structural strength is high.

6,Ascendant performance of complete appliance,with extraordinary operation efficiency.

7,With which many kinds of optional compinents can be matched to meet requirements of different users.
