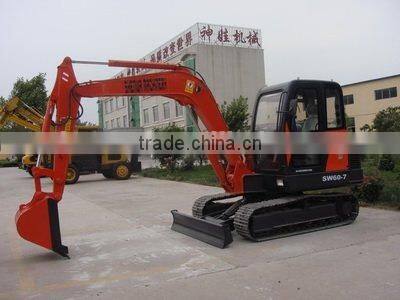

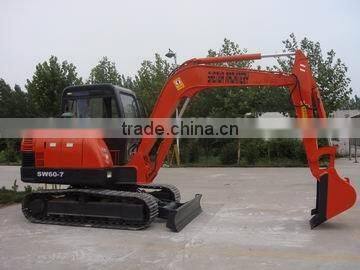

6tons Mini Crawler Excavator

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.Name: 6tons minicrawler excavator
2.Engine brand: Yanmar 94l
3.Rate power:36KW
4.Bucket capacity: 0.28m3

Name: 6tons mini crawler excavator

main size	width of platform (mm)	1885
	width of cab (mm)	1030
	height of cab (mm)	2575
	min. swing radius (mm)	1650
	min. ground clearance(mm)	350
	wheel gauge(mm)	1990
	length of crawler (mm)	2540
	width between on track(mm)	1480
	width of track (mm)	400
	length of excavator(mm)	5850
	the width between two crawler (mm)	1885
working range	length of boom (mm)	3000
	the length of forearm(mm)	1600
	max. digging range(mm)	6150
	max. digging depth(mm)	3820
	max. digging height(mm)	5760
	max. dumping height(mm)	4030
	digging force of bucket(KN)	37.7
	dingging force of forearm(KN)	28.4
engine	model	Yanmar94L
	rated power(kw)	35.5kw
	rated revelution(r/min)	2200

Qingzhou Shenwa Machinery Co., Ltd.: Contact nameWeihong Xia
Chat Now; Phone86-0536-3885866; Addressqingzhou south of xindonghuanlu , Weifang, Shandong
