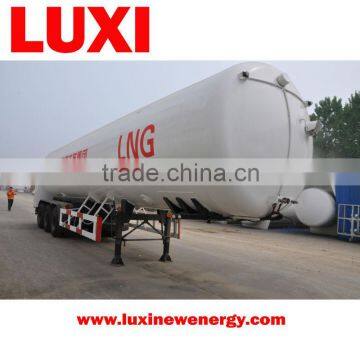

Cryogenic Liguified Gas Tank 60m3,LNG Tank, LNG Trailer,LNG Storage





type	60m³/1.2
	lng
working temperature/°C	-196
working pressure/MPa	1.2
inner shell thickness	16/14
design temperature/°C	-196
design pressure/MPa	1.26
pneumatic test pressure/MPa	1.5
leakage tect pressure/MPa	1.26
main pressure units	Q345R/S30408
total volume/m³	60
effective volume/m³	54
filling coefficiency	0.9
dimension	3024X16000



With A1, A2, B1, B3 grade pressure vessel manufacturing, C3 -class container tube bundle assembly, C2 -level mobile pressure vessel manufacturing qualification, we have passed 9000 quality management system and France BV international product certifications.

We use the most advanced production line equipment, large punching machine, large rolling machine, CNC automatic welding machine, vacuum unit, CNC spinning shut, closed end equipment, automated heat treatment equipment, CNC winding equipment, electrostatic spraying equipment, helium mass spectrometer leak detector, spectrum analyzer, automatic ultrasonic flaw detector, X-ray detection machine, universal testing machine, impact testing machine and other sound sophisticated detection equipment.

Now the main products: cold tank car, tube trailer, tube bundle containers, gas cylinder with a group of stations, all types of cryogenic containers, a variety of CNG cylinders, automotive steel liner hoop wrapped natural gas compression bottles, large capacity seamless steel gas cylinders, large volume steel liner wrapped cylinders and so on.

Our company is one of the largest pressure vessel factories in China, with trademark "Luxi" as brand name. Our high quality products are widely used in China market, as well as oversea markets: Armenia, Colombia, Malaysia, India, Indonesia, Iran, Peru, Russia, Thailand, Uzbekistan, etc.

Along with the development of world natural gas industry, higher quality products will be offered to customer from worldwide.
