IR Lamp IR Heater Infrared Lamp IR Drying Lamps
- shanghai lianyungang qingdao
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | YD | |
| Model Number | quartz halogen infrared heater lamp | Color | White | |
| Specification | 9004 | Material | Other, quartz glass | |
| Certification | CE |
Product Description
Specifications
quartz halogen infrared heater lamp1.Wattage: 100-5000W
2.Supply Voltage: 24-480V
3.Filament: Tungsten
1000W infrared lamps for drying of paints and printing
Technical Parameters
VOLT | 100, 110, 120, 220, 230, 240 V |
POWER | 1000W |
HZ | 50-60 HZ |
Electricity saving rate | 30% |
Infrared normal direction radiant rate | 94% |
Peak Wavelength | 1-2um |
Response Time | 1s |
Electric heat transformation rate | >98% |
Operating temperature | less than 1800 C |
Filament Temp.°C | 1100 -2600 |
Color temperature | 2450 |
Product show

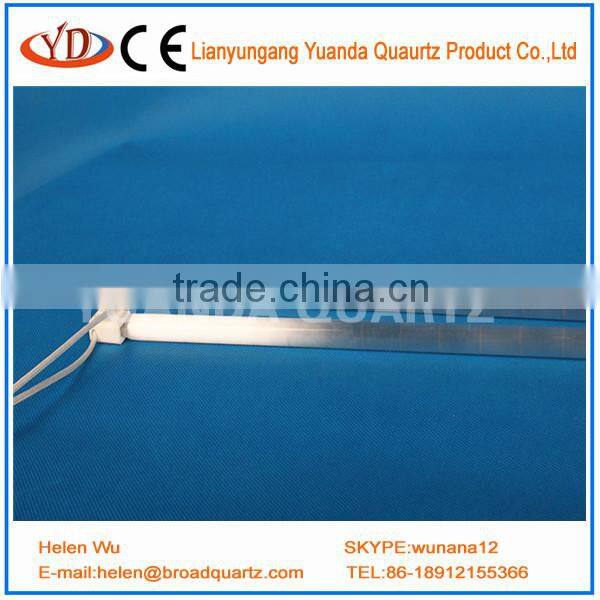

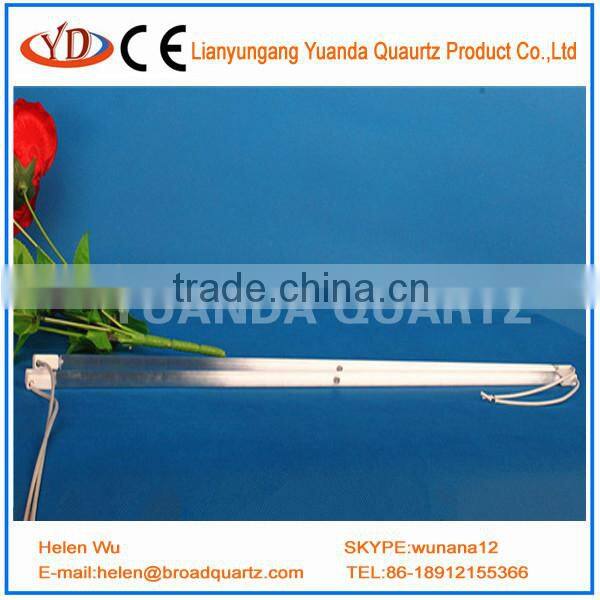

Infrared heat lamp
Material
GENERAL INDUSTRIAL COLOUR TEMPERATURE 2450K
Type | Wattage(W) | Voltage(V) | Max overall length(mm) | Heating length(mm) | Cap/base | Finish | Burning Position | Lamp life 50%(h) |
13169X | 500 | 120 | 241.0 | 142.0 | X | CLEAR | P15 | 5000 |
13169X/98 | 500 | 120 | 241.0 | 142.0 | X | REFLECTOR | P15 | 5000 |
500T3 | 500 | 120 | 223.8 | 127.0 | u | TRANSLUCENT | P15 | 5000 |
13169Z | 500 | 235 | 227.5 | 165.0 | SK15 | CLEAR | P15 | 5000 |
13169Z/98 | 500 | 235 | 227.5 | 165.0 | SK15 | REFLECTOR | P15 | 5000 |
13842Z | 700 | 240 | 2130 | 150.0 | SK15 | CLEAR | P15 | 5000 |
13195Z/98 | 1000 | 235V | 357.5 | 272.0 | SK15 | REFLECTOR | P15 | 5000 |
13195X | 1000 | 235 | 370.0 | 272.0 | X | CLEAR | P15 | 5000 |
13195X/98 | 1000 | 235V | 370.0 | 272.0 | X | REFLECTOR | P15 | 5000 |
13713X | 1000 | 235 | 370.0 | 272.0 | X | CLEAR | UNIVERSAL | 5000 |
13713X/98 | 1000 | 235 | 370.0 | 272.0 | X | REFLECTOR | UNIVERSAL | 5000 |
13713Z/98 | 1000 | 235 | 357.5 | 272.0 | SK15 | REFLECTOR | UNIVERSAL | 5000 |
1000T3 | 1000 | 240 | 351.0 | 254.0 | U | TRANSLUCENT | P15 | 5000 |
13561Y/100 | 1200 | 144 | 222.5 | 155.0 | Y | CLEAR | P15 | 5000 |
13561Y/98 | 1200 | 144 | 222.5 | 155.0 | Y | REFLECTOR | P15 | 5000 |
13568Y/00 | 1600 | 144 | 222.5 | 155.0 | Y | CLEAR | P15 | 5000 |
13568Y/98 | 1600 | 144 | 222.5 | 155.0 | Y | RELFECTOR | P15 | 5000 |
1600T3 | 1600 | 240 | 503.0 | 406.0 | U | TRANSLUCENT | P15 | 5000 |
1600T3/CL | 1600 | 240 | 503.0 | 406.0 | U | CLEAR | P15 | 5000 |
Production detail
IR Application Area
n Paint drying
n Pre-heating of PET perform
n Silicon wafer process in semiconductor.
n Drying process in paper mill
n Plactics thermoforming
n Fusing printing ink
n And various kind of drying processes
Attention about use matters.
1.Preferably do't touch quartz with bare hands. |
2.Prolonged looking atthe lamp during operation may result in damage to the eye. |
3.Keep dry. |
SERVICE
1.Reply you soon. 2.Customize size are welcome,OEM and ODM are welcome. |
3.Sample Policy:We can offer free samples ,just carriage paid by buyers. |
4.Delivery the goods to our customers with speed and precision. |
5.Payment:T/T (If amount >1000USD,30% deposit in advance,70% before shipment);Paypal ; L/C at sight ; Escrow ; One Touch
|
