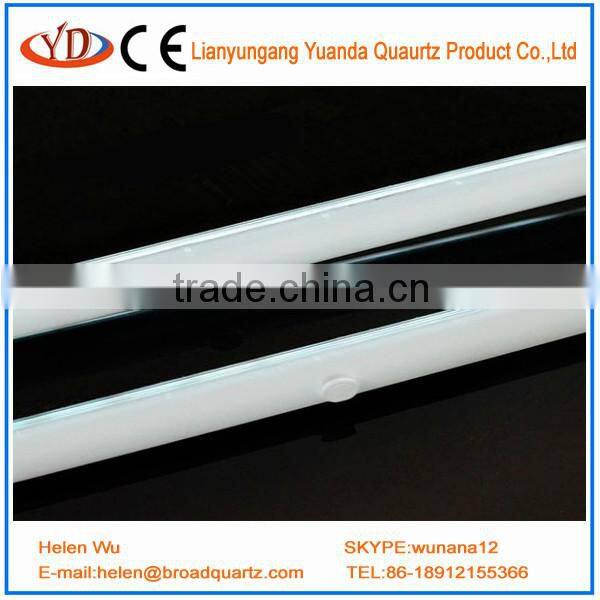

Quartz Infrared Heating Element Electric Heating Element
- shanghai lianyungang qingdao
- T/T Credit Card PayPal
You May Like
-
White Reflective Infrared Lamp Heating Element
-
White Reflecter Infrared Heat Lamps for Paint Drying 2000W
-
Quartz Shortwave Infrared Paint Curing Lamp
-
Single Tube Shortwave Infrared Paint Curing Lamp
-
Single Tube Shortwave Infrared Paint Curing Lamp 2000W
-
Single Tube Shortwave Infrared Paint Curing Lamp and Quartz Led Lamp
Product Details
| Place of Origin | Jiangsu, China | Brand Name | YD | |
| Model Number | YD02 | Color | White | |
| Specification | 9004 | Material | Other, quartz glass | |
| Certification | CE |
Product Description
Specifications
quartz infrared heating elements1.More effective reflective layer saves energy
2.Quick heating speed
3.More match IR
White reflecter infrared heat lamps for paint drying
Technical Parameters
VOLT | 100, 110, 120, 220, 230, 240 V |
POWER | 500 -4000W |
HZ | 50-60 HZ |
Electricity saving rate | 30% |
Infrared normal direction radiant rate | 94% |
Peak Wavelength | 1-2um |
Response Time | 1s |
Electric heat transformation rate | >98% |
Operating temperature | less than 1800 C |
Filament Temp.°C | 1100 -2600 |
Color temperature | 2450k |
INFRARED TECH
IR Benefits and Features
Long life | More than 5000h |
High Speed | within 1 second to switch on |
High efficiency | more than 85% heat efficiency of full power |
High power density | up to 200w/cm |
High control ability | neither ballast nor special circuits are necessary for basic usage |
No air droughts | because of radiation(like solar energy) |
Clean and odorless | no risk of contamination over environment or target object to be heated |
Extensive assortment | many types of voltage,wattage,length,base,cables,universalburning position is available |
Flexible | special lamp designing service on demand is available |
Product show

Type
01.Golden Quartz Halogen Elements |
02.Clear Quartz Halogen Elements |
03.Quartz Heating Elements |
04.Twin Quartz Heating Elements |
05.Special Shape :U /OMEGA/PEAR/ROCKET etc |
We can do according your drawing.
Production detail

IR Application Area
01.Paint drying |
02.PET bottle blowing and laminating |
03.Paper drying |
04.Wood drying and preheating before painting |
05.Plastic softening and synthesis cable production |
06.Industrial production oven |
07.Car painting |
08.High temperature disinfection |
Attention about use matters.
1.Preferably do't touch quartz with bare hands. |
2.Disconnect installation from power supply before removing or installing a lamp.Prolonged looking at the lamp during operation may result in damage to the eye. |
3.Keep dry. |
Packaging: 5 pieces in bubble then wooden box outside. or we can do package according to your design.
Shipping: By sea or by air when the weight is heavy, Usually fast deliver by DHL/FEDEX/ TNT/UPS
SERVICE
1.Reply you soon. 2.Customize size are welcome,OEM and ODM are welcome. |
3.Sample Policy:We can offer free samples ,just carriage paid by buyers. |
4.Delivery the goods to our customers with speed and precision. |
5.Payment:T/T (If amount >1000USD,30% deposit in advance,70% before shipment);Paypal ; L/C at sight ; Escrow ; One Touch
|
