Manufacturers 10kv 630a Vacuum Circuit Breaker Controller High Quality
- Ningbo/Shanghai
- T/T D/P D/A Credit Card PayPal
You May Like
-
China Manufacturers Safe Outdoor Vacuum Circuit Breaker Isolation 10kv
-
220V Outdoor Vacuum Circuit Breaker Isolation 10kv High Quality
-
Box-type Transformer Outdoor Electrical Substation
-
Outdoor 10KV Electric Transformer Combination Transformer
-
High Quality Outdoor 10KV Power Transformer Box-type Substation Price
-
Outdoor Box-type Substation Combination Transformer 10KV
Product Details
| Place of Origin | Sichuan, China | Brand Name | COLE | |
| Model Number | ZW32 | Usage | Power | |
| Phase | Three | Coil Structure | Toroidal | |
| Coil Number | Autotransformer |
Product Description
Cole Electric Manufacturing Factory
1.Product introduction
ZW32-12 /630 - outdoor ac high voltage vacuum circuit breaker for a period of 12 kv, rated voltage of the three-phase ac 50 hz outdoor distribution equipment. Is mainly used to open and close of electric power system load current, overload current and short circuit current. Suitable for transformer substation and industrial and mining enterprises for protection and control in power distribution system, and the site of rural power grid frequent operation. As a grid section switch, after adding the controller, which can realize distribution network automation.

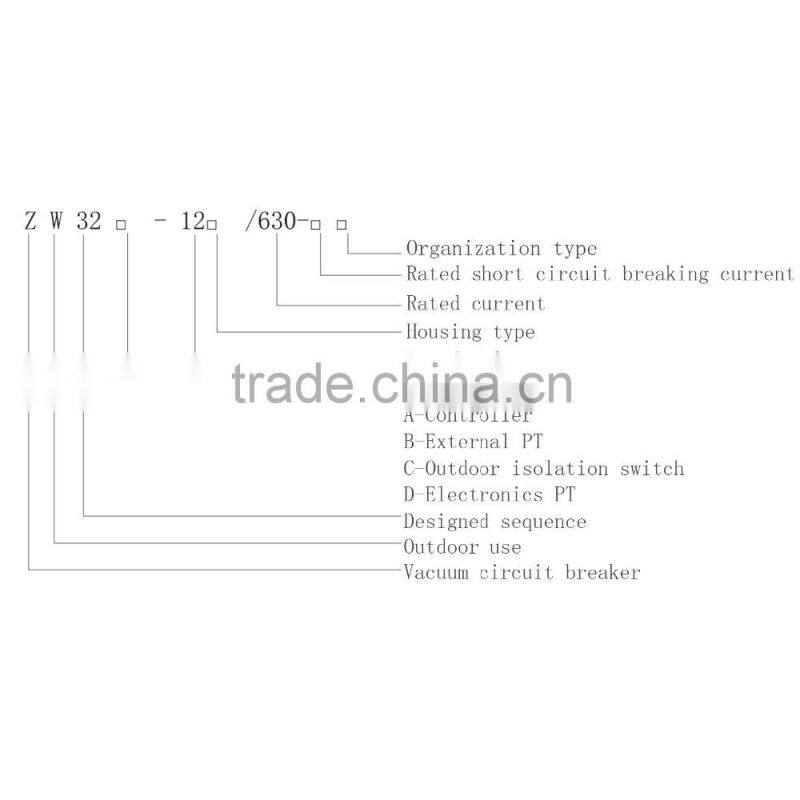

2.ZW32-12 /630 - meaning
3.Product advantages
1.Pillar structure, circuit breaker, the base and used for installation, fixed and moved (hanging) using the suspension of three parts.
2.Equipped with vacuum arcing chamber on the column of vacuum circuit breaker open circuit performance is stable and reliable, with no burning and explosion danger, safety, free maintenance, small volume, light weight and long service life.
3.Circuit breaker adopts closed, sealed performance is good, moistureproof, prevent condensation performance, suitable for high temperature and humidity area to use
4.Breaker points, closing can be manually or electrically operated. Also remote control
5. The operating mechanism is novel, simple, reliable operation, small size, mechanical life of up to 10,000 times, charging motor DC permanent magnet motor, the voltage rating of --220V, - 110V, - 48V, - 24V optionally one kind
4.Using conditions
The altitude:<2000m
Non-flammable, explosive Workplace Hazardous chemical corrosion and severe vibration
Ambient temperature:
Highest air temperature +40 °C
Lowest air temperature -25°C
Highest daily average air temperature +30 °C
Highest annual average air temperature +20 °

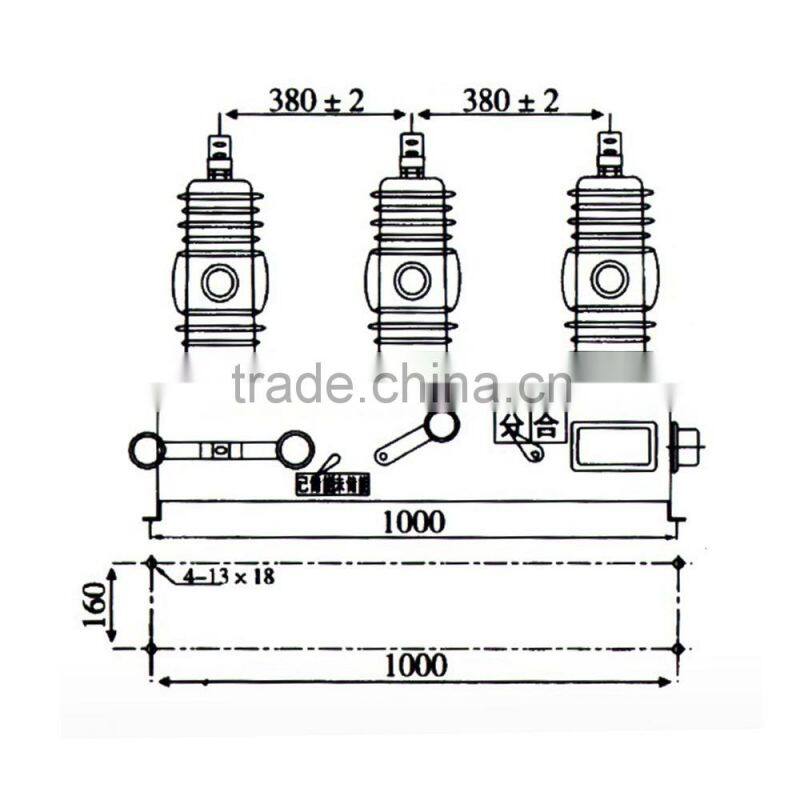

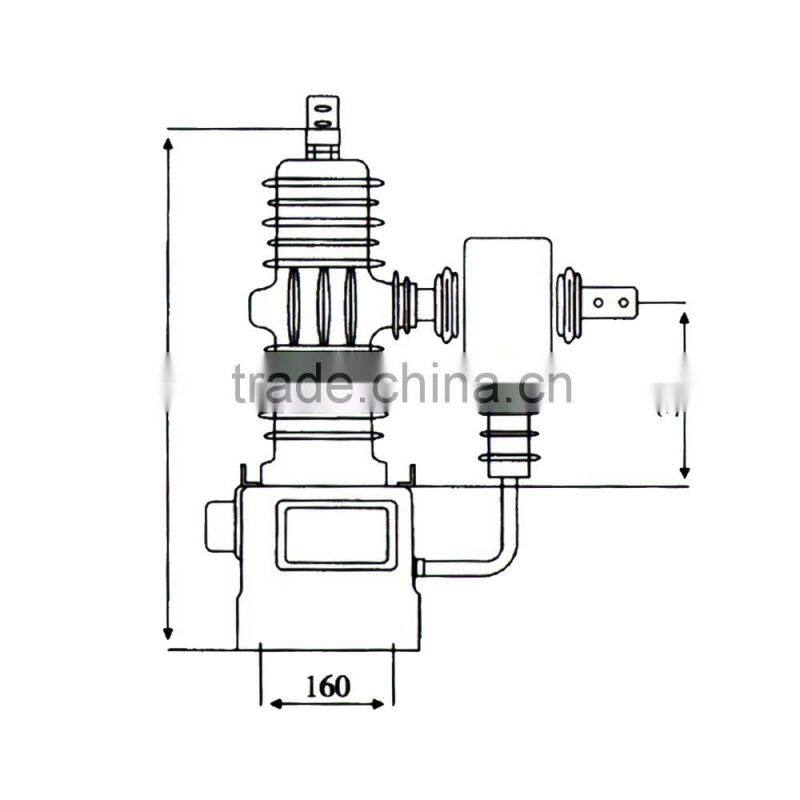

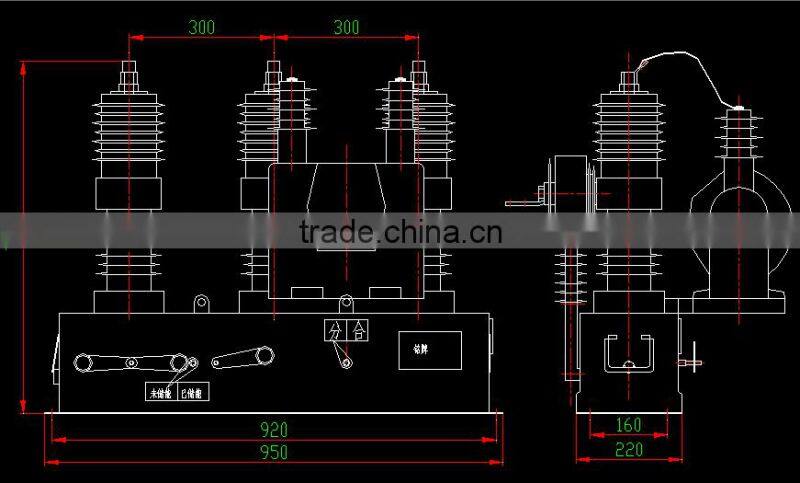

5.Product Dimension
Mian Product
More Products To Choose
Brief Introduction
Cole Electric Manufacturing Factory Located in the chengdu cross-strait science and technology industrial development park,Sichuang Province ,With its inception in 2003,Company is mainly specialized in design, development, production, sales below 35 kv level combined transformer, 10 kv power transformer, outdoor vacuum switch and the combined substation as one camp in the name of the company.
